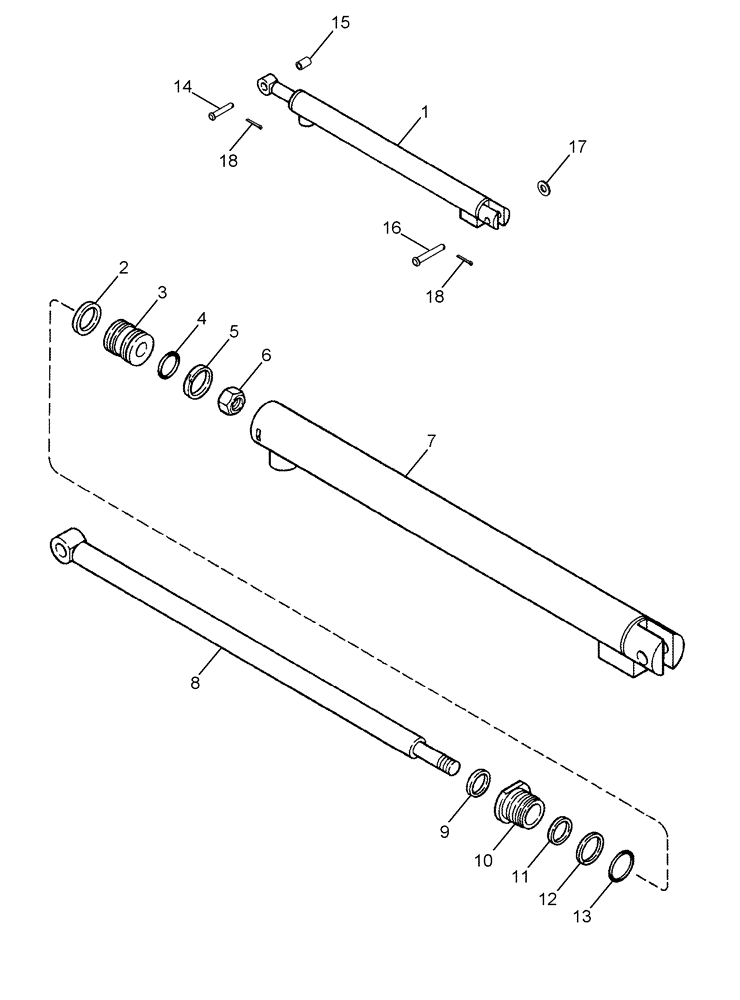

Запчасти Case IH 420 TIER 3 (08-31) - BASKET COMPACTOR CYLINDER ASSEMBLY (07) - HYDRAULICS

1

1343726C3

CYLINDER ASSY.,Double Acting, 25.3mm Rod, 501.3mm Stroke

Basket Compactor, 38 ID x 501 mm strk, Inc. 2 - 13

2шт.

2

NSS

NOT SOLD SEPARAT

SEAL

1шт.

3

92608C1

PISTON

Cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

387426A1

NUT

5/8 NF

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE, Cylinder

1шт.

8

1285720C1

ROD

1шт.

9

532773R1

WIPER SEAL

Piston Rod

1шт.

10

1343723C1

GLAND

1шт.

11

389500A1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

1шт.

12

NSS

NOT SOLD SEPARAT

RING, Backup

1шт.

13

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1шт.

14

1338702C2

CLEVIS PIN,15.87mm OD x 94.5mm L

1шт.

15

627389R1

SPACER,16.7mm ID x 22.23mm OD x 22.2mm L

1шт.

16

1338701C2

CLEVIS PIN,15.87mm OD x 63mm L

1шт.

17

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

18

432-1216

COTTER PIN,3/16" x 1"

2шт.

92611C3

SEAL KIT

Inc. 2, 4, 5, 9, 11 - 13

1шт.
