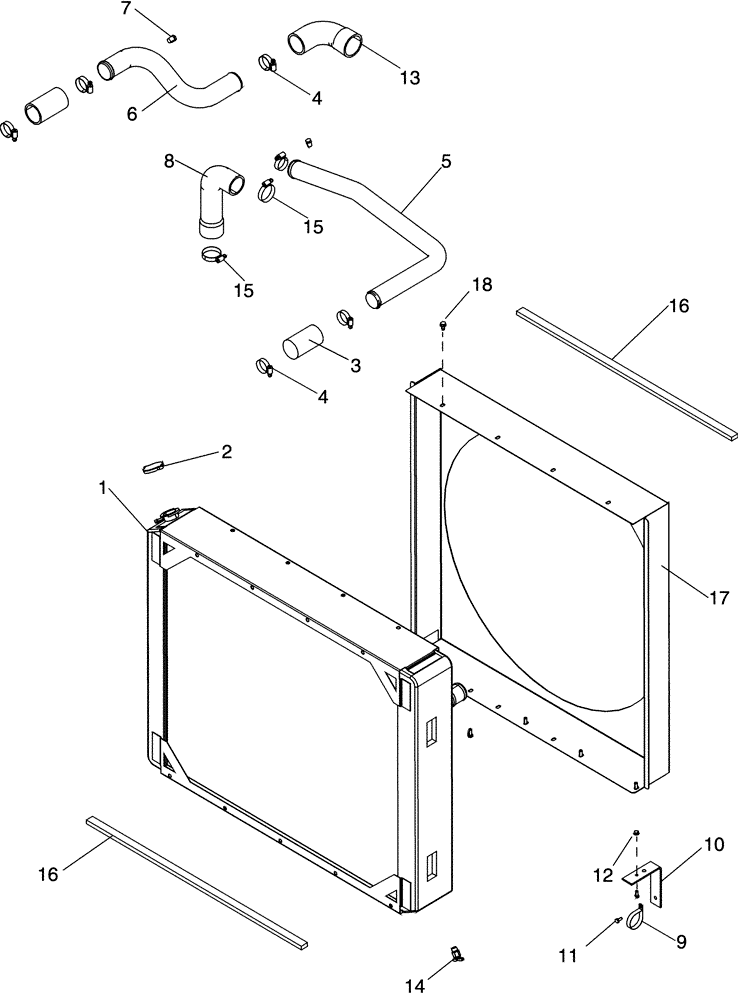

Запчасти Case IH 420 TIER 3 (02-01) - RADIATOR - FAN SHROUD (01) - ENGINE

1

194560A2

RADIATOR

1шт.

2

400586R1

RADIATOR CAP

1шт.

3

1329393C1

RADIATOR HOSE,50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

2шт.

4

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

6шт.

5

1338670C2

TUBE,605, 50 mm Length

Outlet, Upper

1шт.

6

87696498

TUBE,2" OD

Inlet, Lower

1шт.

7

217-86

PLUG,Hex Hd, 1/4"-18, Brass

2шт.

8

87696500

RADIATOR HOSE,50.80 mm ID, 57.15 mm ID x 216.60 mm, SAE 20R4 Class D1

Outlet, Upper

1шт.

9

515-26508

CLAMP,2", 1/4" Bolt

1шт.

10

189892A3

SUPPORT TUBE,38.1 mm OD, 145, 120 mm Length

2шт.

11

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

13

87696499

RADIATOR HOSE,50.80 mm ID, 57.20 mm ID x 111.60 mm, SAE 20R4 Class D1

Lower

1шт.

14

86982771

VALVE

Drain Cock, 1/4 Taper Pipe Thd

1шт.

15

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

2шт.

16

233394A1

GASKET

864 mm (34"), Cut From 87084C1

2шт.

17

87682362

SHROUD

1шт.

18

281-10810

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

4шт.
