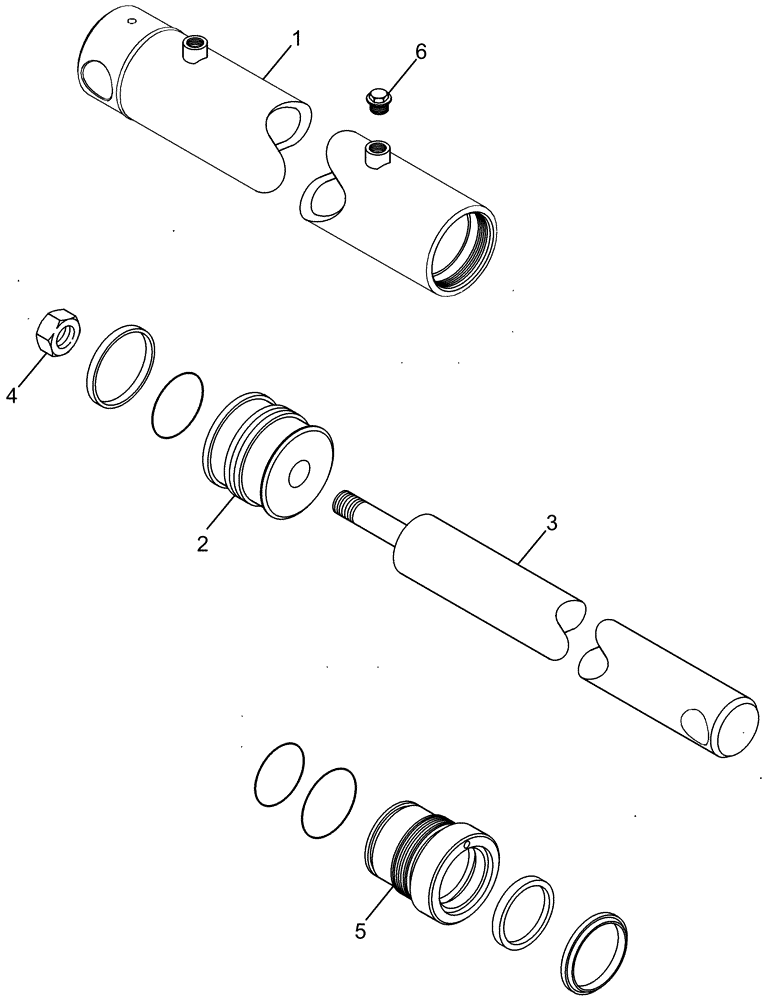

Запчасти Case IH 420 TIER 3 (08-29) - BASKET LIFT MASTER CYLINDER ASSEMBLY (07) - HYDRAULICS

87272660

CYLINDER,Double Acting, 63.4mm Rod, 1828.8mm Stroke

Basket Lift, Inc. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON

1шт.

3

87384991

ROD

1шт.

4

NSS

NOT SOLD SEPARAT

NUT, Lock

1шт.

5

NSS

NOT SOLD SEPARAT

HEAD

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG

2шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

RING, Wear

2шт.

9

NSS

NOT SOLD SEPARAT

WASHER, Back-Up

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

RING, Wear

2шт.

13

NSS

NOT SOLD SEPARAT

ROD, Seal, Loaded

1шт.

14

NSS

NOT SOLD SEPARAT

ROD, Canned, Wiper

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL

1шт.

87384984

SEAL KIT

Kit

1шт.
