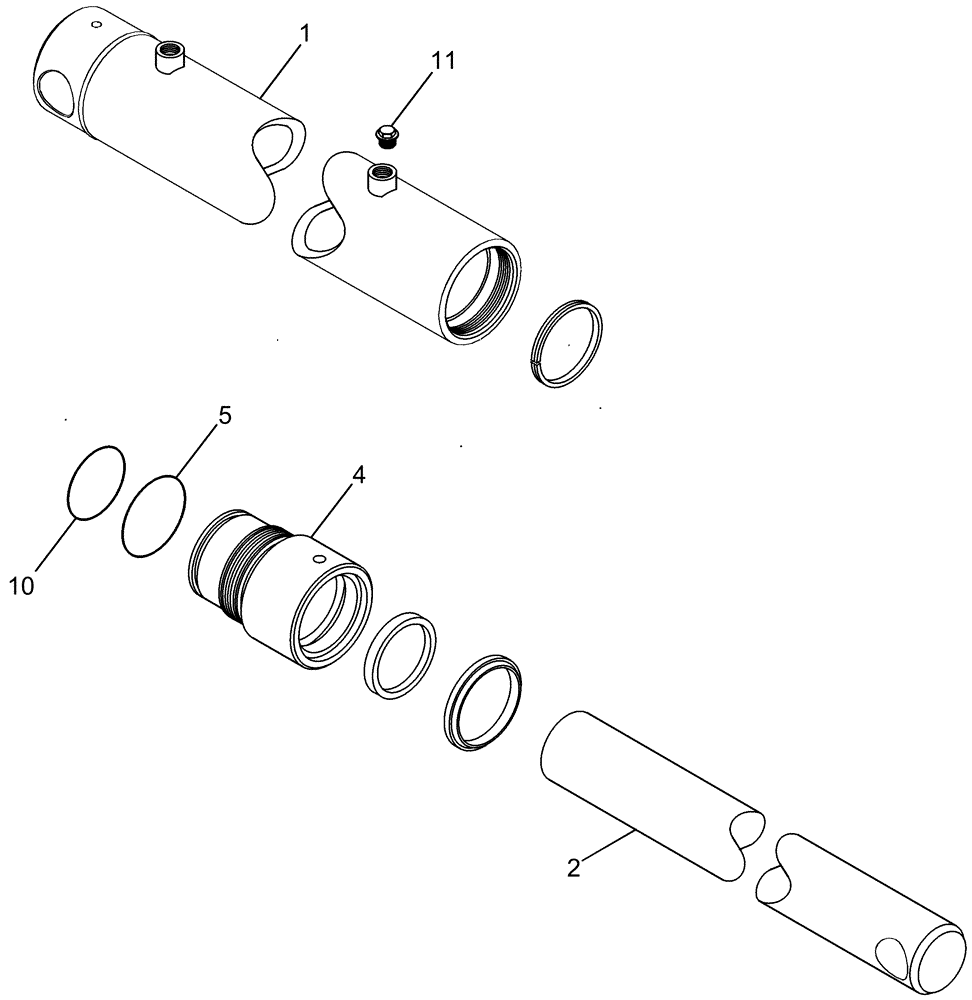

Запчасти Case IH 420 TIER 3 (08-28) - BASKET LIFT SLAVE CYLINDER ASSEMBLY (07) - HYDRAULICS

87272661

CYLINDER,Double Acting, 63.5mm Rod, 1828.8mm Stroke

Basket Lift, Inc.1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

87385482

ROD

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON, Washer

1шт.

4

NSS

NOT SOLD SEPARAT

HEAD

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

Washer, Back-Up

1шт.

7

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL, Rod, Un-Loaded

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper, Rod, Canned

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG

2шт.

87384985

SEAL KIT

Kit

1шт.
