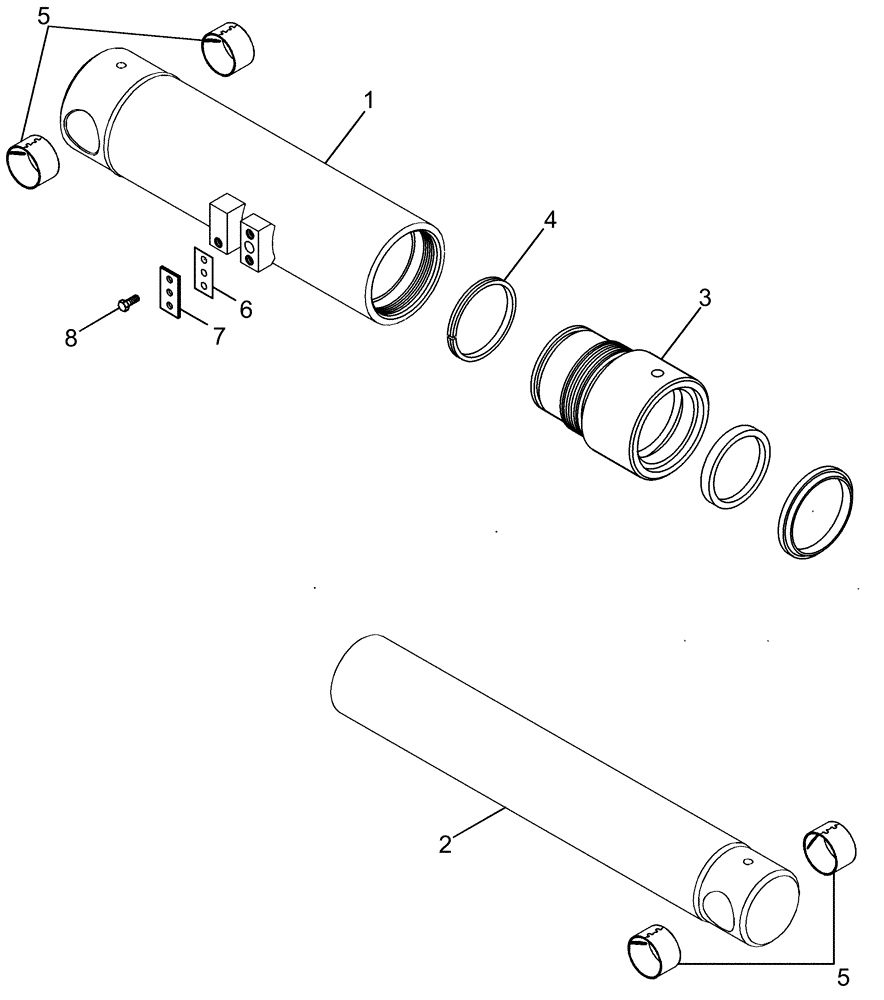

Запчасти Case IH 420 TIER 3 (08-23) - DRUM LIFT CYLINDER ASSEMBLY - 5 ROW NARROW (07) - HYDRAULICS

87272663

HYDRAULIC CYLINDER,88.9mm Rod, 271.5mm Stroke

CYLINDER, Drum Lift, 98 ID x 272 mm strk, Inc. 1 - 8

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

2

87385483

ROD

1шт.

3

NSS

NOT SOLD SEPARAT

HEAD

1шт.

4

NSS

NOT SOLD SEPARAT

SPLIT PISTON WASHER

1шт.

5

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

4шт.

6

NSS

NOT SOLD SEPARAT

RUBBER COVER

1шт.

7

NSS

NOT SOLD SEPARAT

STEEL COVER

1шт.

8

NSS

NOT SOLD SEPARAT

BOLT

3шт.

1980307C1

SEAL KIT

1шт.
