(04-19[01]) - ALTERNATOR FILTER AND SUPPORT, REQUIRED FOR SPARK ARRESTER EXHAUST

Запчасти Case IH 420 TIER 3 (04-19[01]) - ALTERNATOR FILTER AND SUPPORT, REQUIRED FOR SPARK ARRESTER EXHAUST (06) - ELECTRICAL SYSTEMS

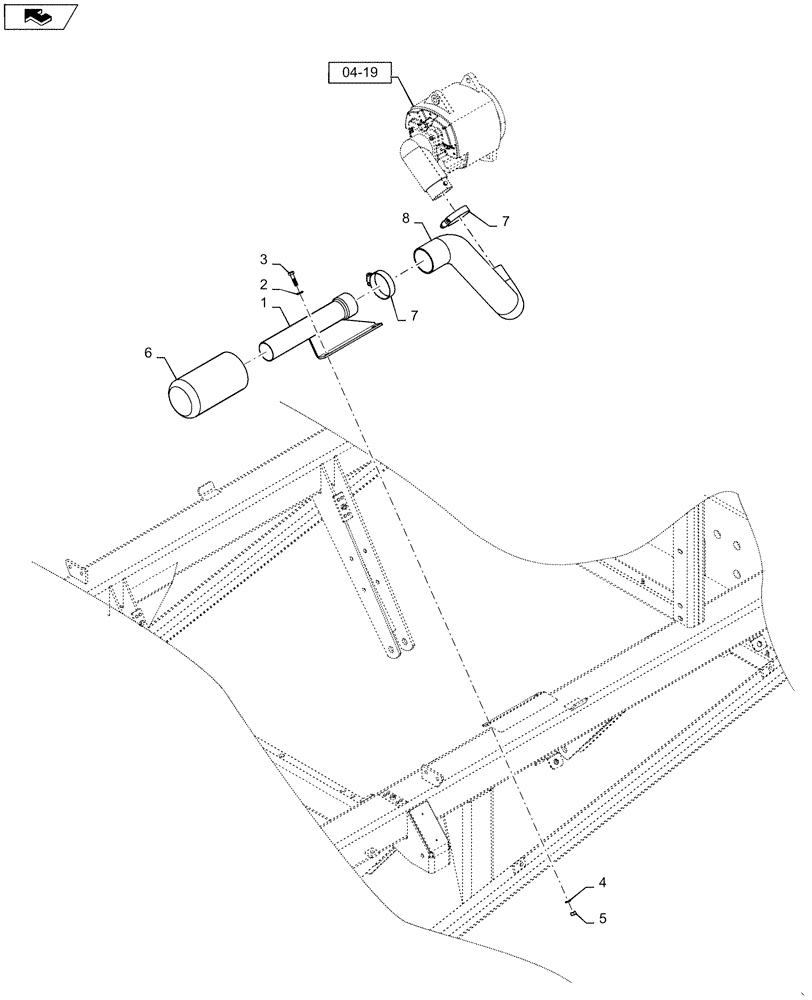

Схема запчастей Case IH 420 TIER 3 - (04-19[01]) - ALTERNATOR FILTER AND SUPPORT, REQUIRED FOR SPARK ARRESTER EXHAUST (06) - ELECTRICAL SYSTEMS
5
4
1
2
04-19
home
3
7
8
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1338707C1

SUPPORT

Alternator Tube

1шт.

2

495-11034

WASHER,5/16", SAE

2шт.

3

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

4

492-11031

LOCK WASHER,5/16"

2шт.

5

425-105

NUT,5/16"-18, G5

2шт.

6

353411R92

FILTER ASSY

Alternator

1шт.

7

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

2шт.

8

47455619

AIR HOSE

Alternator Supply

1шт.

Выбрано товаров: 8
