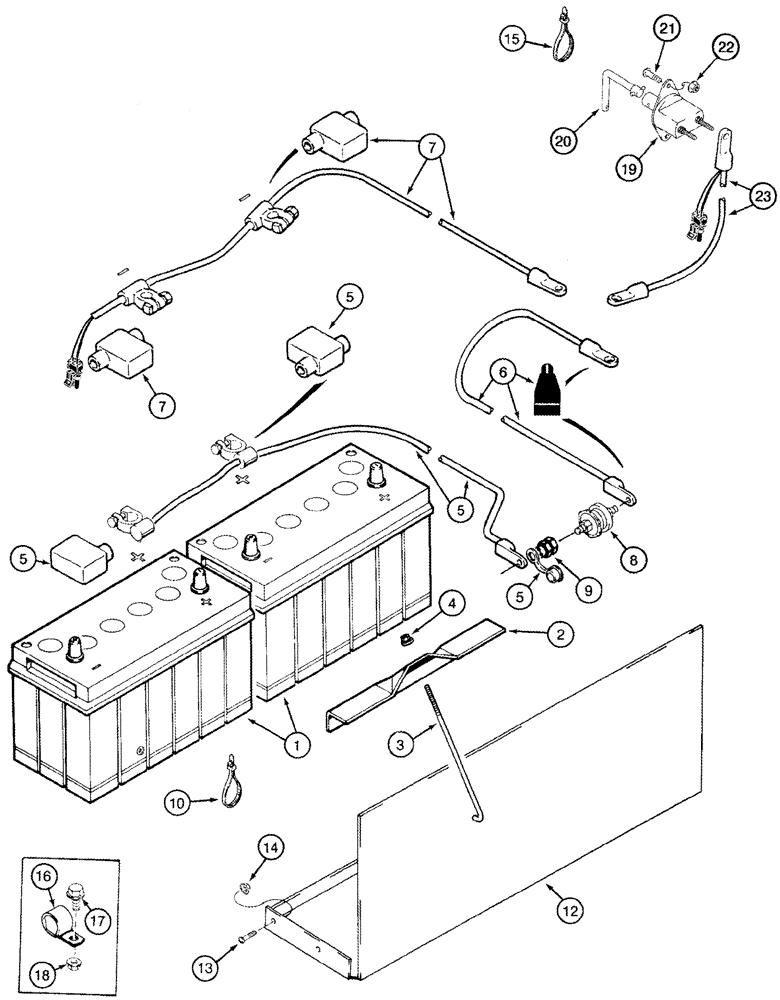

Запчасти Case IH 420 TIER 3 (04-16) - BATTERY AND BATTERY CABLES (06) - ELECTRICAL SYSTEMS

1

A187592

WET BATTERY

12V

2шт.

2

84207413

CLAMP

1шт.

3

A147915

BOLT

1шт.

4

425-104

NUT,1/4"-20, Cl 5

1шт.

5

235231A1

CABLE

Positive, Battery To Battery, To Junction Block, Inc. 2 Red Boots

1шт.

6

87393928

CABLE

Positive

1шт.

7

235850A1

CABLE

Negative, Battery To Battery, To Ground, Includes 2 Black Boots, Inc. Conduit

1шт.

8

190158A1

BLOCK

Positive Cable, Cable Junction

1шт.

9

190794A1

NUT

Jump Start

1шт.

10

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

12

137291A2

SUPPORT

Battery Box

1шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

1шт.

16

515-23254

CLAMP,1", Insul, 3/8" Bolt

5шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

19

84004375

BATTERY CUT-OUT

Battery Disconnect, If Equipped, Inc. 20

1шт.

20

291841A1

KEY

If Equipped

1шт.

21

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

6шт.

22

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

23

278044A1

CABLE

350 mm (13-3/4"), Battery Disconnect, If Equipped

1шт.
