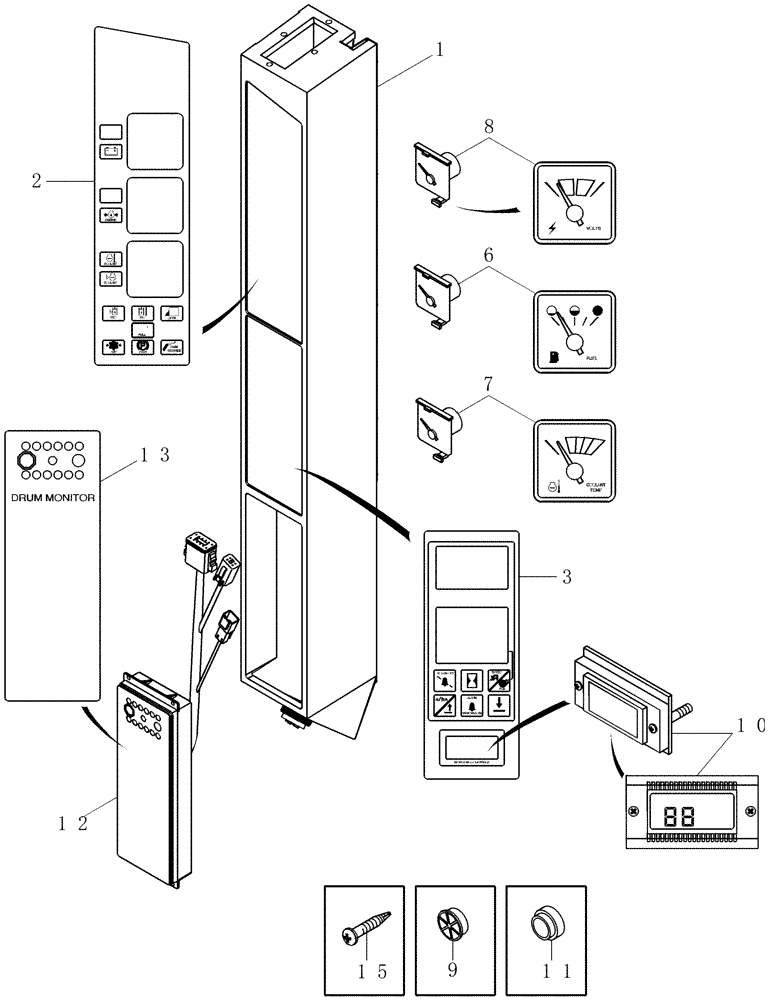

Запчасти Case IH 420 TIER 3 (04-14) - INSTRUMENT PANEL ASSY (06) - ELECTRICAL SYSTEMS

87726161

TOWER

INSTRUMENT PANEL ASSY, Not Available As An Assembly, Inc. 1 - 13

1шт.

1

87732340

TOWER

Inc. 1 - 11

1шт.

2

238211A1

DECAL

Gauge And Warning

1шт.

3

123720A1

DECAL

Keypad

1шт.

4

A48888

BULB

Pkg of 10, Panel Display (Not Shown)

1шт.

5

121615A1

LAMP SOCKET

Inc. Bulb (Not Shown)

1шт.

6

142825A1

FUEL GAUGE

Level

1шт.

7

142824A1

GAUGE

Coolant Temperature

1шт.

8

142828A1

VOLTMETER

1шт.

9

195359A1

SHUTTER

Audible Warning Alarm

1шт.

10

123715A1

DISPLAY

Moistener Pressure

1шт.

11

1546441C1

BUZZER

Audible

1шт.

12

87421944

DRUM

Cotton Display, Inc. 13

1шт.

13

87424836

DECAL

Drum Monitor

1шт.

14

R53000

GROMMET

(Not Shown)

2шт.

15

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

2шт.
