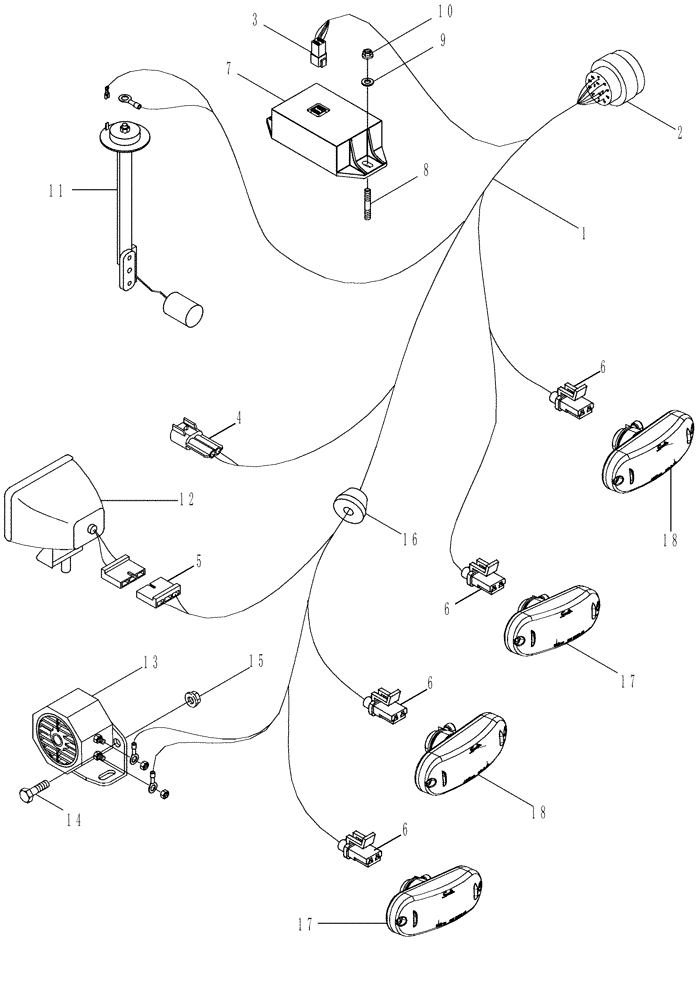

Запчасти Case IH 420 (04-11A) - HARNESS - REAR - MODEL YEAR 2009 AND AFTER (06) - ELECTRICAL SYSTEMS

1

84171222

WIRE HARNESS

1шт.

2

225237C1

ELEC CONNECTOR,Female, 14 Pin

Center-To-Rear Harness

1шт.

3

225351C1

ELEC CONNECTOR,Female, 6 Pin

Lighting Interface Module

1шт.

4

182068A1

CONNECTOR, ELEC

CONNECTOR Battery Clean Ground

1шт.

5

225152C1

ELEC CONNECTOR

Rear Flood Light

1шт.

6

87688716

ELEC CONNECTOR,Female, 3 Cavities

Warning Lights, Tail Lights

4шт.

7

86561136

MODULE

Flasher, North and South America Only

1шт.

8

NSS

NOT SOLD SEPARAT

STUD No. 10 x 5/8

2шт.

9

495-31022

WASHER,#10

2шт.

10

231-52409

FLANGE NUT,Flg, USR, #10-32

2шт.

11

121810C1

ELECTRICAL GAUGE

Fuel Level

1шт.

12

284718A1

LAMP,Halogen, 12V, 35W, Clear

35W, Rear, Inc. 19

1шт.

See Figure 04-25

1шт.

13

325258A1

ALARM

Backup Alarm and Basket Lower

1шт.

14

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

2шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

16

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2 ID

2шт.

17

87627854

LIGHT ASSY.,12V, 27W, Red

Stop And Tail

2шт.

See Figure 04-24

1шт.

18

87629587

LIGHT ASSY.,12V, 27W, Amber

Rear, Warning

2шт.

See Figure 04-24

1шт.

19

139119A1

BULB,#886, 12V, 50W

(Not Shown)

1шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

(19 mm) (Not Shown)

13шт.

21

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

(9.5 mm) (Not Shown)

2шт.

22

515-23254

CLAMP,1", Insul, 3/8" Bolt

12 mm (Not Shown)

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

(Not Shown)

9шт.

24

86511924

SCREW,Pan, #10 - 24 x 1 1/4"

(Not Shown)

8шт.
