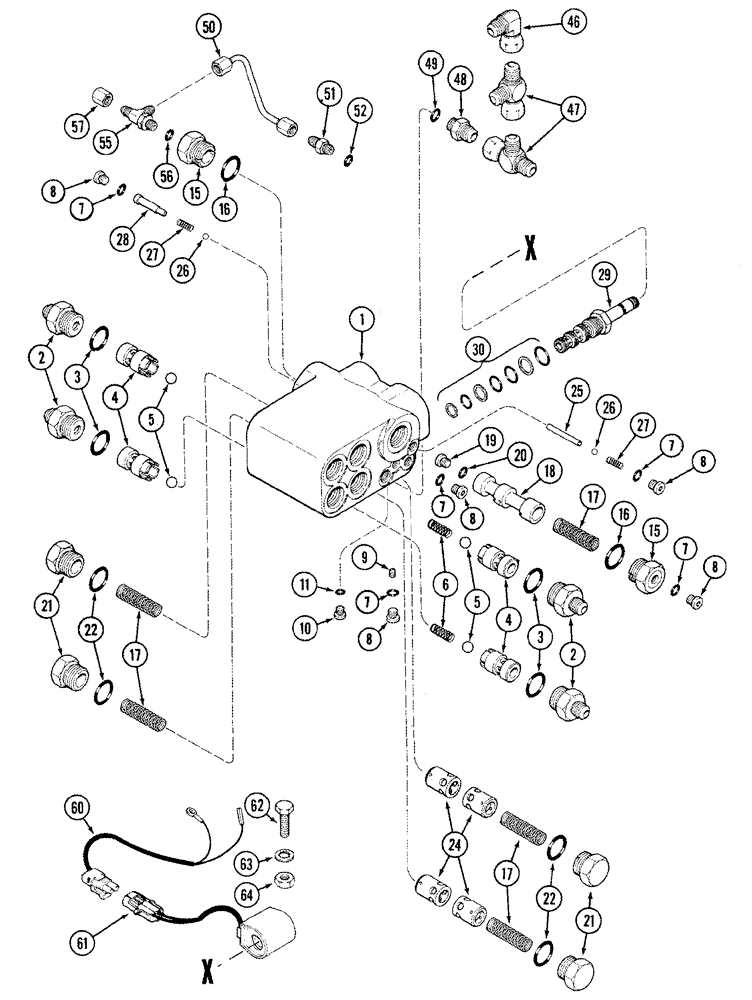

Запчасти Case IH 420 (05-16) - SELECTOR VALVE ASSY (04) - STEERING
№
Артикул
Название
Примечание
Количество
1347194C1
VALVE
Selector, Inc. 1 - 30, 60 - 64
1шт.
1
NSS
NOT SOLD SEPARAT
BODY
1шт.
2
218-5070
HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB
Incl. 3
4шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
4
NSS
NOT SOLD SEPARAT
SEAT
4шт.
5
NSS
NOT SOLD SEPARAT
BALL
4шт.
6
NSS
NOT SOLD SEPARAT
SPRING
2шт.
7
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
7шт.
8
278548
PLUG,Hex, 7/16"-20 ORB
Incl 7
6шт.
9
NSS
NOT SOLD SEPARAT
PLUG, 1/16 PT, Orifice
1шт.
10
218-5151
PLUG,Hex Hd, 5/16"-24 ORB
Inc. 11
1шт.
11
237-6002
O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro
1шт.
15
1970176C1
PLUG
Special, Inc. 16
2шт.
16
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
2шт.
17
NSS
NOT SOLD SEPARAT
SPRING
5шт.
18
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
19
NSS
NOT SOLD SEPARAT
PLUG, Orifice
1шт.
20
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
21
1979118C1
PLUG
Special, Inc. 22
4шт.
22
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
4шт.
24
NSS
NOT SOLD SEPARAT
SPOOL
4шт.
25
NSS
NOT SOLD SEPARAT
PIN
1шт.
26
211-1010
BALL,5/16" OD
2шт.
27
NSS
NOT SOLD SEPARAT
SPRING
2шт.
28
NSS
NOT SOLD SEPARAT
SPACER
1шт.
29
187849C1
SOLENOID VALVE
4-Way, Inc. 30
1шт.
30
187850C1
SEAL KIT
1шт.
46
218-5230
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw
1шт.
47
218-845
TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run
2шт.
48
218-5351
HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring
Inc. 49
1шт.
49
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
50
1970140C1
TUBE,4.78 mm ID
Charge Pressure
1шт.
51
218-5053
HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB
Incl. 52
1шт.
52
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
55
218-5289
TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB
Inc. 56
1шт.
56
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
57
218-752
CAP,37 Degree, 7/16"-20
1шт.
1345300C1
KIT
Inc. 60 - 64
1шт.
60
1345302C1
WIRE HARNESS
Solenoid
1шт.
61
1340843C1
SOLENOID,12V
12V
1шт.
62
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
63
493-11039
LOCK WASHER,3/8", Int-Ext Tooth
1шт.
64
425-106
NUT,3/8"-16, Cl 5
1шт.
Выбрано товаров: 43
