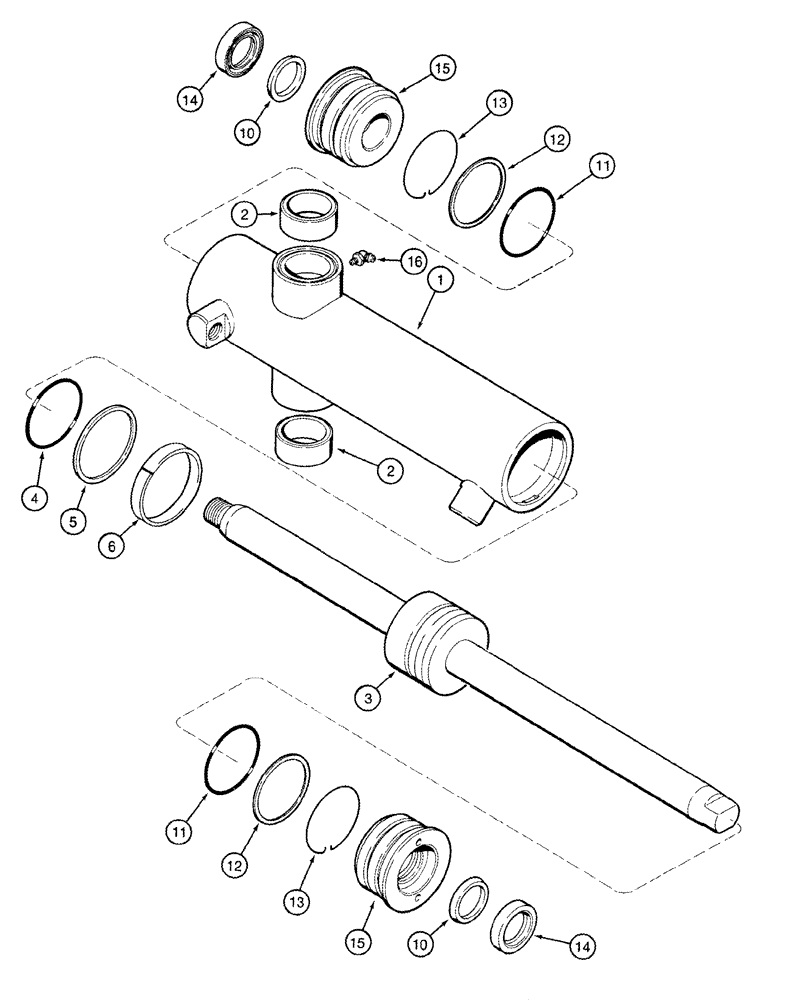

Запчасти Case IH 420 (05-09) - CYLINDER, STEERING (04) - STEERING

93194C9

STEERING CYLINDER,Double Acting, 31.75mm Rod, 246.38mm Stroke

67 ID x 246 mm strk, Inc. 1 - 15

1шт.

93194C9R

REMAN-HYD CYLINDER

420 CASE IH COTTON EXPRESS COTTON PICKER, 67 ID x 246 mm strk (9/06-)

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1

1954124C5

HYD CYL SLEEVE

Inc. 2

1шт.

2

1255304C2

BUSHING,38.2mm ID x 47.69mm OD x 19mm L

2шт.

3

1255306C5

PISTON ROD

Double Groove, If Equipped

1шт.

80448C3

SEAL KIT

Inc. 4 - 14

1шт.

4

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

5

1255309C1

SEAL,61.19mm ID x 67.28mm OD x 2.92mm Thk

Piston

1шт.

6

111829A1

PISTON RING

1шт.

10

1976944C1

SEAL

Piston Rod

2шт.

11

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

12

1255311C1

WASHER

2шт.

13

1255312C1

RETAINING WIRE

205 mm (8-1/16"), Retaining, Cut From 140600C1

2шт.

14

D95141

WIPER SEAL

2шт.

15

1255310C1

HEAD (CYLINDER)

2шт.

16

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

2шт.
