Запчасти Case IH 420 (05-07) - STEERING CYLINDER AND TIE ROD (04) - STEERING

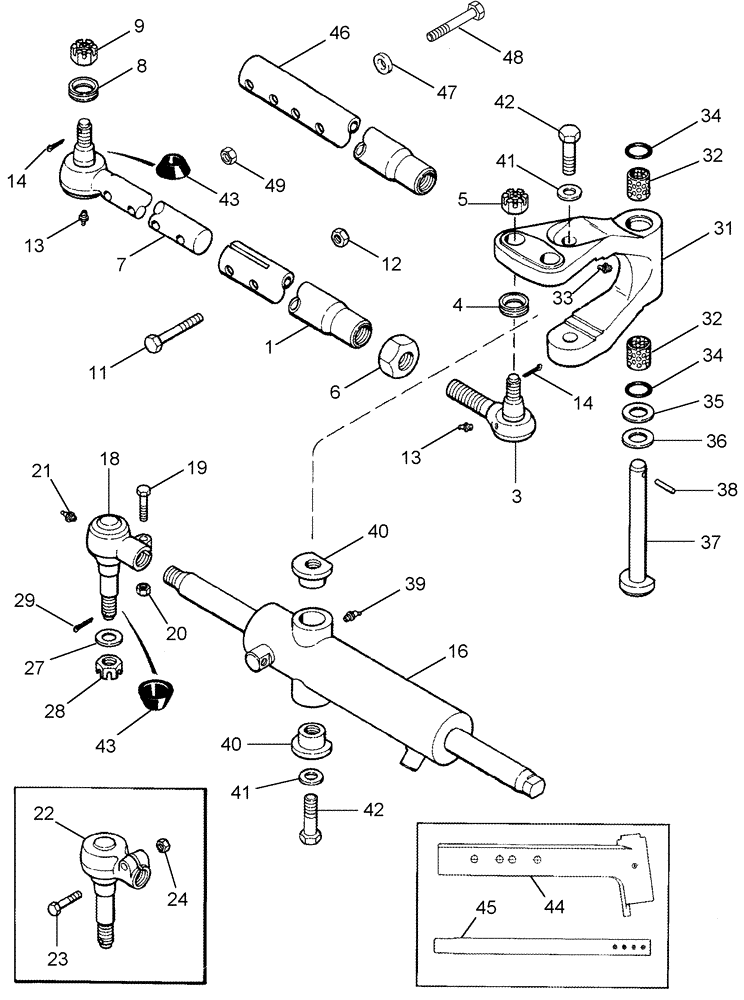

Схема запчастей Case IH 420 - (05-07) - STEERING CYLINDER AND TIE ROD (04) - STEERING
32
49
42
3
11
41
40
27
1
8
24
43
4
29
32
6
7
34
14
21
23
47
12
44
42
13
18
38
28
33
43
20
34
41
37
16
45
14
22
19
31
48
40
9
46
35
13
5
39
36

Артикул

Название

Примечание

Количество

1270788C1

DRAG LINK

Inc. 1 - 13

2шт.

1

1280657C1

TUBE,30.7 - 40 mm ID, 41.2 mm OD, 431.5 mm Length

Standard Axle

1шт.

3

406054A1

BALL JOINT,1-1/8" - 12 x 5"

Inc. 4, 5

1шт.

4

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

1шт.

5

1280660C1

SLOTTED NUT

M20

1шт.

6

1280661C1

NUT

1-1/8"

1шт.

7

406053A1

BALL JOINT

Inc. 8, 9

1шт.

8

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

1шт.

9

1280660C1

SLOTTED NUT

M20

1шт.

10

A145857

CLAMP,9.91mm ID x 25.4mm OD x 7.365mm Thk

Standard Axle

12шт.

11

280458

BOLT,Hex, 3/8" - 24 x 2 3/4", Gr 8

Standard Axle

2шт.

12

232-4606

LOCK NUT,3/8"-24, GC

Standard Axle

2шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

14

80708

COTTER PIN,1/8" x 1 1/2"

4шт.

16

93194C9

STEERING CYLINDER,Double Acting, 31.75mm Rod, 246.38mm Stroke

67 ID x 246 mm strk, Steering

1шт.

See Figure 05-09

1шт.

16

93194C9R

REMAN-HYD CYLINDER

420 CASE IH COTTON EXPRESS COTTON PICKER, 67 ID x 246 mm strk, Steering (9/06-)

1шт.

16

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1280566C2

BALL JOINT

Inc. 18 - 24

1шт.

18

NSS

NOT SOLD SEPARAT

BALL JOINT, Inc. 19 - 21, If Equipped

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

20

131-463

NUT,3/8"-16

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

22

NSS

NOT SOLD SEPARAT

BALL JOINT, Inc. 23, 24, If Equipped

1шт.

23

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

24

232-4117

LOCK NUT,7/16"-14, GC

1шт.

27

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

1шт.

28

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

1шт.

29

281075

COTTER PIN,5/32" x 1 3/4"

1шт.

31

1259579C6

ARM

Center, Inc. 32

1шт.

32

1259581C1

BUSHING,25.43mm ID x 28.6mm OD x 31.8mm L

2шт.

33

219-17

LUBE NIPPLE,3/16" NPTF

1шт.

34

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

35

71421C1

WASHER

1-1/32 x 1-3/4 x 5/32

3шт.

35

87016610

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

5шт.

36

495-81052

WASHER,0.91" ID x 1.25" OD x 0.12" Thk

1шт.

37

1334694C1

PIN,50.8mm OD x 210.05mm L

1шт.

38

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

1шт.

39

219-17

LUBE NIPPLE,3/16" NPTF

1шт.

40

1259582C4

THREADED INSERT

Cylinder

2шт.

41

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

2шт.

42

87404100

SPECIAL BOLT

2шт.

43

250586C1

SEAL

2шт.

44

110493A1

EXTENSION

Axle, Skip Row

1шт.

44

87391278

EXTENSION

Axle, Turkmenistan

2шт.

45

110628A2

TUBE

Tie Rod, Skip Row and Turkmenistan

1шт.

46

110628A2

TUBE

Tie Rod, Power Guide Axle

2шт.

47

238939A1

SPACER

Power Guide Axle

4шт.

48

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Power Guide Axle

4шт.

49

231-4136

LOCK NUT,3/8"-16, GB

Power Guide Axle

4шт.

345-49

SEALANT

1 ml (Not Shown)

1шт.

Выбрано товаров: 51
