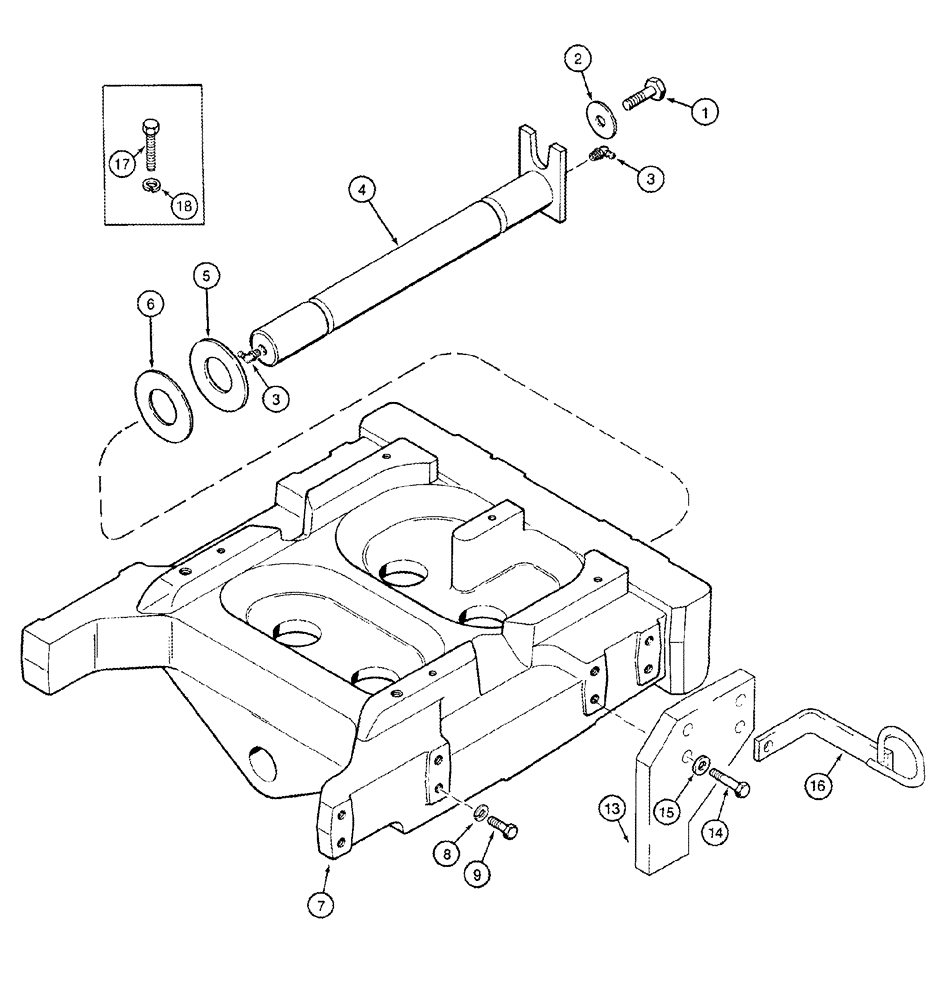

Запчасти Case IH 420 (05-05) - AXLE, REAR - SUPPORT (04) - STEERING

1

805-12030

BOLT,Hex, M12 x 30mm, Cl 10.9

1шт.

2

101936C2

WASHER

1шт.

3

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

2шт.

4

1348230C1

PIVOT PIN,49.95mm OD x 530mm L

1шт.

5

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

2шт.

6

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

1шт.

7

137316A3

SUPPORT ASSY.

1шт.

8

892-16016

LOCK WASHER,M16, Hvy

16шт.

9

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

13

281484A1

LARGE PLATE

PLATE, LARGE Anti Sway, Without Power Guide Axle

2шт.

13

238749A1

LARGE PLATE

PLATE, LARGE Anti Sway, Power Guide Axle

2шт.

14

86577946

BOLT,Hex, M16 x 80mm x 10.9

8шт.

15

892-16016

LOCK WASHER,M16, Hvy

8шт.

16

259687A1

SUPPORT

Rear Hose Guide, Power Guide Axle

1шт.

17

626-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

6шт.

18

892-16020

LOCK WASHER,M20, Hvy

6шт.
