Запчасти Case IH 420 (05-03) - HYDRAULICS - STEERING (04) - STEERING

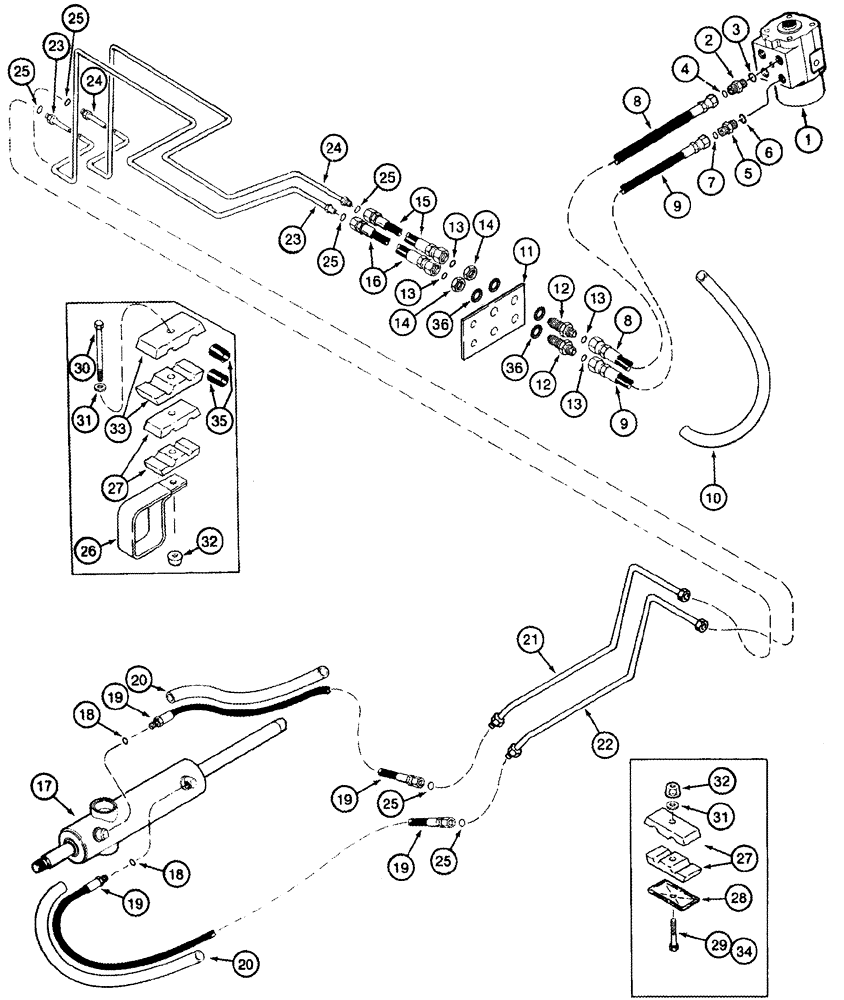

Схема запчастей Case IH 420 - (05-03) - HYDRAULICS - STEERING (04) - STEERING
27
4
8
29
28
26
5
11
9
16
31
27
36
19
25
33
19
13
1
15
12
22
36
18
32
3
24
14
35
9
19
14
13
8
25
32
21
13
25
18
30
13
10
23
34
19
31
25
6
17
23
25
2
20
20
24
12
7
25

Артикул

Название

Примечание

Количество

1

387548A1

STEERING VALVE

Steering

1шт.

See Figure 05-04

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

11/16 fc x 3/4 Or, Inc. 6, 7

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

187656A1

HOSE

1830 mm (72")

1шт.

9

187655A1

HOSE

1830 mm (72")

1шт.

10

191134A1

HOSE,60.3mm ID x 956mm L

965 mm (38")

1шт.

11

184359A2

LARGE PLATE

PLATE, LARGE

1шт.

12

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

Inc. 13, 14

2шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

15

187649A1

HOSE

1070 mm (42-1/8")

1шт.

16

187651A1

HOSE

1120 mm (44")

1шт.

17

93194C8

STEERING CYLINDER

67 ID x 246 mm strk

1шт.

See Figure 05-07

1шт.

17

93194C9R

REMAN-HYD CYLINDER

420 CASE IH COTTON EXPRESS COTTON PICKER, 67 ID x 246 mm strk (9/06-), Reman For New PN 93194C8

1шт.

17

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

19

1984283C1

HOSE

700 mm (27-1/2")

2шт.

20

1546059C1

HOSE

635 mm (25"), Cut From 87283C1

2шт.

21

196459A2

TUBE

Rear, Left Hand Turn

1шт.

22

196460A2

TUBE

Rear, Right Hand Turn

1шт.

23

248691A2

HYD TUBE

Middle, Left Hand Turn

1шт.

24

248690A2

HYD TUBE,0.375" OD, 2275.1, 620.4 mm Length

Middle, Right Hand Turn

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

26

1301387C2

CLIP

2" ID

1шт.

27

1546024C1

CLAMP

2 piece

8шт.

28

1347127C1

PLATE

5шт.

29

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

4шт.

30

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

33

1546026C1

CLAMP

2шт.

34

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

35

163489C1

STRIP

1/4 ID x 1-13/64

3шт.

36

493-41078

LOCK WASHER,Ext Tooth, 3/4"

4шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

Выбрано товаров: 40
