Запчасти Case IH 420 (05-01) - STEERING WHEEL - MOUNTING (04) - STEERING

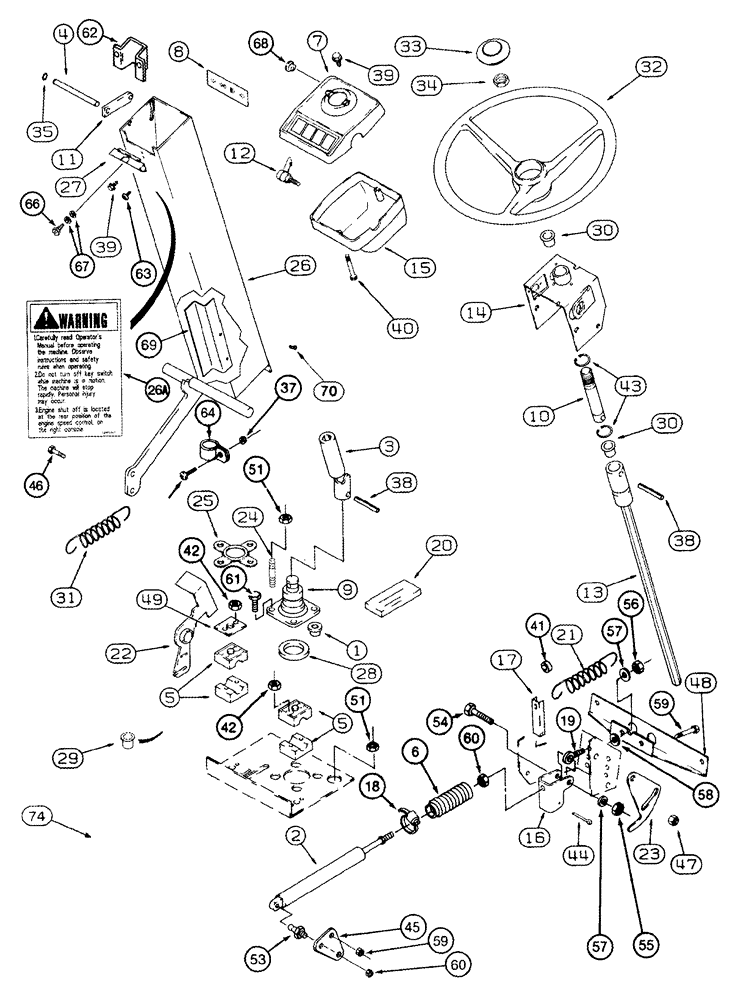

Схема запчастей Case IH 420 - (05-01) - STEERING WHEEL - MOUNTING (04) - STEERING
12
15
27
51
6
67
46
69
18
30
5
21
3
31
13
25
30
51
28
40
10
57
70
34
42
53
59
29
61
24
49
19
39
22
43
26a
54
62
57
14
8
38
2
4
5
48
45
58
66
41
56
47
55
64
63
11
38
33
17
68
37
26
60
32
60
44
59
39
20
74
7
16
9
23
35
1
42

Артикул

Название

Примечание

Количество

1

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

4шт.

2

224357A1

GAS STRUT

1шт.

3

119760A1

FLEXIBLE JOINT

1шт.

4

119830A1

ROD

9.5 x 111 mm

1шт.

5

120326A2

BALL BEARING,24 mm

4шт.

6

195089A1

BOOT

1шт.

7

120329A4

COVER

Steering Console

1шт.

8

120332A1

DECAL

Directional Arrows

1шт.

9

120338A2

STEERING COLUMN

Pump

1шт.

10

124054A3

SHAFT

(Not Shown)

1шт.

10a

495-81051

WASHER,29/32" x 1 1/4" x .060"

(Not Shown)

2шт.

10b

495-81048

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

Install As Many Washers As Will Fit Between Ref 10A and Ref 43, Top End Only, (Not Shown)

3шт.

11

127040A2

PLATE

1шт.

12

129255A1

HANDLE

1шт.

13

130952A2

FLEXIBLE JOINT

1шт.

14

130953A3

SUPPORT

1шт.

15

130956A4

COVER

1шт.

16

224761A1

CLEVIS

1шт.

17

130958A2

CHANNEL

1шт.

18

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1шт.

19

224235A1

BALL JOINT

1шт.

20

130961A1

FOAM INSULATION

1шт.

21

130962A2

SPRING

27.9 OD x 122 mm

1шт.

22

136798A1

PEDAL

1шт.

23

446632A1

BRACKET

1шт.

24

136802A1

STUD

10 x 48 mm

1шт.

25

136805A1

RETAINER

1шт.

26

192374A5

STEERING COLUMN

Inc. 26A

1шт.

26a

239509A1

DECAL

1шт.

27

136919A1

COVER

1шт.

28

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

1шт.

29

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

Spacer

1шт.

30

373445R1

BUSHING,22.25mm ID x 22.99mm L

Shaft Support

2шт.

31

182652A1

SPRING

27.9 OD x 122 mm

1шт.

32

251342A1

STEERING WHEEL

1шт.

33

187177A1

CAP

1шт.

34

F19646

LOCK NUT,13/16"-20, Thin

1шт.

35

100-3337

SNAP RING,E-Type, 0.3" OD

2шт.

37

233185A1

CLIP,ELECTRICAL

1шт.

38

38-32420

PIN,9.53mm OD x 31.75mm L, Coiled

2шт.

39

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

40

540-714

SCREW,Pan HD, M3 x 45mm, Cl 4.8

2шт.

41

224089A1

SPACER

1шт.

42

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

43

100-1187

SNAP RING,#87, Ext

2шт.

44

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

45

223917A1

PLATE

1шт.

46

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

47

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

48

120143A4

SUPPORT

1шт.

49

185268A1

PLATE

2шт.

50

1276119C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

(Not Shown)

1шт.

51

825-51410

FLANGE NUT,M10, Flg Ser

3шт.

52

3233348R1

CLIP

(Not Shown)

1шт.

53

142597A1

STUD

1шт.

54

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

55

425-105

NUT,5/16"-18, G5

1шт.

56

425-115

NUT,5/16"-24, G5

1шт.

57

492-11031

LOCK WASHER,5/16"

2шт.

58

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

59

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

60

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

61

86625011

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

3шт.

62

231985A1

GUARD

1шт.

63

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

64

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

65

1276119C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

1шт.

66

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

3шт.

67

492-11010

LOCK WASHER,#10

2шт.

68

353-409

PLUG,Dome, .812" hole, Nylon

1шт.

69

400648A1

SHIELD

1шт.

70

1276119C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

2шт.

235955A1

PACKAGE

Steering Column, Gas Strut, Inc. 2, 6, 16, 18, 19, 41, 45, 46, 48, 52 - 60

1шт.

Выбрано товаров: 73
