Запчасти Case IH 420 (06-15) - TRANSMISSION ASSY - HOUSING AND DIFFERENTIAL (03) - POWER TRAIN

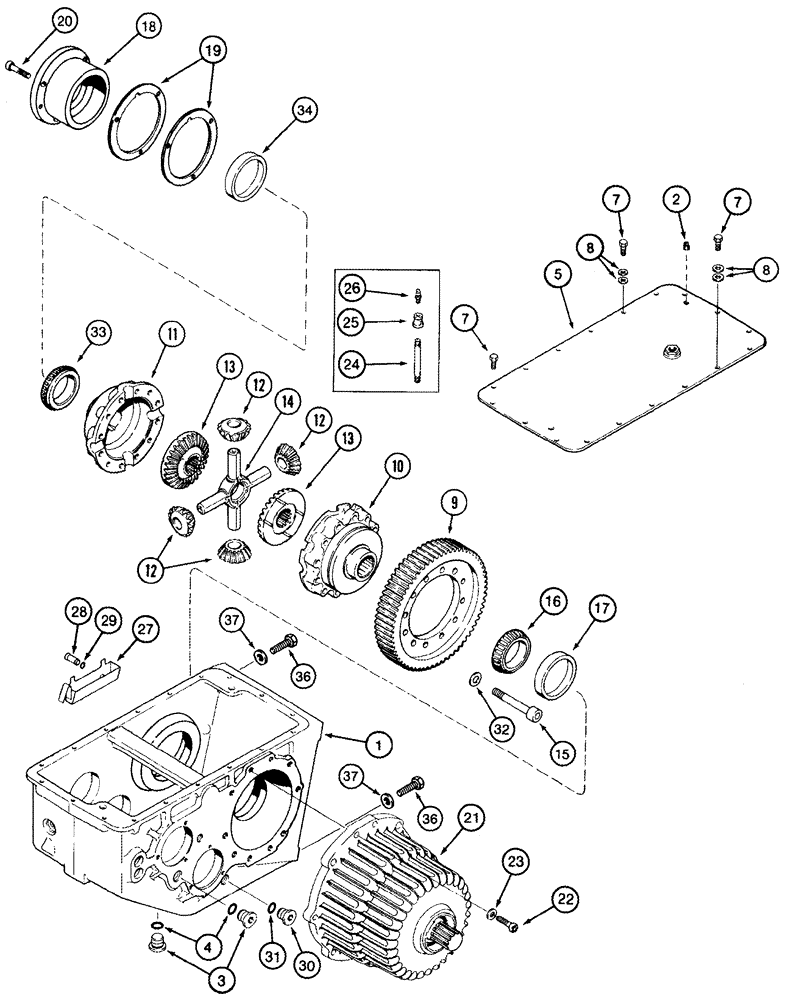

Схема запчастей Case IH 420 - (06-15) - TRANSMISSION ASSY - HOUSING AND DIFFERENTIAL (03) - POWER TRAIN
7
18
10
30
12
34
36
22
32
2
26
8
25
24
15
3
14
7
9
8
37
31
16
19
20
13
13
37
23
29
33
28
5
11
21
7
36
4
17
27
12
1
12

Артикул

Название

Примечание

Количество

236314A1

TRANSMISSION

Inc. 1 - 34, Inc. Figure(s) 06-17 - 06-19, 07-03

1шт.

236314A1R

REMAN-TRANSMISSION

420 CASE IH COTTON EXPRESS COTTON PICKER (9/06-)

1шт.

236314A1C

CORE-TRANSMISSION

Return Number

1шт.

1

236381A1

HOUSING

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

3

9841223

PLUG,1-1/16" - 12 ORB

Incl. 4

2шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

239456A1

COVER

1шт.

7

613-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

18шт.

8

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

4шт.

9

1997997C2

DRIVEN GEAR

66T, Differential Driven

1шт.

236380A1

HOUSING

Inc. 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Housing, Right Hand

1шт.

11

NSS

NOT SOLD SEPARAT

Housing, Left Hand

1шт.

12

361061R3

PINION

15T, Pinion

4шт.

13

236377A1

BEVEL GEAR

28T

2шт.

14

393637R2

DIFF. SPIDER

1шт.

15

230447A1

HEX SOC SCREW

M16 x 90; 10.9

12шт.

16

ST2096

BEARING ASSY,73.03mm ID x 25.4mm W

1шт.

17

ST981

BEARING CONE,112.71mm OD x 19.05mm W

1шт.

18

1997956C2

CAGE

1шт.

19

1997957C2

SHIM,134mm ID x 176mm OD x 0.81mm Thk

1шт.

19

1997958C2

SHIM,134mm ID x 176mm OD x 0.13mm Thk

1шт.

19

1997947C2

SHIM,134mm ID x 176mm OD x 0.08mm Thk

1шт.

20

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

5шт.

21

236388A1

BRAKE ASSY.

Master

2шт.

See Figure 07-03

1шт.

21

236388A1R

REMAN-BRAKE ASSY.

REMAN-BRAKE ASSY REMAN - Wet Brakes

2шт.

21

236388A1C

CORE-BRAKE ASSY.

Return Number

2шт.

22

963-12040

HEX SOC SCREW,M12 x 40mm, Cl 10.9

20шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

20шт.

24

221-1114

LUBE NIPPLE,1/8" NPT x 4 1/2"

1шт.

25

144098

REDUCER

1/4 PT x 1/8 PT

1шт.

26

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

1шт.

27

1997575C1

GUARD

Lubrication

1шт.

28

1997393C1

TUBE,10.22 mm ID, 12.7 mm OD

Lubrication

1шт.

29

100-1150

SNAP RING,#50, Ext

1шт.

30

86625138

PLUG,7/18" - 14

Inc. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

33

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

1шт.

34

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

1шт.

36

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

37

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

Выбрано товаров: 44
