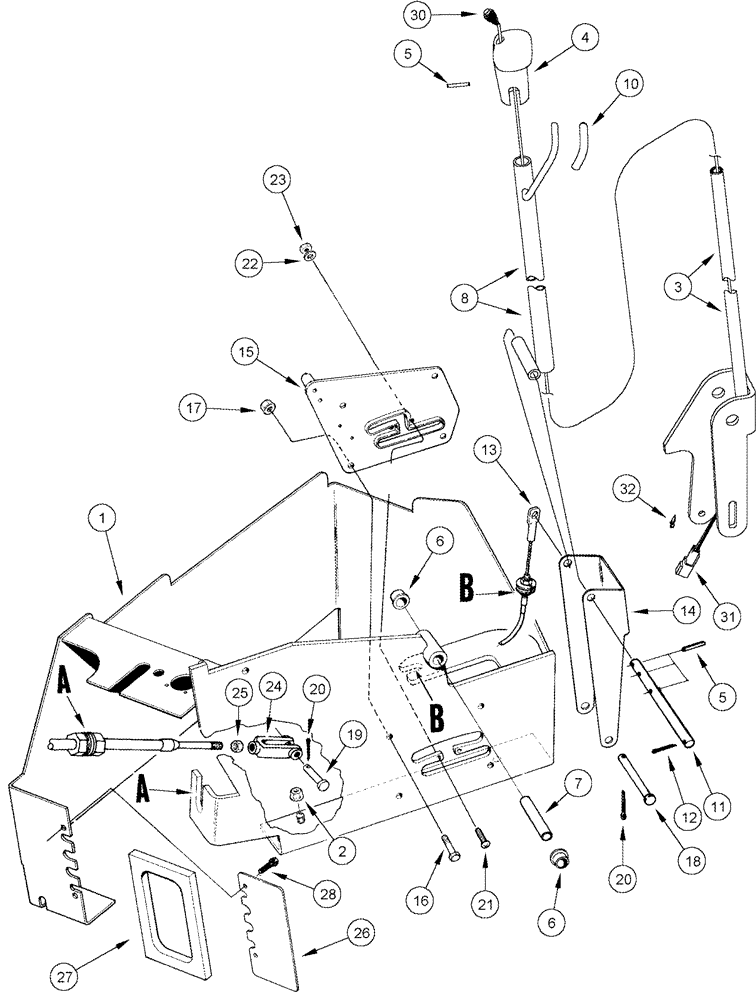

Запчасти Case IH 420 (06-13) - TRANSMISSION UPPER SHIFT CONTROLS (03) - POWER TRAIN

1

87597486

BRACKET

Shifter Mount

1шт.

2

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

3

320405A1

ROD

Transmission Shift, 2nd-3rd Speed

1шт.

4

320404A1

KNOB

1шт.

5

838-1428

LOCK PIN,M4 x 28, Slotted

3шт.

6

S115001

FLANGED BEARING,0.502" ID x 0.627" OD x 0.3125"

2шт.

7

122199A1

PIVOT PIN,12.7mm OD x 73mm L

1шт.

8

320409A1

TUBE

Transmission Shift, 1st Speed, Not Serviced Separately

1шт.

10

125803A1

SLEEVE

1шт.

11

122197A2

SPLIT PIN/SAFETY PIN

Rail Selector

1шт.

12

432-612

COTTER PIN,3/32" x 3/4"

1шт.

13

115398A1

CABLE,3209mm L

3209 mm (126"), Transmission Shift, 1st Speed

1шт.

14

124714A2

SUPPORT

1шт.

15

122757A3

GUIDE

Shift Pattern

1шт.

16

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

17

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

18

427-6325

CLEVIS PIN,3/8" x 3 1/4"

1шт.

19

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

20

432-612

COTTER PIN,3/32" x 3/4"

2шт.

21

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

2шт.

22

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

23

824-1404

NUT,M4, Cl 5

2шт.

24

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

25

124817A1

CABLE,2791mm L

2791 mm (110"), Transmission Shift, 2nd-3rd Speed

1шт.

26

122750A1

PLATE

Bulkhead

1шт.

27

122758A1

GASKET

1шт.

28

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

30

320585A1

SWITCH

Transmission Release

1шт.

31

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

32

225318C1

ELEC CONNECTOR,2 Pin

1шт.

33

825-5148

SERRATED NUT,M8, Flg Ser

3шт.
