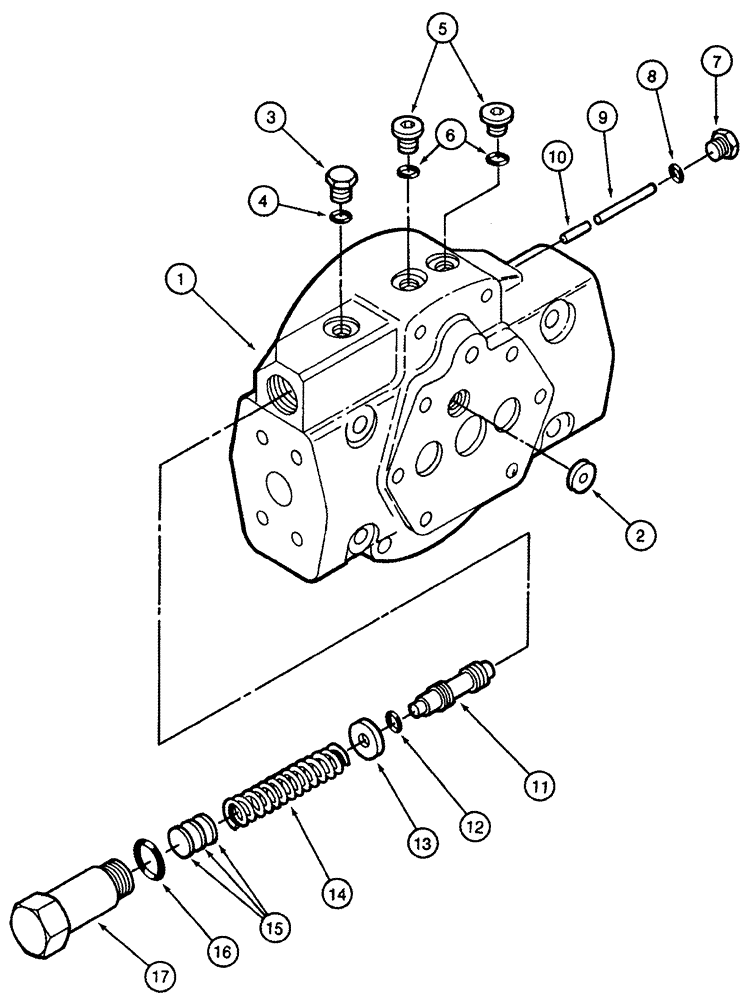

Запчасти Case IH 420 (06-09) - PUMP ASSY - HYDROSTATIC - INTERNAL PRESSURE OVERRIDE REPAIR (03) - POWER TRAIN

1986824C5

PUMP, HYDROSTATIC

HYDROSTATIC PUMP New, Inc. 1 - 17, Inc. Figures 06-09 - 06-12

1шт.

1986824C5R

REMAN-HYDROSTAT PUMP

420 CASE IH COTTON EXPRESS COTTON PICKER, HYDROSTATIC PUMP New, INTERNAL PRESSURE OVERRIDE REPAIR (9/06-)

1шт.

1986824C5C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER

1шт.

2

107592A1

WASHER

Control

1шт.

3

9672438

PLUG,7/16" - 20 ORB

Incl. 4

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

278548

PLUG,Hex, 7/16"-20 ORB

Incl 6

2шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

1986739C1

REPAIR KIT

Spool, Internal Pressure Override, Inc. 7 - 17

1шт.

7

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

Inc. 8

1шт.

8

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

ROLLER

1шт.

10

NSS

NOT SOLD SEPARAT

ROLLER

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING

1шт.

235419A1

SHIM KIT

Valve, Inc. 15

1шт.

15

NSS

NOT SOLD SEPARAT

0.002", Shim

1шт.

15

NSS

NOT SOLD SEPARAT

0.005", Shim

1шт.

15

NSS

NOT SOLD SEPARAT

0.010", Shim

1шт.

15

NSS

NOT SOLD SEPARAT

0.031", Shim

1шт.

15

NSS

NOT SOLD SEPARAT

0.062", Shim

1шт.

15

NSS

NOT SOLD SEPARAT

0.100", Shim

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

Retainer

1шт.
