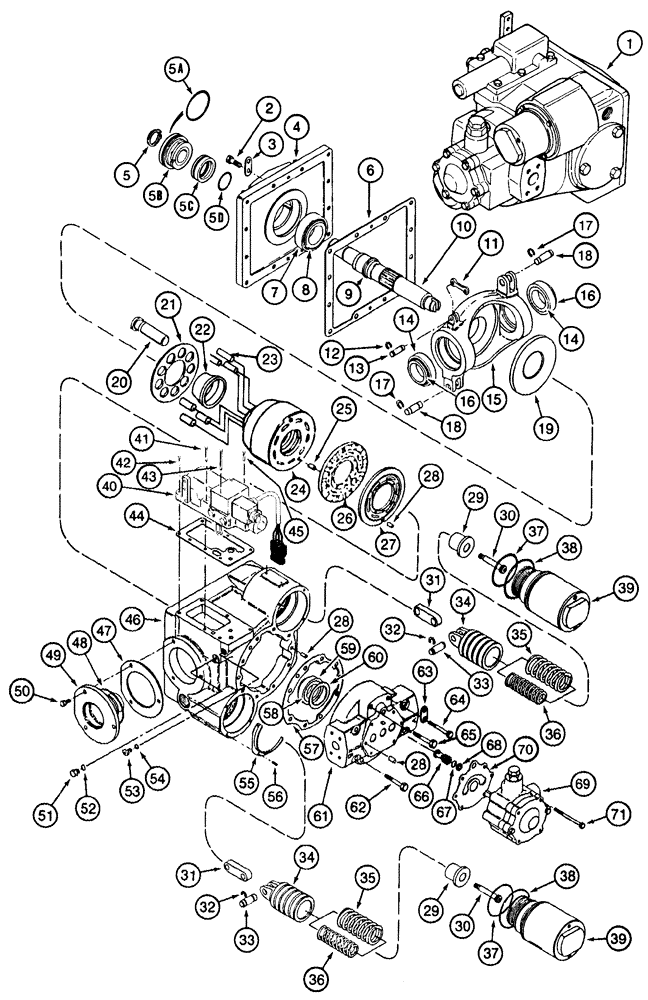

Запчасти Case IH 420 (06-07) - PUMP ASSY - HYDROSTATIC (03) - POWER TRAIN

1

1986824C5

PUMP, HYDROSTATIC

HYDROSTATIC PUMP New, Inc. 2 - 71, Inc. Figures 06-09 - 06-12

4шт.

1

1986824C5R

REMAN-HYDROSTAT PUMP

420 CASE IH COTTON EXPRESS COTTON PICKER, HYDROSTATIC PUMP New (9/06-)

4шт.

1

1986824C5C

CORE-HYDROSTAT PUMP

Return Number

4шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

3

NSS

NOT SOLD SEPARAT

STRAP

1шт.

4

NSS

NOT SOLD SEPARAT

FLANGE

1шт.

178310A1

SEAL KIT

Shaft, Inc. 5 - 5D

1шт.

5

100-21400

SNAP RING,4.00", Int, #400

1шт.

5a

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

5b

NSS

NOT SOLD SEPARAT

SEAL, Shaft

1шт.

5c

NSS

NOT SOLD SEPARAT

SEAL, Shaft

1шт.

5d

238-7138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 7, 75 Duro

1шт.

6

1-6627

GASKET

1шт.

7

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

1шт.

107580A1

SHAFT

Input, Inc. 8 - 10

1шт.

8

529207R91

BEARING ASSY,54.99mm ID x 29mm W

1шт.

9

101-11215

SNAP RING,#215, 2.026", Ext

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

107583A1

HOUSING

Inc. 11 - 15

1шт.

11

114324A1

LINK

1шт.

12

100-1125

SNAP RING,#25, Ext

2шт.

13

140765C1

PIN

1шт.

14

376463C1

BEARING CUP

3-1/4 OD

2шт.

15

NSS

NOT SOLD SEPARAT

PLATE, Swash

1шт.

16

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

2 ID

2шт.

17

100-1175

SNAP RING,#75, Ext

4шт.

18

NSS

NOT SOLD SEPARAT

PIN, Linkage

2шт.

19

107582A1

LARGE PLATE

PLATE, LARGE

1шт.

107588A1

PACKAGE

Cylinder Block, Inc. 20 - 26

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON, Cylinder

9шт.

21

NSS

NOT SOLD SEPARAT

PLATE

1шт.

22

NSS

NOT SOLD SEPARAT

GUIDE

1шт.

23

NSS

NOT SOLD SEPARAT

DOWEL

6шт.

24

NSS

NOT SOLD SEPARAT

BARREL

1шт.

25

37-1510

DOWEL,5/16" x 5/8"

2шт.

26

NSS

NOT SOLD SEPARAT

PLATE

1шт.

27

107587A1

LARGE PLATE

PLATE, LARGE

1шт.

28

37-1510

DOWEL,5/16" x 5/8"

7шт.

107581A1

PISTON

Servo, Inc. 29 - 36

2шт.

29

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

30

NSS

NOT SOLD SEPARAT

SCREW

1шт.

31

NSS

NOT SOLD SEPARAT

LINK

1шт.

32

100-1175

SNAP RING,#75, Ext

2шт.

33

NSS

NOT SOLD SEPARAT

PIN

1шт.

34

NSS

NOT SOLD SEPARAT

PISTON

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING, Heavy

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING, Light

1шт.

142407C2

KIT

Servo, Inc. 37 - 39

2шт.

37

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

38

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

40

191066A1

VALVE

Hydrostatic Pump, Inc. 41 - 45

1шт.

See Figure 06-07

1шт.

41

61-33132

HEX SOC SCREW,5/16"-18 x 2"

2шт.

42

61-33116

HEX SOC SCREW,5/16"-18 x 1"

3шт.

43

61-33154

HEX SOC SCREW,5/16" - 18 x 3-3/8"

1шт.

44

133756C1

GASKET

1шт.

45

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

46

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

107591A1

SHIM KIT

Trunnion Bearing, Inc. 47

1шт.

47

NSS

NOT SOLD SEPARAT

0.002", Shim

6шт.

47

NSS

NOT SOLD SEPARAT

0.005", Shim

4шт.

47

NSS

NOT SOLD SEPARAT

0.010", Shim

4шт.

47

NSS

NOT SOLD SEPARAT

0.015", Shim

4шт.

47

NSS

NOT SOLD SEPARAT

0.025", Shim

4шт.

48

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

49

NSS

NOT SOLD SEPARAT

TRUNNION

2шт.

50

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

6шт.

51

9672438

PLUG,7/16" - 20 ORB

Incl. 52

1шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

53

278548

PLUG,Hex, 7/16"-20 ORB

Incl 54

1шт.

54

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

55

142408C1

RETAINER

2шт.

56

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

6шт.

57

1-6478

GASKET

1шт.

58

671032R1

TAPERED BEARING,33.34mm ID x 22.33mm W

1шт.

59

671033R1

BEARING, CUP

1шт.

107585A1

SHIM KIT

End Cover, Inc. 60

1шт.

60

NSS

NOT SOLD SEPARAT

0.003", Shim

1шт.

60

NSS

NOT SOLD SEPARAT

0.005", Shim

1шт.

60

NSS

NOT SOLD SEPARAT

0.010", Shim

1шт.

60

NSS

NOT SOLD SEPARAT

0.015", Shim

1шт.

60

NSS

NOT SOLD SEPARAT

0.020", Shim

1шт.

60

NSS

NOT SOLD SEPARAT

0.030", Shim

1шт.

61

NSS

NOT SOLD SEPARAT

COVER, End

1шт.

See Figure 06-08

1шт.

62

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

63

NSS

NOT SOLD SEPARAT

STRAP, If Equipped

1шт.

64

326-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 8

4шт.

65

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

2шт.

140769C1

CHECK VALVE

Inc. 66 - 68

2шт.

66

NSS

NOT SOLD SEPARAT

BODY

1шт.

67

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

68

140770C1

RING

1шт.

69

107593A2

PUMP

Charge, Inc. 70, 71

1шт.

See Figure 06-09

1шт.

70

133760C2

GASKET

1шт.

71

326-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

4шт.
