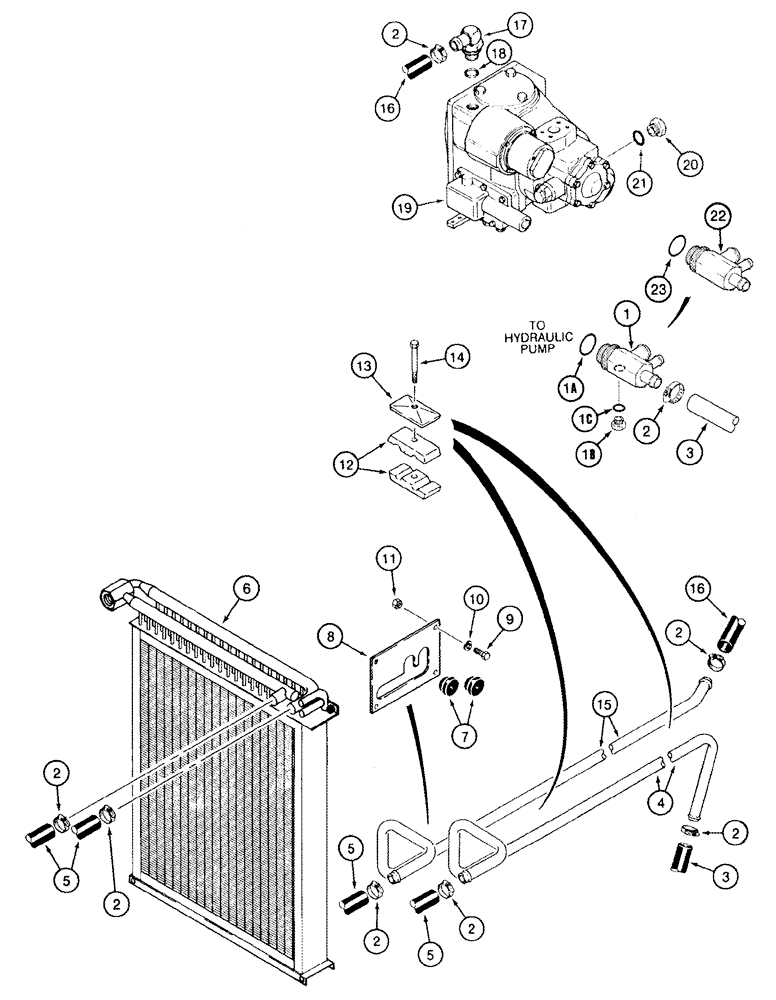

Запчасти Case IH 420 (06-01) - OIL COOLER SYSTEM (03) - POWER TRAIN

1

244469A2

FITTING

Special, W/Drain Plug, Inc. 1A - 1C, If Equipped

1шт.

1a

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

1b

76349

PLUG,9/16" - 18 ORB

Incl. 1C

1шт.

2

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

8шт.

3

238622A1

HYDRAULIC HOSE,737.00 mm

Cut from 364361C1

1шт.

4

1990468C2

TUBE

Return

1шт.

5

1329328C1

HYDRAULIC HOSE,25.40 mm ID x 1244.60 mm, SAE 30R2

Cut from 364361C1 Bulk Hose

2шт.

6

220589A1

COOLER

Oil

1шт.

See Figure 06-02

1шт.

7

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

2шт.

8

1990469C1

LARGE PLATE

PLATE, LARGE Cover

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

10

492-11031

LOCK WASHER,5/16"

4шт.

11

425-105

NUT,5/16"-18, G5

4шт.

12

1546028C1

CLAMP,25.4mm ID x 82mm L

1" ID, Two Piece

2шт.

13

1347127C1

PLATE

2шт.

14

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

15

1990467C2

TUBE

Supply

1шт.

16

1979763C2

HOSE

394 mm (15-5/8"), Cut From 364361C1

1шт.

17

1546404C1

ELBOW

1 barb x 1-1/16 Or, Inc. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

1986824C5

PUMP, HYDROSTATIC

HYDROSTATIC PUMP New

1шт.

See Figure(s) 06-09 - 06-12

1шт.

19

1986824C5R

REMAN-HYDROSTAT PUMP

420 CASE IH COTTON EXPRESS COTTON PICKER, HYDROSTATIC PUMP New, OIL COOLER SYSTEM (9/06-)

1шт.

19

1986824C5C

CORE-HYDROSTAT PUMP

Return Number

1шт.

20

86512512

PLUG,7/8" - 14 ORB

Incl. 21, If Equipped

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

244469A2

FITTING

Special, w/o Drain Plug, Inc. 23, If Equipped

1шт.

23

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

1c

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
