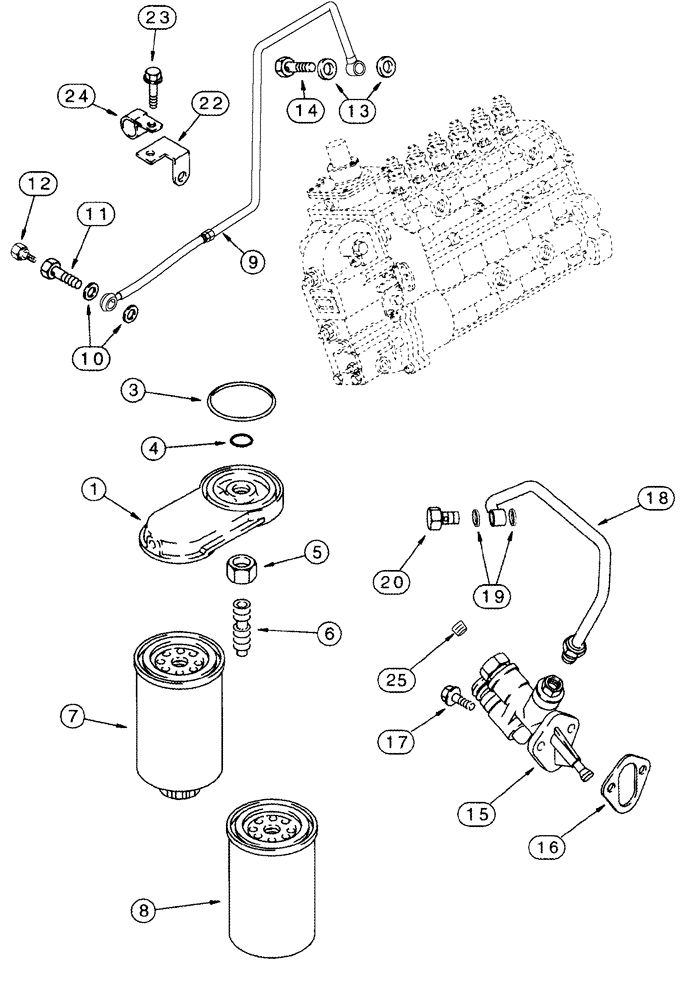

Запчасти Case IH 420 (03-05) - FUEL FILTER - PUMP, TRANSFER (02) - FUEL SYSTEM

1

84140384

FILTER HEAD

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING 70 mm

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING 14 mm

1шт.

5

J903293

JAM NUT

M16

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

A77470

SEPARATOR

Kit, Fuel, Incl. 7, 8

1шт.

7

J930942

SEPARATOR

Primary

1шт.

8

J931063

FUEL FILTER

Secondary

1шт.

9

87436149

FUEL TUBE,479.8, 94.1 mm L

Fuel Supply

1шт.

10

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

M12

2шт.

11

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

12

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

M6 x 10

1шт.

13

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

14

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

15

J936317

PUMP

1шт.

16

J939258

GASKET,1.21mm Thk

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

18

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

1шт.

19

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

M12

2шт.

20

J916361

BANJO BOLT

M12 x 24

1шт.

22

J930384

BRACE

1шт.

23

283264A1

BOLT

M8 x 14; 10.9

2шт.

24

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

6 mm

1шт.

25

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.
