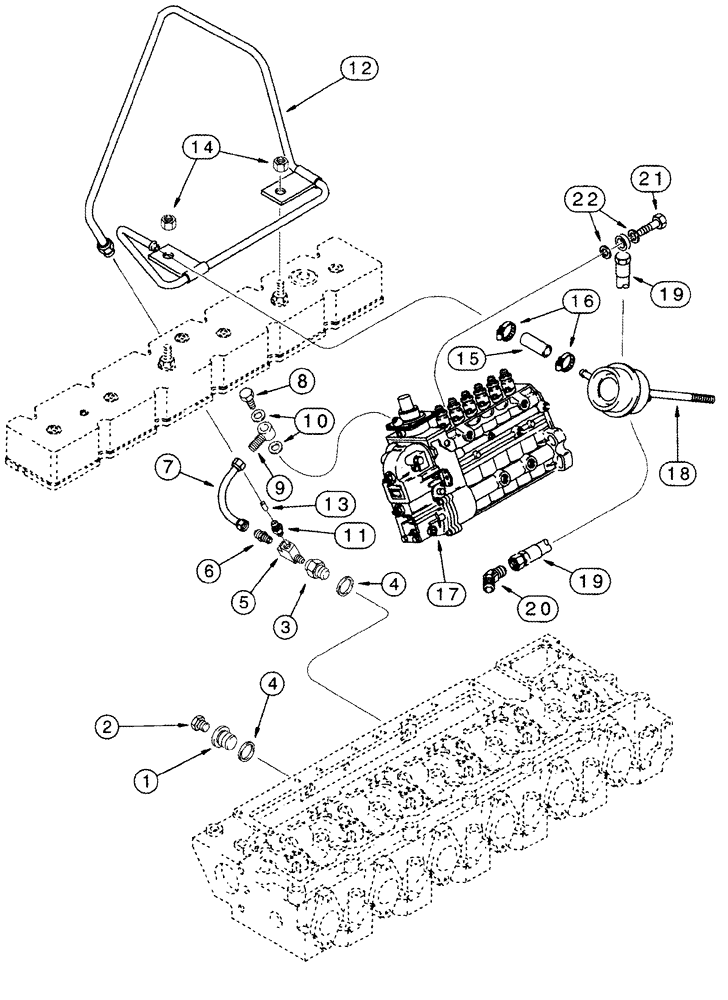

Запчасти Case IH 420 (03-04) - ANEROID AND WASTEGATE SYSTEM (02) - FUEL SYSTEM

1

J908110

PLUG

1шт.

2

86637724

PLUG,1/8" - 27 NPT

1шт.

3

J921594

PLUG

1шт.

4

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

2шт.

5

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

1шт.

6

222-21

FITTING,7/16"-24 x 1/8" NPTF

1шт.

7

J926738

TUBE,4.76 mm OD x 110 mm L

1шт.

8

J903035

BANJO BOLT

M12 x 24

1шт.

9

J919644

FITTING

1шт.

10

J935171

SEALING WASHER

12 x 19 x 1.5 mm

2шт.

11

A77796

CONNECTOR, ELEC

CONNECTOR

1шт.

12

J926732

TUBE,6.35 mm OD

1шт.

13

222-102

SLEEVE,1/4" Tube

1шт.

14

J900589

NUT

M8

2шт.

15

J920871

HOSE,1294.00 mm

51 mm (2-1/8")

1шт.

16

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

17

REF

INSTRUCTION

Pump Assy

1шт.

See Figure 03-06

1шт.

18

J533135

ACTUATOR

1шт.

See Figure 02-13

1шт.

J533135C

CORE-HYD CYLINDER

Return Number, ACTUATOR - for N.A. Only

1шт.

J580830C

CORE-HYD CYLINDER

Return Number, ACTUATOR - for N.A. Only

1шт.

19

J916779

FUEL HOSE,508.00 mm

1шт.

20

222-1704

ELBOW,45 Degree, 7/16"-24, 45 Degree Fl x 1/4 NPT

To Cylinder Block

1шт.

21

J918002

BANJO BOLT

1шт.

22

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

10 x 15,5 x 1 mm

2шт.

23

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

(Not Shown)

1шт.
