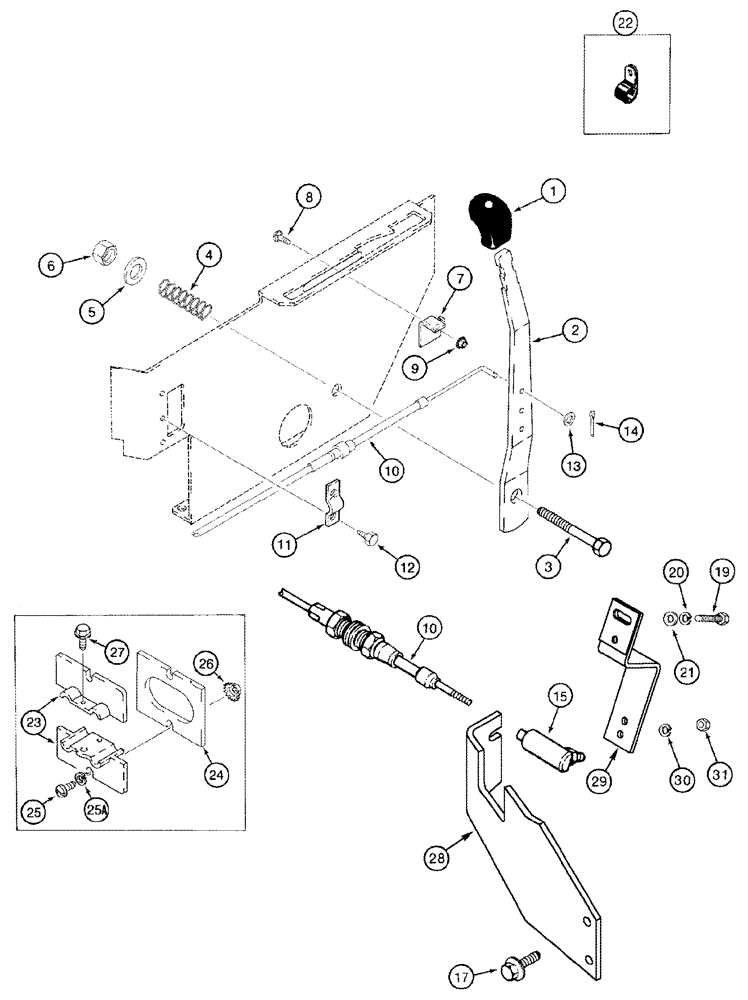

Запчасти Case IH 420 (03-02) - CONTROLS, THROTTLE (02) - FUEL SYSTEM

1

134071A1

KNOB

1шт.

2

116434A1

LEVER

1шт.

3

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

4

PO22

SPRING

1шт.

5

495-81145

WASHER,13/32" x 1 3/4" x .120"

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

116433A2

STOP

1шт.

8

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

10

193428A1

CABLE,5281mm L

1шт.

11

A75815

CLAMP

1шт.

12

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

2шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

14

432-48

COTTER PIN,1/16" x 1/2"

1шт.

15

1977009C4

BALL JOINT

No. 10

1шт.

17

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

19

615-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

20

892-11006

LOCK WASHER,M6

2шт.

21

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

22

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

23

119314A1

CLAMP

2шт.

24

119328A1

GASKET,5mm Thk

1шт.

25

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

2шт.

25a

492-11010

LOCK WASHER,#10

2шт.

26

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

27

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

28

344951A1

SUPPORT

1шт.

29

344952A1

LEVER

1шт.

30

492-11025

LOCK WASHER,1/4"

1шт.

31

425-114

NUT,1/4"-28, G5

1шт.
