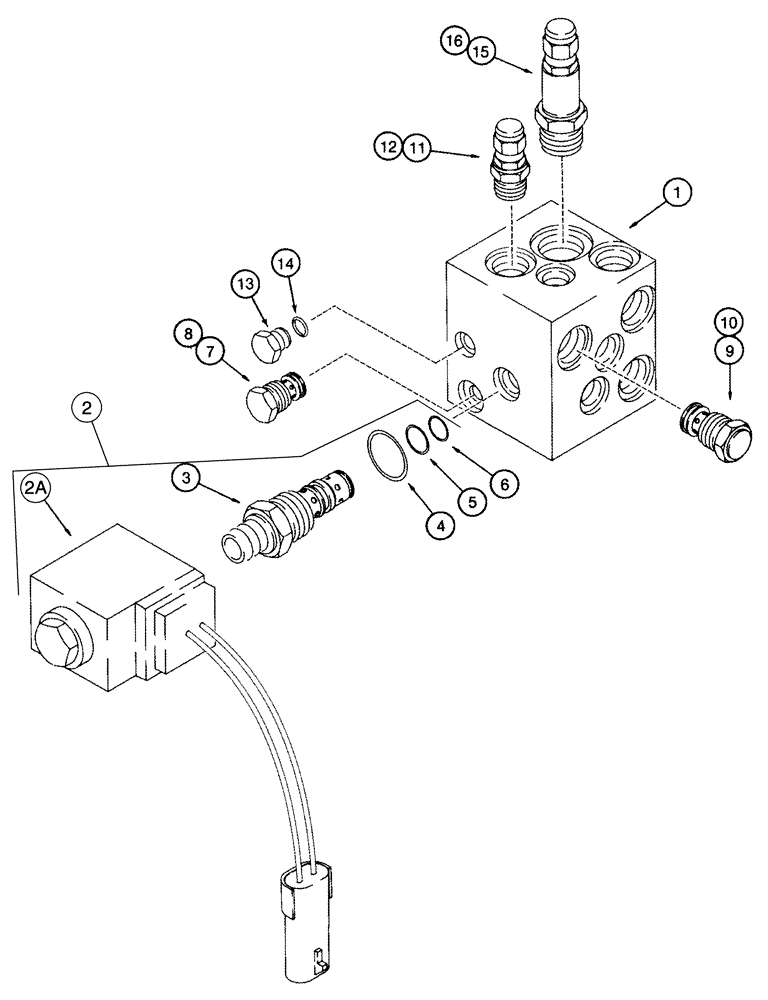

Запчасти Case IH 420 (07-06) - PARKING BRAKE AND REGULATOR VALVE (5.1) - BRAKES

138367A4

VALVE

Inc. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

1986618C1

SOLENOID

3-Way, Inc. 3 - 6

1шт.

2a

190703A1

SOLENOID

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

6

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

7

190704A1

CHECK VALVE

Inc. 8

1шт.

8

190707A1

SEAL KIT

1шт.

9

199976A1

VALVE, CHECK

Inc. 10

1шт.

10

149942C1

SEAL KIT

1шт.

11

190706A2

CHECK VALVE

Inc. 12

1шт.

12

149942C1

SEAL KIT

1шт.

13

129998

PLUG,1/2" - 20 ORB

Incl. 14

1шт.

14

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

15

377593A1

VALVE PRESSURE RELIE

Inc. 16

1шт.

16

190709A1

SEAL KIT

1шт.
