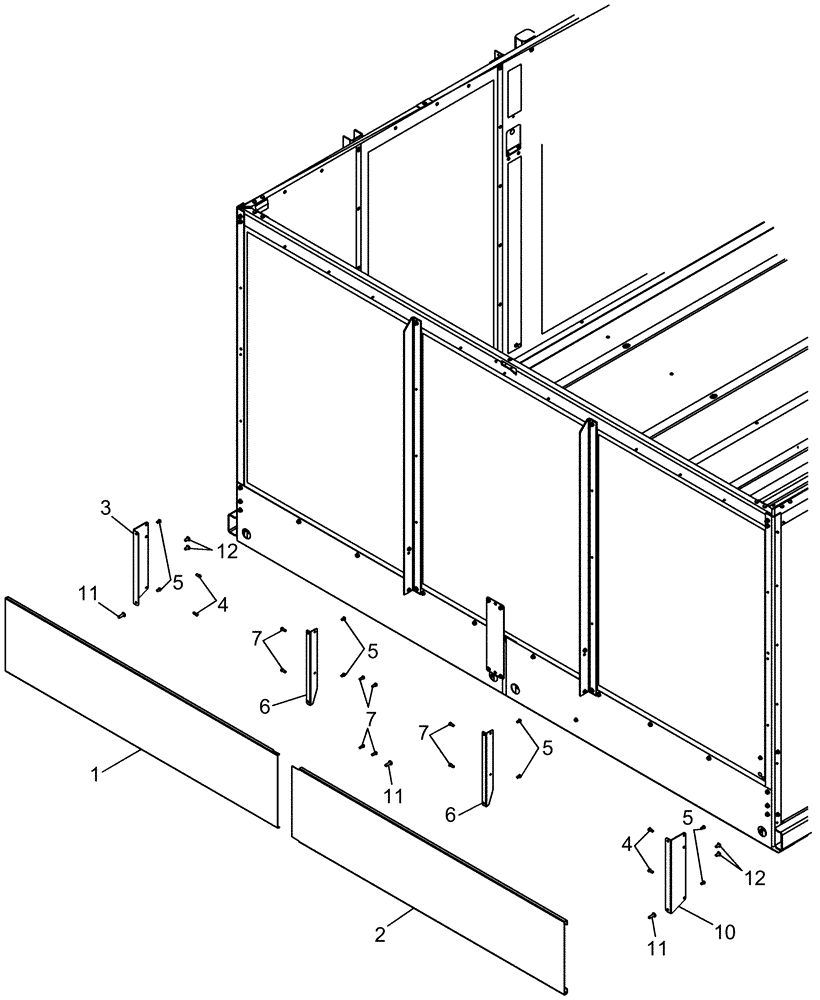

Запчасти Case IH 420 (09D-20) - BASKET, RIGHT HAND DECAL PANEL (16) - BASKET

1

87458903

SHEET

Basket Wall, Rear

1шт.

2

87458901

DOOR PANEL

Basket Wall, Front

1шт.

3

87459139

ANGLE

Decal Panel, Rear

1шт.

4

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

4шт.

5

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

8шт.

6

87459138

ANGLE

Decal Panel

2шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

8

87459126

PLATE

Decal Panel

1шт.

9

495-11034

WASHER,5/16", SAE

4шт.

10

87459137

ANGLE

Decal Panel, Front

1шт.

11

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.
