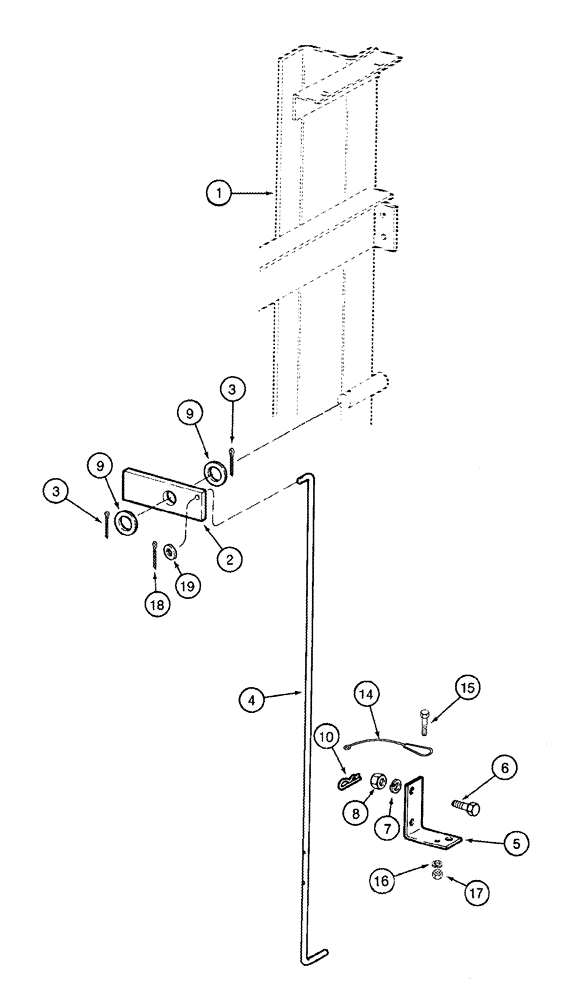

Запчасти Case IH 420 (09D-19) - REAR BASKET LOCK (16) - BASKET

1

REF

INSTRUCTION

Frame, Mast, Basket

1шт.

2

1270025C2

LARGE PLATE

PLATE, LARGE

1шт.

3

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

4

87262C2

STEM

1шт.

5

185819A1

SUPPORT

1шт.

6

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

2шт.

9

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

2шт.

10

586591R1

COTTER PIN

1/8

1шт.

14

416624A1

ROPE

Nylon Lanyard

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

16

492-11025

LOCK WASHER,1/4"

1шт.

17

425-104

NUT,1/4"-20, Cl 5

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

1шт.

19

495-11034

WASHER,5/16", SAE

1шт.
