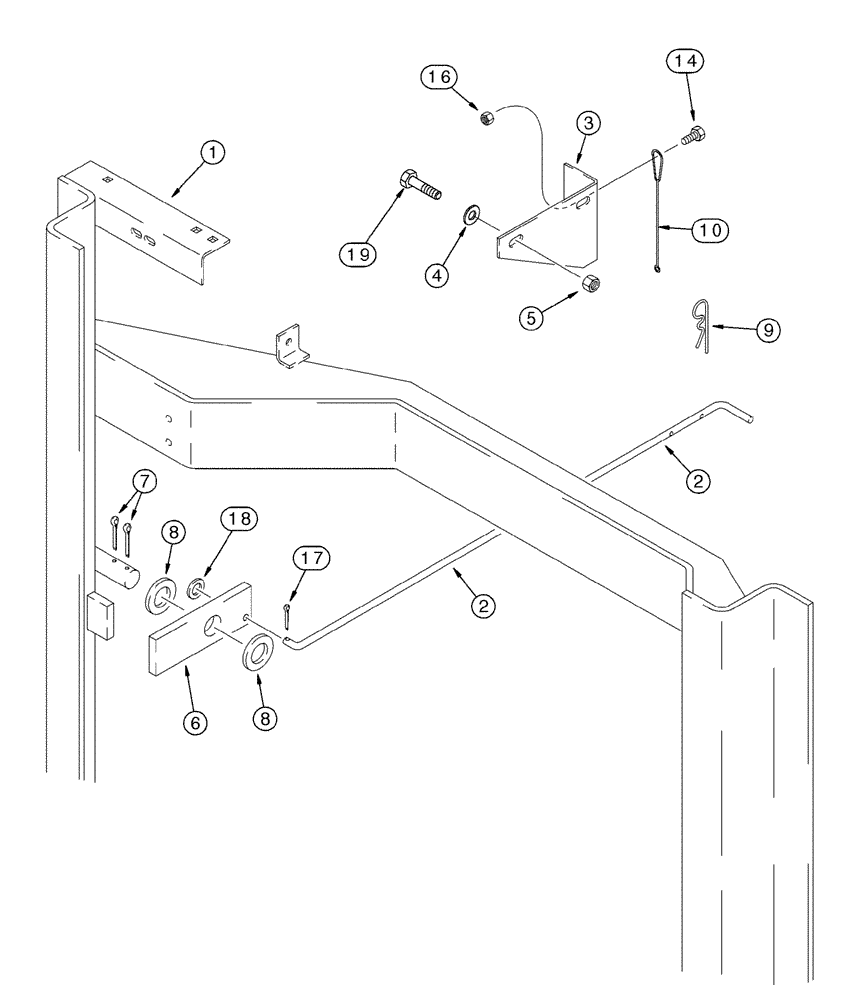

Запчасти Case IH 420 (09D-18) - FRONT BASKET LOCK (16) - BASKET

1

1349869C5

FRAME

Mast, Basket

1шт.

1

87730681

FRAME

Mast Front, Start Year: 04-JAN-08

1шт.

2

177136A3

ROD

1шт.

3

177137A1

SUPPORT

1шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

5

231-4116

NUT,3/8"-16, GB

2шт.

6

1270025C2

LARGE PLATE

PLATE, LARGE

1шт.

7

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

8

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

2шт.

9

586591R1

COTTER PIN

1/8

1шт.

10

416624A1

ROPE

Nylon

1шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

16

230-4114

NUT,1/4"-20, GA

1шт.

17

432-612

COTTER PIN,3/32" x 3/4"

1шт.

18

495-11034

WASHER,5/16", SAE

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
