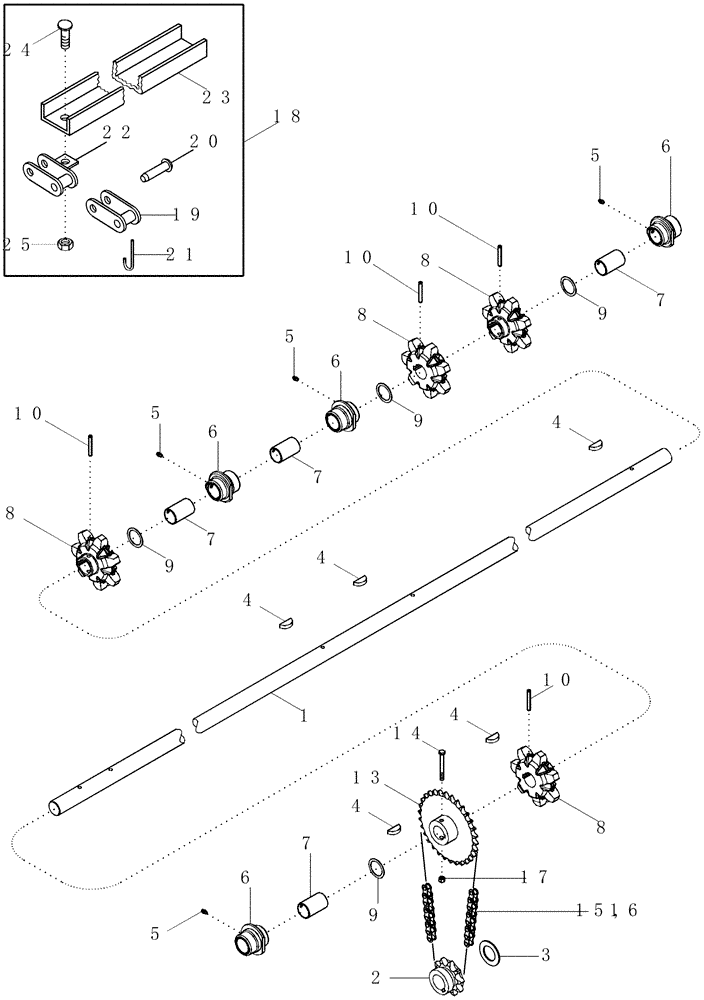

Запчасти Case IH 420 (09D-16) - BASKET DOOR - CONVEYOR DRIVE (16) - BASKET

1

1260366C2

SHAFT

1шт.

2

1260364C1

SPROCKET ASSY.

10T

1шт.

3

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

1шт.

4

126-139

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

5шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

6

1278954C91

BEARING ASSY

Drive Shaft, Inc. 7

4шт.

7

1278956C1

BUSHING,34.95mm ID x 39.7mm OD x 63.75mm L

1шт.

8

1269910C2

SPROCKET ASSY.

7T

4шт.

9

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

4шт.

10

38-12036

LOCK PIN,5/16" x 2 1/4", Slotted

4шт.

13

1260365C5

SPROCKET ASSY.

30T

1шт.

14

326-548

BOLT,Hex, 5/16" - 18 x 3", Gr 8

1шт.

141492A2

CHAIN (AG),60 HZ, 72 Links x 19.05mm = 1371.6mm

71 links; No. 60HG, Conveyor Drive, Inc. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

CHAIN, No. 60HG, Single Link

71шт.

16

141493A1

LINK

No. 60HH, Single Pitch (Not Shown)

1шт.

17

231-1445

NUT,5/16"-18, GB

1шт.

18

140154A1

CHAIN,88 Links x 58.75mm = 5170mm

88 links; No. D667H, Conveyor, Inc. 19 - 22, See Note

8шт.

Note: For complete chain order (2) 140154A1; or 55 links of 821017C2 and 22 attaching links 821016C1.

1шт.

19

821017C2

LINK,Chain

Inc. 20, 21

1шт.

20

821369C1

PIN,7.79mm OD x 47.93mm L

1шт.

21

1329837C2

PIN,2.63mm OD

1шт.

22

821016C1

LINK,Chain

Attaching

1шт.

23

1263020C1

CONDUIT

Conveyor Slat

44шт.

24

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

2 used per channel

88шт.

25

231-1435

LOCK NUT,5/16"-18, GB

2 used per channel

88шт.
