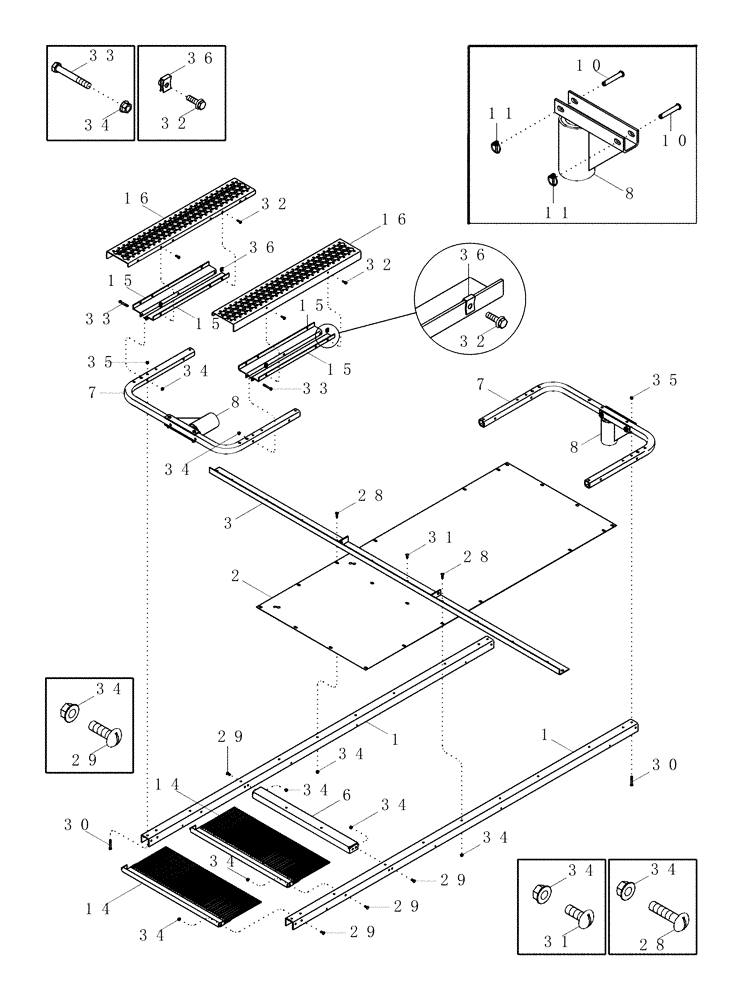

Запчасти Case IH 420 (09D-06) - LID - BASKET - TOP (16) - BASKET

1

362526A1

SUPPORT

Basket Grate

2шт.

2

87434520

COVER

SHEET Lid Top

3шт.

3

238665A1

SUPPORT

Center Tie

1шт.

6

231111A2

ANGLE BAR

Basket Roof Filler Front

3шт.

7

199774A3

TUBE

Basket Cylinder Mount

2шт.

8

231687A4

SUPPORT

Cylinder Mount

2шт.

10

439-5848

HEADED PIN,1/2" x 3", G5

4шт.

11

A33497

LINCH PIN,4.76mm OD Pin

4шт.

14

325244A1

DEFLECTOR

Basket Cover

6шт.

15

220672A2

ANGLE

Basket Top Deck

4шт.

16

87343265

STEP

Header Beam

2шт.

28

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

4шт.

30

426-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

12шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

18шт.

32

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

9шт.

33

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

4шт.

34

231-5146

FLANGE NUT,3/8"-16

1шт.

35

231-4146

NUT,3/8"-16, GB

18шт.

36

488837C1

SPRING NUT

Speed

9шт.

477-73832

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 2"

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

1шт.

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

230-4116

LOCK NUT,3/8"-16, GA

1шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

1шт.

29

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

45шт.
