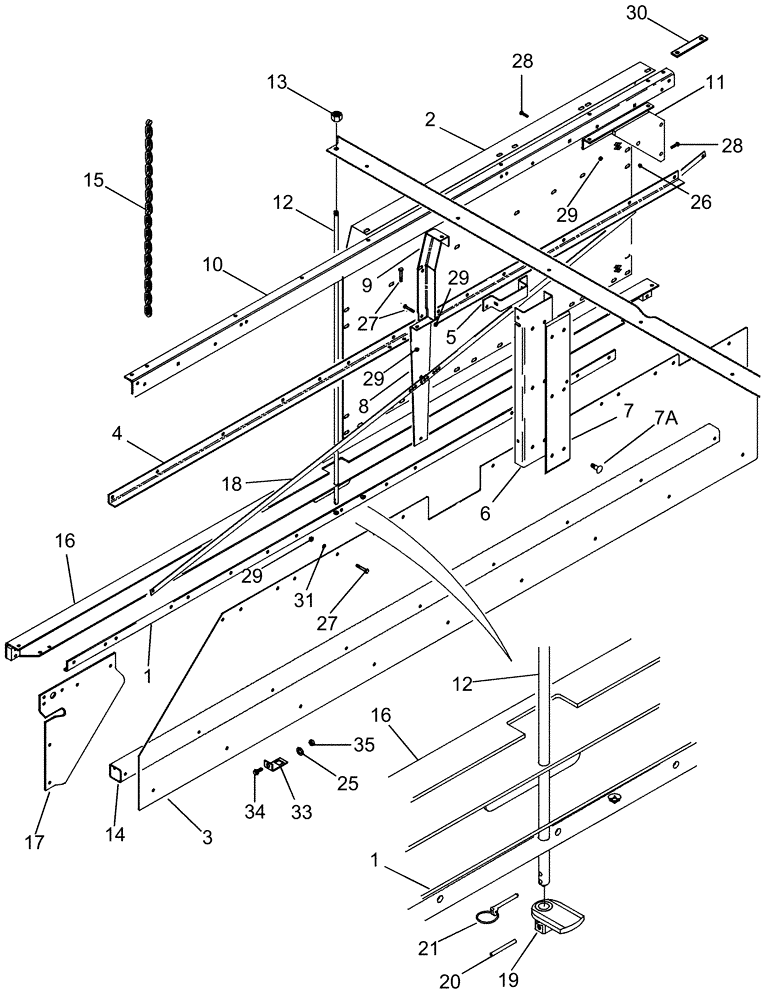

Запчасти Case IH 420 (09D-05) - LID - BASKET - LEFT HAND WALL (16) - BASKET

1

87453551

ANGLE

1шт.

2

87434519

SHEET

Basket Lid Side

2шт.

2

84494249

SHEET

Basket Lid Side, Start Year: 04-JAN-12

2шт.

3

246477A2

MUDFLAP

Basket Door Upper

1шт.

4

220418A3

ANGLE BAR

Extension End, Side

1шт.

5

183315A1

SUPPORT

Lid Guide

2шт.

6

183316A1

CHANNEL

Lid Guide, Long

1шт.

7

183347A2

BAR

Compactor Wear

1шт.

7a

278738A1

BOLT

5/16 x 1

6шт.

8

245271A2

ANGLE

Center Tie

1шт.

9

199815A2

ANGLE

Basket Side, Center Support

1шт.

10

362527A1

ANGLE BAR

Basket Grate Support

1шт.

11

228248A3

ANGLE

Cylinder Mounting

1шт.

12

230404A3

ROD

Basket Top Guide

1шт.

13

231-41110

LOCK NUT,5/8"-11, GB

1шт.

14

242078A1

TUBE,3331.7 mm Length

Upper Door Raise/Lower Lid

1шт.

15

87235C1

CHAIN

24 links, Basket Door Upper

2шт.

16

246496A1

SUPPORT

Upper Side Door, Not Part of the Basket Lid

1шт.

17

232530A3

PLATE

Not Part of the Basket Lid

1шт.

18

1979669C3

FIXING STRIP

Basket Extension

2шт.

19

243203A1

PLATE

Basket Top Lock

1шт.

20

438-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

21

A33497

LINCH PIN,4.76mm OD Pin

1шт.

25

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

1шт.

27

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

20шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

9шт.

29

231-5146

FLANGE NUT,3/8"-16

30шт.

30

284564A2

PLATE

Light Mount

1шт.

31

495-81143

WASHER,13/32" x 1 1/2" x .120"

21шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

33

87453035

CLAMP BRACKET

Basket Lock Keeper

2шт.

34

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

35

231-1446

NUT,3/8" - 16, Gr 5

2шт.

495-81147

WASHER,0.41" ID x 2" OD x 0.11" Thk

1шт.

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

10шт.

495-81137

WASHER,13/32" x 1" x .224"

2шт.

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

1шт.

230-4116

LOCK NUT,3/8"-16, GA

2шт.

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

9шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

495-21038

WASHER,5/16"

6шт.

231-4146

NUT,3/8"-16, GB

6шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

5шт.
