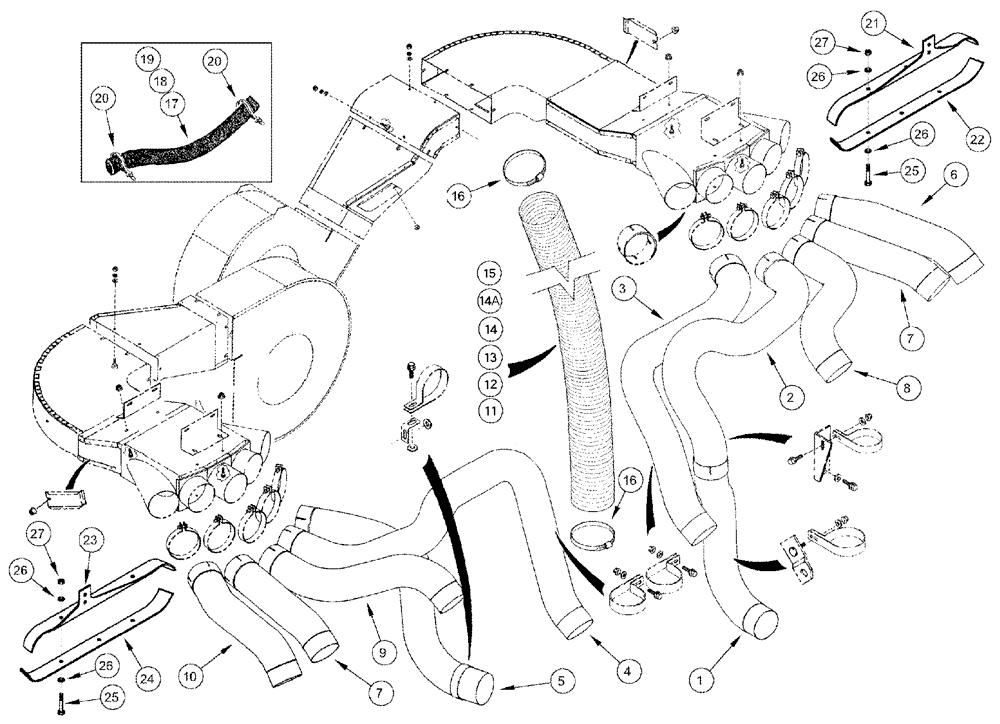

Запчасти Case IH 420 (09C-20) - AIR DUCTS AND HOSES - 5 ROW NARROW (15) - HANDLING SYSTEM

1

1988744C2

TUBE,124.6 mm OD

No. 2 Front, Lower

1шт.

2

1988742C1

TUBE

No. 2 Front, Upper

1шт.

3

1988746C1

PIPE

No. 3 Rear

1шт.

4

1988747C1

TUBE

No. 3 Front

1шт.

5

1988749C1

PIPE

No. 4 Rear

1шт.

6

1988871C1

TUBE,127.9 mm ID, 124.6 mm OD

No. 1 Rear

1шт.

7

1988872C1

TUBE

No. 1 Front, No. 5 Rear

2шт.

8

1988873C1

TUBE

No. 2 Rear

1шт.

9

1988874C1

TUBE

No. 4 Front

1шт.

10

1988876C1

TUBE,127.9 mm ID, 124.6 mm OD

No. 5 Front

1шт.

11

1266304C3

HOSE,127.00 mm ID x 685.80 mm

No. 2 Front

1шт.

Cut From 1349877CX

1шт.

12

1338078C3

AIR HOSE,127.00 mm ID x 889.00 mm

No. 4 Rear

1шт.

Cut From 1349877CX

1шт.

13

1984190C1

AIR HOSE

1651 mm (65"), No. 1 Front

1шт.

Cut From 1349877CX

1шт.

14

1984191C1

AIR HOSE

1473 mm (58"), No. 2 Rear, No. 4, No. 5 Front

2шт.

Cut From 1349877CX

1шт.

14

87546290

HOSE,127.00 mm ID x 1219.00 mm

No. 2 Rear

1шт.

Cut From 1349877CX

1шт.

14a

284528A1

HOSE,1320.80 mm

No. 1, No. 5 Rear

2шт.

Cut From 1349877CX

1шт.

15

1984192C1

AIR HOSE

1041 mm (41"), No. 3 Front and Rear

2шт.

Cut From 1349877CX

1шт.

16

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

20шт.

17

284896A1

HOSE PROTECTION

1067 mm (42"), No. 1, No. 5 Rear, No. 1, No. 3, No. 5 Front

5шт.

18

284897A1

HOSE PROTECTION

1219 mm (48"), No. 2 Rear, No. 4 Front

2шт.

19

284895A1

HOSE PROTECTION

661 mm (26"), No. 2 Front, No. 3, No. 4 Rear

3шт.

20

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

10шт.

20

1546052C1

STRAP

718 mm (28-1/4")

8шт.

21

430003A1

SUPPORT

Left Hand Upper

1шт.

22

430005A1

SUPPORT

Left Hand Lower

1шт.

23

430004A1

SUPPORT

Right Hand Upper

1шт.

24

430006A1

SUPPORT

Right Hand Lower

1шт.

25

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

6шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

12шт.

27

231-1446

NUT,3/8" - 16, Gr 5

6шт.
