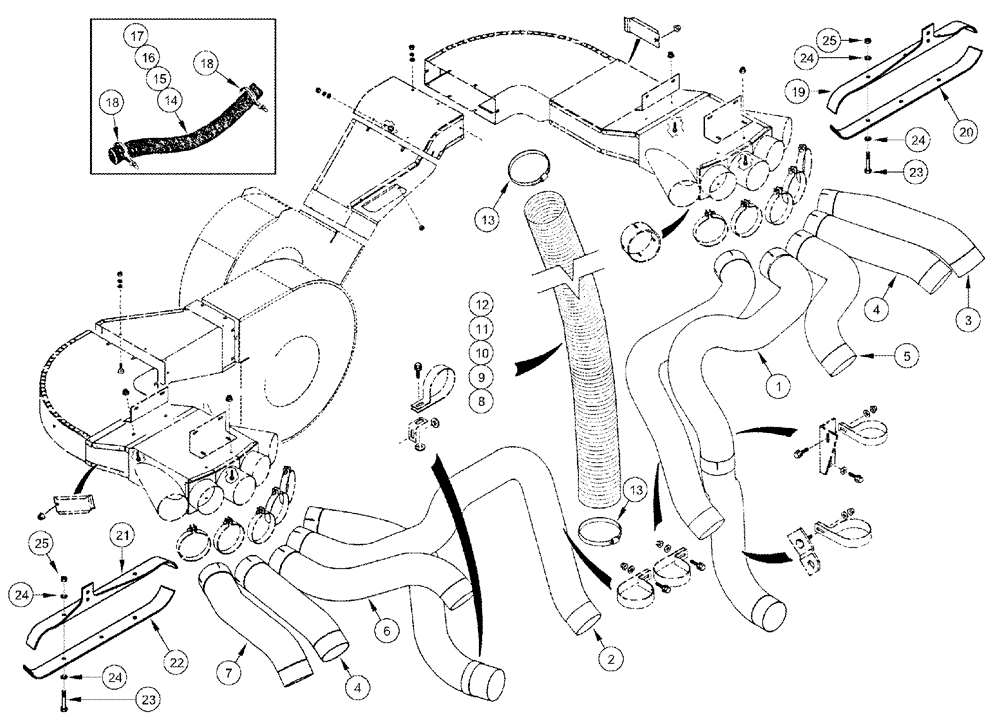

Запчасти Case IH 420 (09C-19) - AIR DUCTS AND HOSES - 4 ROW WIDE (15) - HANDLING SYSTEM

1

1988742C1

TUBE

No. 2 Front, Upper

1шт.

2

1988747C1

TUBE

No. 3 Rear

1шт.

3

1988871C1

TUBE,127.9 mm ID, 124.6 mm OD

No. 1 Rear

1шт.

4

1988872C1

TUBE

No. 1 Front, No. 4 Rear

2шт.

5

1988873C1

TUBE

No. 2 Rear

1шт.

6

1988874C1

TUBE

No. 3 Front

1шт.

7

1988876C1

TUBE,127.9 mm ID, 124.6 mm OD

No. 4 Front

1шт.

8

1984190C1

AIR HOSE

1651 mm (65"), No. 1 Front

1шт.

Cut From 1349877CX

1шт.

9

87546290

HOSE,127.00 mm ID x 1219.00 mm

No. 4 Rear, No. 3, No. 4 Front

3шт.

Cut From 1349877CX

1шт.

10

284528A1

HOSE,1320.80 mm

No. 1 Rear, No. 2 Rear

2шт.

Cut From 1349877CX

1шт.

11

1338078C3

AIR HOSE,127.00 mm ID x 889.00 mm

No. 3 Rear

1шт.

Cut From 1349877CX

1шт.

12

112424A2

AIR HOSE,127.00 mm ID x 1371.60 mm

No. 2 Front

1шт.

Cut From 1349877CX

1шт.

13

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

16шт.

14

284896A1

HOSE PROTECTION

1067 mm (42"), No. 2, No. 4 Rear, No. 2 Front

3шт.

15

284897A1

HOSE PROTECTION

1219 mm (48"), No. 1, No. 4 Front, No. 1 Rear

3шт.

16

284895A1

HOSE PROTECTION

660 mm (26"), No. 3 Rear

1шт.

17

298854A1

HOSE PROTECTION

1321 mm (52"), No. 3 Front

1шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 711 mm (28")

16шт.

19

430003A1

SUPPORT

Left Hand Upper

1шт.

20

430005A1

SUPPORT

Left Hand Lower

1шт.

21

430004A1

SUPPORT

Right Hand Upper

1шт.

22

430006A1

SUPPORT

Right Hand Lower

1шт.

23

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

6шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

12шт.

25

231-1446

NUT,3/8" - 16, Gr 5

6шт.
