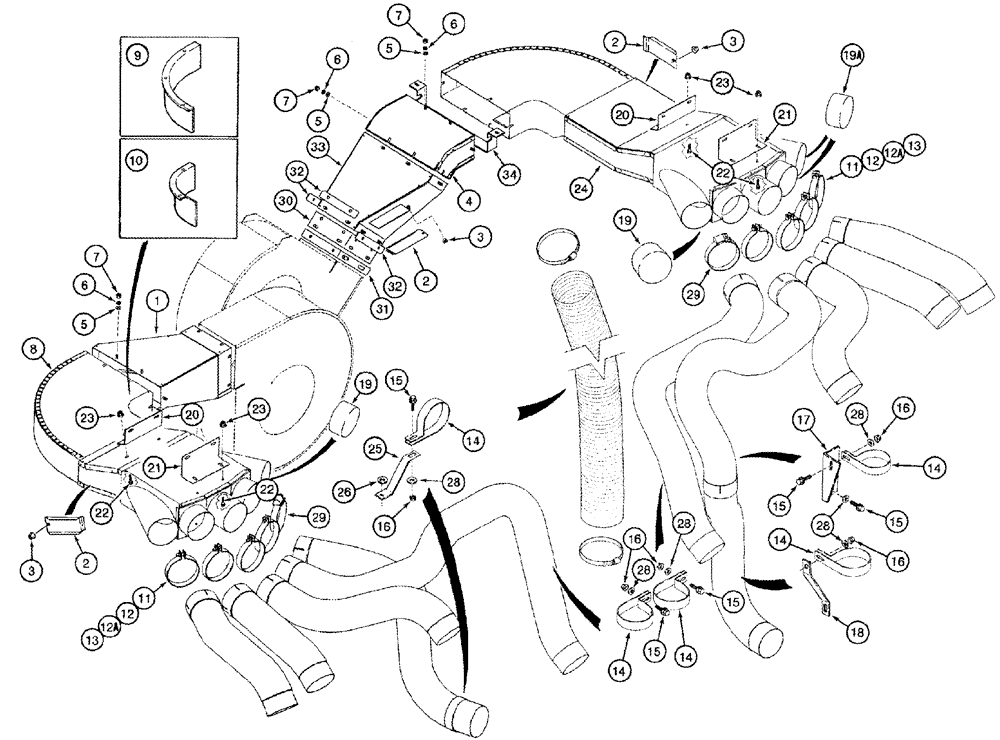

Запчасти Case IH 420 (09C-18) - AIR DUCTS AND HOSES - ALL MODELS (15) - HANDLING SYSTEM

1

1270084C1

DUCT

Right Hand

1шт.

2

1270220C1

COVER

Access Hole

4шт.

3

129-409

WING NUT,1/4"-20

4шт.

4

1270166C1

DUCT

1шт.

5

495-11034

WASHER,5/16", SAE

34шт.

6

492-11031

LOCK WASHER,5/16"

42шт.

7

425-105

NUT,5/16"-18, G5

42шт.

8

1988729C3

VENT

Inc. 9, 10, Air Plenum, Right Hand, W/Access Hole

1шт.

9

139713A1

DEFLECTOR

Right Hand, Outer

1шт.

10

139712A1

DEFLECTOR

Right Hand, Inside

1шт.

11

650988C1

CLAMP,130mm

Air Supply Duct

9шт.

12

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8-11шт.

12a

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

16-22шт.

13

231-4116

NUT,3/8"-16, GB

8-11шт.

14

1546033C1

CLAMP,127mm ID, 10.3mm Bolt Hole, P Type

2-4шт.

15

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6-7шт.

16

231-1446

NUT,3/8" - 16, Gr 5

3шт.

17

112449A1

SUPPORT

Air Supply Duct, No. 2 Drum, Front, 4 Row

1шт.

18

132150A1

SUPPORT

Air Supply Duct, No. 2 Drum, Front, 5 Row

1шт.

19

175231A1

CAP

Plenum Tube, 4 Row Wide, If Used

2шт.

19a

175231A1

CAP

Plenum Tube, 5 Row Narrow, If Used

2шт.

20

1990442C1

ANGLE

Duct Support, Rear

2шт.

21

1988854C2

ANGLE

Duct Support

2шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

24

1988738C3

VENT

Air Plenum, Left Hand, W/Access Hole

1шт.

25

132150A1

SUPPORT

1шт.

26

495-11066

WASHER,5/8", SAE

1шт.

27

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

12шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4-6шт.

29

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

If Used

2шт.

30

357558A2

AIR DUCT

1шт.

31

375371A2

STRAP

1шт.

32

375338A2

STRAP

5шт.

33

392347A3

CHANNEL

1шт.

34

375240A2

SUPPORT

1шт.
