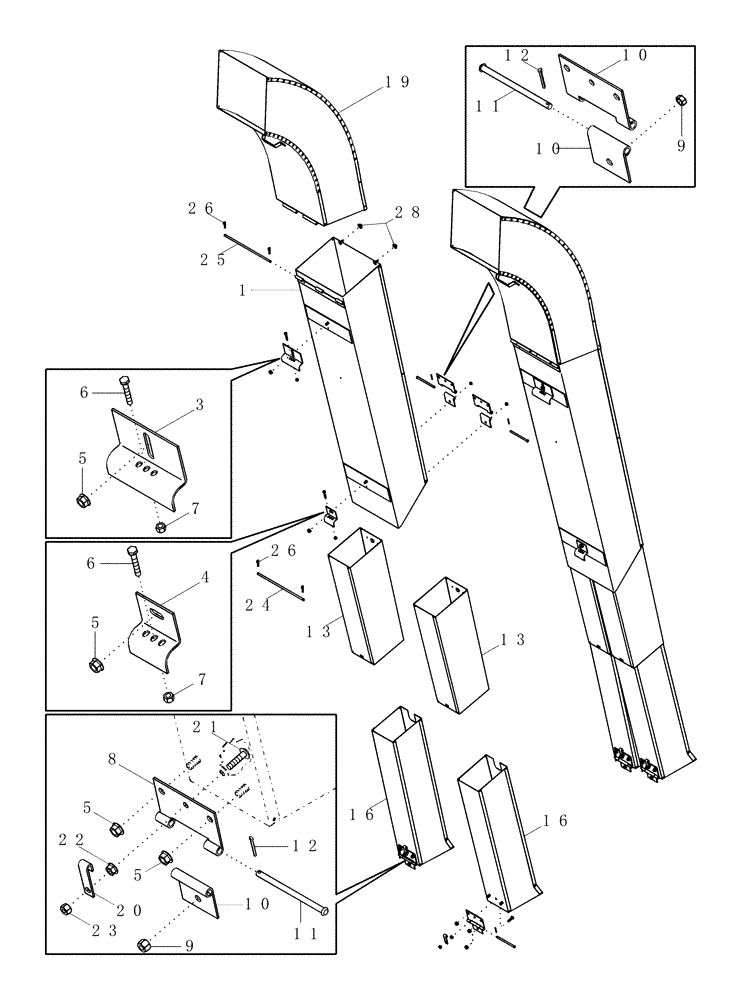

Запчасти Case IH 420 (09C-16) - CONVEYOR CHUTES - CENTER - 5 ROW NARROW (15) - HANDLING SYSTEM

1

87430730

CHUTE

Double, Upper

2шт.

3

127588A1

CLAMP

Upper

2шт.

4

127589A1

CLAMP

Lower

2шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

6

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

12шт.

7

230-4114

NUT,1/4"-20, GA

12шт.

8

1349843C1

HINGE

Female

8шт.

9

231-4116

NUT,3/8"-16, GB

8шт.

10

1270014C1

HINGE

Male

8шт.

11

1349860C1

PIN,7.94mm OD x 129mm L

8шт.

12

432-816

COTTER PIN,1/8" x 1"

8шт.

13

1349938C1

CHUTE

Female

4шт.

16

1349934C3

CHUTE

4шт.

17

425-106

NUT,3/8"-16, Cl 5

(Not Shown)

1шт.

18

492-11038

LOCK WASHER,3/8"

(Not Shown)

1шт.

19

199936A3

CHUTE

Double Center

2шт.

20

1984343C1

HOOK

Air Pipe

4шт.

21

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

23

231-4115

NUT,5/16"-18, GB

4шт.

24

233320A2

PIN,7.94mm OD x 194.5mm L

Used W/Single Conveyor Chute and Hood

1шт.

25

233321A2

PIN,7.94mm OD x 366.5mm L

Used W/Double Conveyor Chute and Hood

1шт.

26

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

2 used per Hinge Pin

1шт.

27

195-81027

WASHER,0.38" ID x 1.12" OD x 0.07" Thk

2 Used Per Hood (Not Shown)

1шт.

28

360662A1

NUT

5/16, 2 Used Per Hood

4шт.
