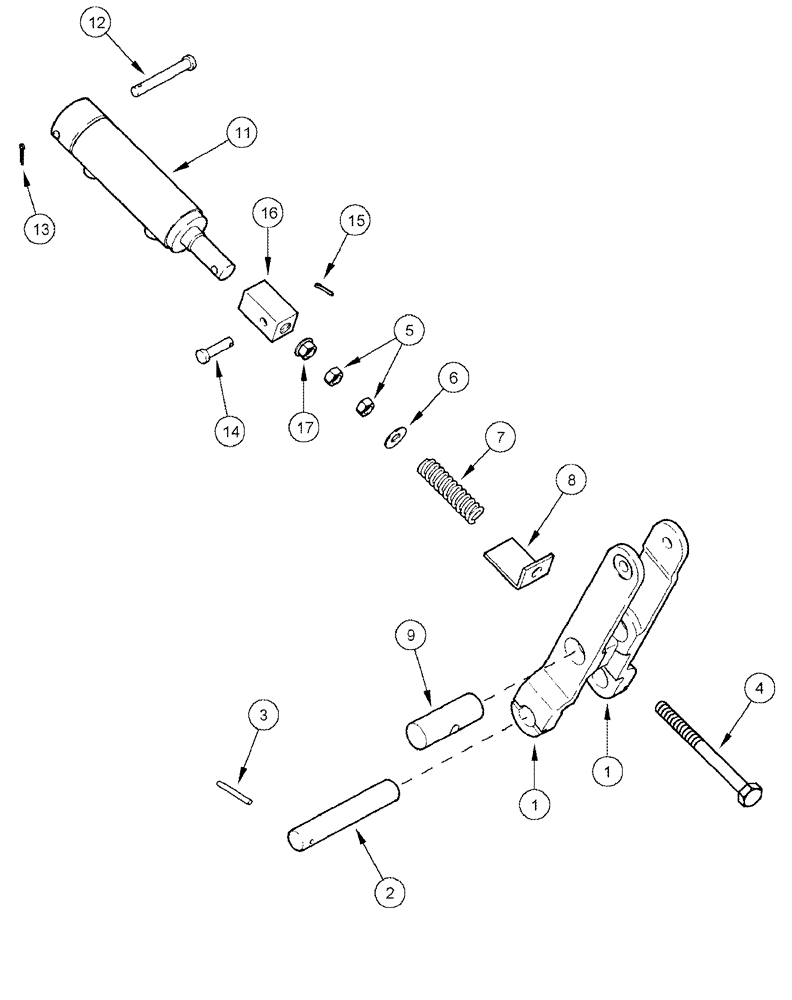

Запчасти Case IH 420 (09C-13) - REAR FAN PULLEY LINKAGE (15) - HANDLING SYSTEM

1

1990156C1

ARM

Idler Pulley

1шт.

2

1990151C1

SHAFT,25.4mm OD x 135mm L

Idler Pivot

1шт.

3

438-11232

LOCK PIN,3/16" x 2", Slotted

1шт.

4

113-2671

BOLT,Hex, 1/2" - 13 x 7", Gr 8

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

2шт.

6

495-11053

WASHER,1/2", SAE

1шт.

7

1990062C2

SPRING

Idler

1шт.

8

1990058C1

ANGLE

1шт.

9

1990152C1

PIN,31.75mm OD x 90mm L

Pivot

1шт.

11

87391858

CYLINDER

Fan Clutch

1шт.

See Figure 08-26

1шт.

87391858C

CORE-HYD CYLINDER

Return Number, CYLINDER CLUTCH - for N.A. Only

1шт.

12

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

1шт.

13

432-816

COTTER PIN,1/8" x 1"

1шт.

14

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

1шт.

15

432-616

COTTER PIN,3/32" x 1"

1шт.

16

138184A1

BLOCK

Idler

1шт.

17

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.
