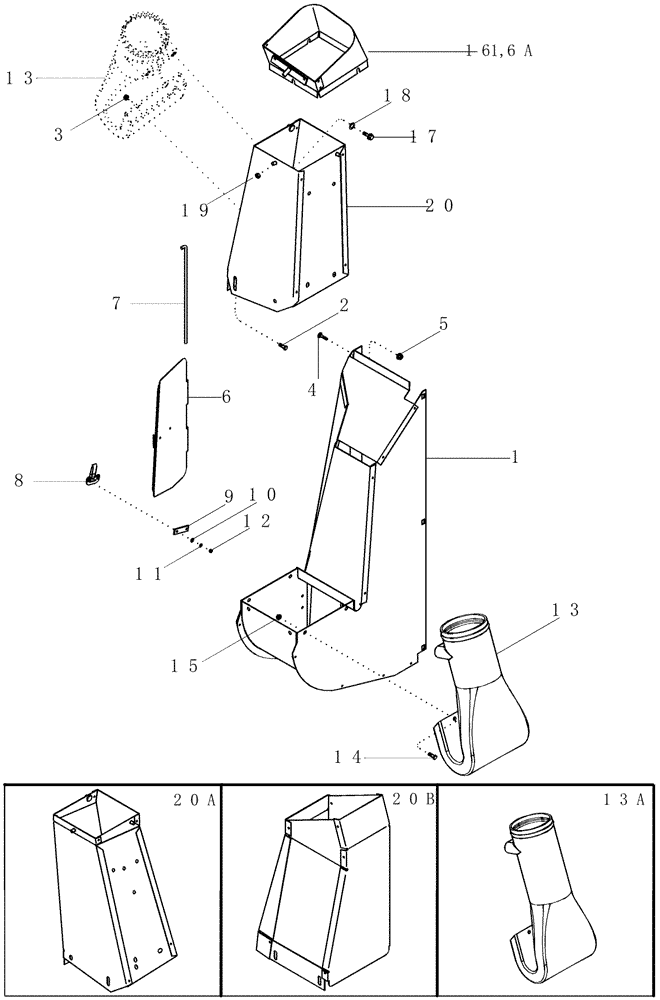

Запчасти Case IH 420 (09C-05) - DRUM OUTLETS - REAR, 4 ROW WIDE, NO. 1, 2, 3, 4, 5 ROW NARROW, NO. 1, 2, 5, 4 ROW NARROW NO. 1, 4 (15) - HANDLING SYSTEM
№
Артикул
Название
Примечание
Количество
87454858
PACKAGE
Rear Outlets, Inc. 1 - 12
1шт.
87448384
OUTLET
Rear, Inc. 1, 6 - 12
1шт.
1
NSS
NOT SOLD SEPARAT
DRUM, Outlet, Rear
1шт.
2
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
4шт.
3
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
4
434-58
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5
3шт.
5
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
3шт.
6
87448383
DOOR
1шт.
7
283953A1
PIN,6.35mm OD
1шт.
8
1333780C1
LATCH
1шт.
9
119069A1
PLATE
1шт.
10
495-31022
WASHER,#10
2шт.
11
492-11010
LOCK WASHER,#10
2шт.
431491A1
PACKAGE
Rear Nozzle, Inc. 13, 14, 15, 17 (2)
1шт.
431473A1
PACKAGE
Rear Nozzle, Inc. 13A, 14, 15, 17 (2)
1шт.
13
324164A1
NOZZLE
Rear Outlet, Short, 4 Row Wide, No. 2 and 3
1шт.
13a
283596A1
NOZZLE
Wide, 4 Row Wide, No. 1 and 4, 5 Row Narrow, No. 1, 2 and 5
1шт.
14
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
2шт.
15
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
431472A1
PACKAGE
Rear Transition, Inc. 16, 19, 21
1шт.
431475A1
PACKAGE
Rear Transition, Inc. 16A, 19, 21
1шт.
16
1545953C1
HOUSING
Transition, Angled, 4 Row Wide, No. 1, 5 Row Narrow, No. 1
1шт.
16a
1990497C1
HOUSING
Transition, Straight, 4 Row Wide, No. 2 and 4, 5 Row Narrow, No. 2 and 5
1шт.
17
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
4шт.
18
495-81120
WASHER,.344" x 1 1/4" x .120"
2шт.
19
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
3шт.
431471A1
PACKAGE
Rear Extension, Inc. 20, 2, 3
1шт.
431481A1
PACKAGE
Rear Extension, Inc. 20A, 2, 3
1шт.
431497A1
PACKAGE
Rear Extension, Inc. 20B, 2, 3, 21
1шт.
20
283750A4
EXTENSION
Rear, 4 Row Wide, No. 1 and 4, 5 Row Narrow, No. 1, 2 and 5
1шт.
20a
283755A3
EXTENSION
Rear, 4 Row Wide, No. 2
1шт.
20b
338756A1
CHUTE (DOWNWARD)
Rear, 4 Row Wide, No. 3
1шт.
21
231-4116
NUT,3/8"-16, GB
(Not Shown)
1шт.
Выбрано товаров: 34
