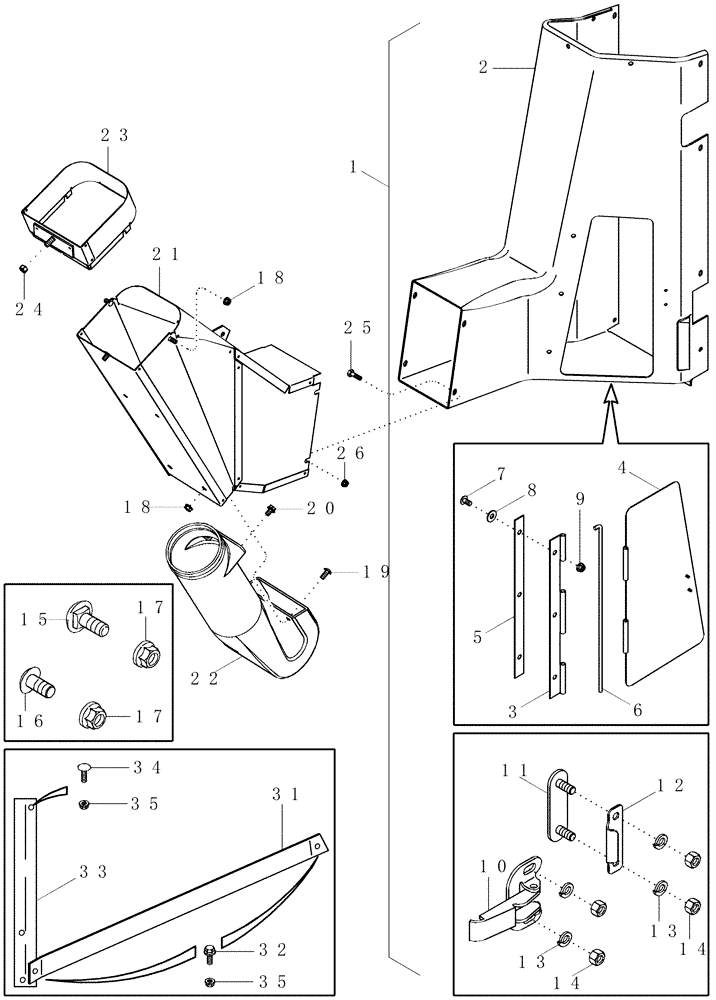

Запчасти Case IH 420 (09C-01) - DRUM OUTLETS - FRONT - 5 ROW NARROW, NO. 1, 3 AND 4, 4 ROW NARROW, NO. 1 , 2 AND 3 (15) - HANDLING SYSTEM
№
Артикул
Название
Примечание
Количество
87454859
PACKAGE
Front Outlets, Inc. 1 - 17
1шт.
1
87426118
OUTLET
Front, Inc. 2 - 14
1шт.
2
NSS
NOT SOLD SEPARAT
OUTLET, Front
1шт.
3
87426125
HINGE
1шт.
4
87426121
DOOR
1шт.
5
87430153
STRAP
1шт.
6
87426124
PIN
1шт.
7
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
3шт.
8
496-41034
WASHER,.344" x 1" x .098", HDN
3шт.
9
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
3шт.
10
1333780C1
LATCH
Hinge, Access Door
1шт.
11
119069A1
PLATE
1шт.
12
87430154
STRAP
1шт.
13
492-11010
LOCK WASHER,#10
4шт.
15
434-58
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5
3шт.
16
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
4шт.
17
231-4115
NUT,5/16"-18, GB
7шт.
18
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
19
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
1шт.
20
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
2шт.
431728A1
PACKAGE
Front Extension, Inc. 21, 18 (6), 19 (2), 25, 26
1шт.
431797A1
PACKAGE
Front Extension, Inc. 21A, 18 (6), 19 (2), 25, 26
1шт.
21
1349927C2
HOUSING
Front Outlet, 5 Row Narrow, No. 1 and 4
1шт.
21a
1349962C2
HOUSING
Front Outlet, 5 Row Narrow, No. 3 (Not Shown)
1шт.
22
1984189C2
NOZZLE
Front Outlet, Long
1-2шт.
431244A1
PACKAGE
Front Transition, Inc. 23, 24, 18 (2)
1шт.
23
1546036C1
ADAPTER
Front Outlet Extension, 5 Row Narrow, No. 1 and 4
1шт.
24
231-4116
NUT,3/8"-16, GB
1шт.
25
411-512
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
4шт.
26
131-889
PUSH-ON NUT,5/16", Push-on
4шт.
31
1546257C1
SUPPORT
Outlet, Front
1шт.
31
1546259C1
SUPPORT
Outlet, Front
1шт.
32
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
2шт.
33
1546255C3
ANGLE BAR
Outlet Support, Front
1шт.
33
1546258C1
ANGLE BAR
Outlet Support, Front
1шт.
34
434-58
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5
4шт.
35
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
6шт.
Выбрано товаров: 38
