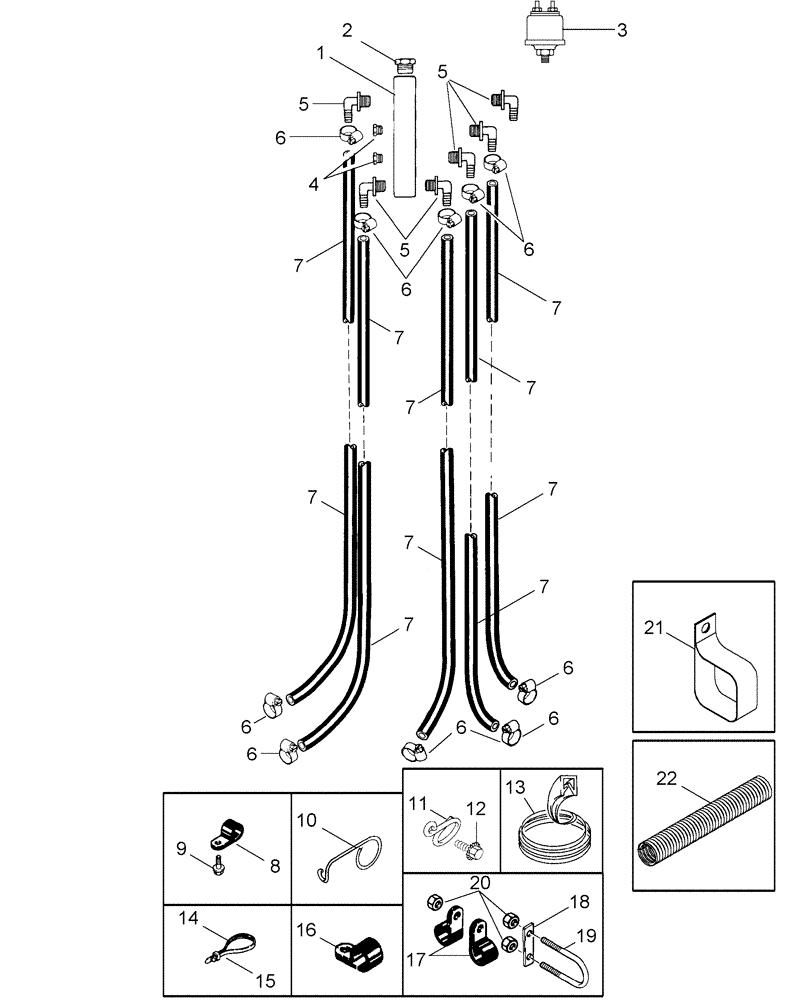

Запчасти Case IH 420 (09B-04) - MOISTENER SYSTEM - WATER LINES (14) - WATER SYSTEM

1

87444651

MANIFOLD

Water/Lube

1шт.

2

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1шт.

3

141062A1

SENSOR

80 psi

1шт.

4

111491A1

PLUG

1/4 PT

2-3шт.

5

1546018C1

ELBOW

1/4 PT x 3/8 stem

5-6шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

12-14шт.

7

1546022C1

HOSE

Manifold Valve to Drum, 5080 mm (200"), Cut From 1338159CX

4-5шт.

Note: See Figure 09B-03 for water pump mounting and lines

1шт.

8

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

3-4шт.

9

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

2-3шт.

10

120903A1

SUPPORT

Long

2шт.

11

189300A1

BRACKET

Short

4шт.

12

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

2шт.

13

413776A1

PROTECTION STRIP

171 mm (6-3/4"), Cut From 1330108CX

1шт.

13

228634A1

PROTECTION STRIP

89 mm (3-1/2"), Cut From 1330108CX

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

7шт.

15

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

4шт.

16

87000226

HOSE CLAMP

2" ID

1шт.

17

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

8-10шт.

18

87551255

STRAP

2шт.

19

87551254

U-BOLT

3/8

2шт.

20

425-146

JAM NUT,3/8" - 16, Gr 5

14шт.

21

1301387C2

CLIP

Square

1шт.

22

1546371C1

PROTECTOR

Conduit, 3048 mm (120")

1шт.
