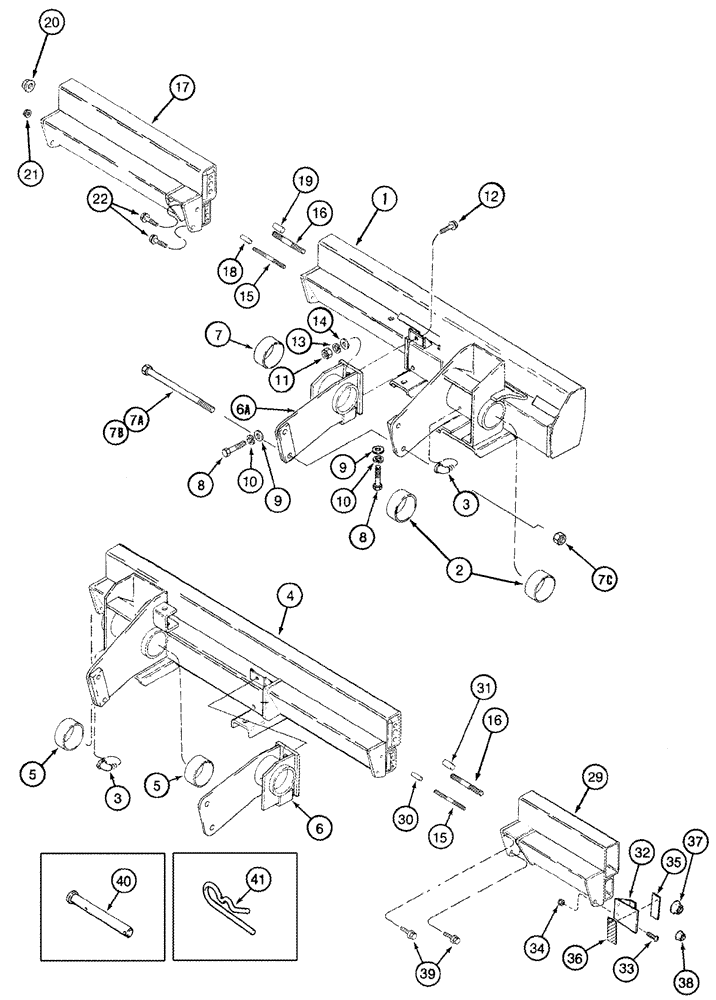

Запчасти Case IH 420 (09A-48) - TOOLBARS AND EXTENSIONS - 4 ROW WIDE (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
1
84160569
EXTENSION
Main Toolbar, Left Hand, Inc. 2
1шт.
2
84160502
BUSHING,101.7mm ID x 108.39mm OD x 52.32mm L
2шт.
3
217-20
ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male
5шт.
4
84160566
EXTENSION
Main Toolbar, Right Hand, Inc. 5
1шт.
5
84160502
BUSHING,101.7mm ID x 108.39mm OD x 52.32mm L
2шт.
6
84160571
SUPPORT
Tool Bar, Right Hand, Inc. 7
2шт.
6a
84160570
SUPPORT
Tool Bar, Left Hand, Inc. 7
1шт.
7
84160502
BUSHING,101.7mm ID x 108.39mm OD x 52.32mm L
4шт.
7a
326-12160
BOLT,Hex, 3/4" - 10 x 10", Gr 8
2шт.
7b
326-12176
BOLT,Hex, 3/4" - 10 x 11", Gr 8
2шт.
7c
231-41312
LOCK NUT,3/4"-10, GB
4шт.
8
426-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8
4шт.
9
496-41066
WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk
2шт.
10
492-11062
BEARING WASHER,5/8"
2шт.
11
329-1010
NUT,5/8"-11, G8
2шт.
12
426-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8
2шт.
13
492-11062
BEARING WASHER,5/8"
4шт.
14
496-41066
WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk
4шт.
15
1546294C1
STUD
13 x 113 mm
2шт.
16
1546293C1
STUD
19 x 113 mm
2шт.
17
294714A1
EXTENSION
Left Hand, 4 Row Wide, Inc. 18, 19
1шт.
18
37-11236
DOWEL,3/4" x 2 1/4"
1шт.
19
37-11632
DOWEL,1" x 2"
1шт.
20
232-53112
FLANGE NUT,Flg, 3/4"-10
2шт.
22
409-7820
BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl
2шт.
29
1546292C1
EXTENSION
Right Hand, 4 Row Wide, Inc. 30, 31
1шт.
30
37-11236
DOWEL,3/4" x 2 1/4"
1шт.
31
37-11632
DOWEL,1" x 2"
1шт.
32
1994997C1
BRACKET
Reflector Toolbar
2шт.
33
477-73116
SERRATED SCREW,Truss HD, 5/16" - 18 x 1"
2шт.
34
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
35
1284374C1
REFLECTOR,Reflector Red
Red
2шт.
36
1284365C2
REFLECTOR
Amber
2шт.
37
232-53112
FLANGE NUT,Flg, 3/4"-10
2шт.
39
409-7820
BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl
2шт.
40
118485A1
PIN,12.7mm OD x 150.75mm L
Support Hold-Down
1шт.
41
586591R1
COTTER PIN
1/8
1шт.
Выбрано товаров: 39
