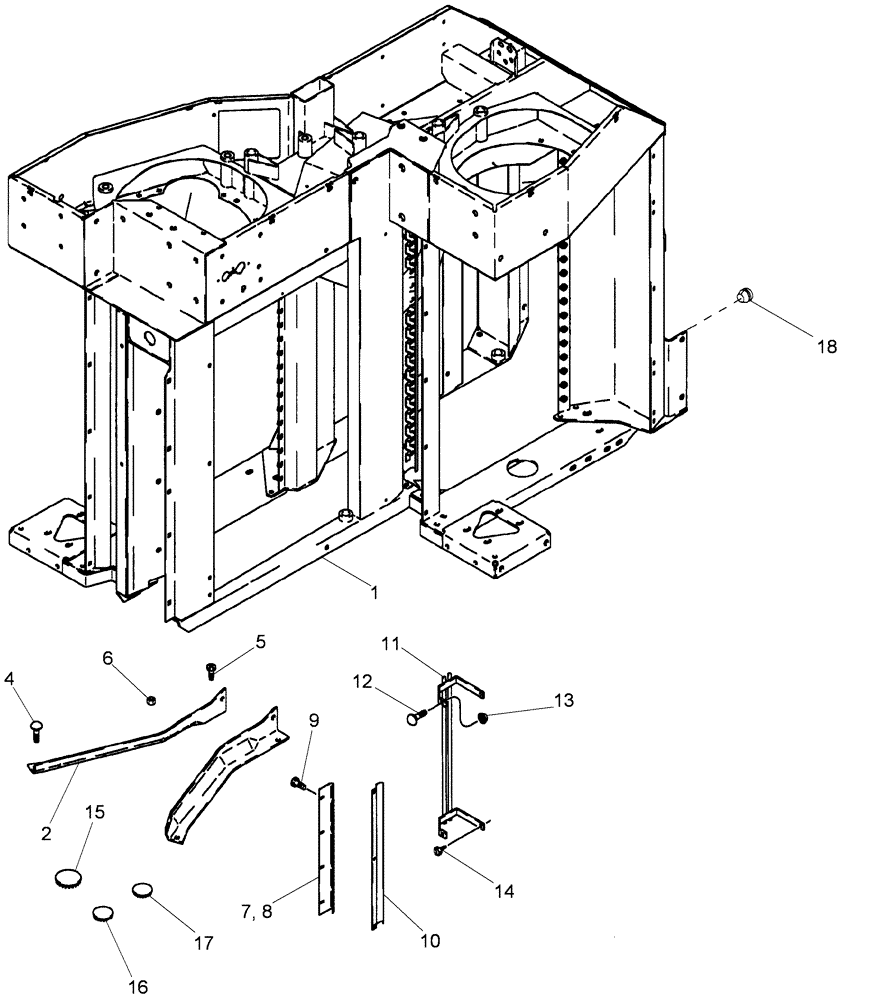

Запчасти Case IH 420 (09A-39) - DRUM HOUSING SERVICE KIT (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
87479159
FRAME
DRUM HOUSING SERVICE KIT, Inc. 1 - 6, Also Includes: See Figure(s) 09A-24, Ref. 33 - 37, 09A-29, Ref. 30 - 33; 09A-38 Ref. 9 - 19
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING, Drum Frame, Order 1545965C4
1шт.
2
1990342C2
ANGLE BAR
Wear, Left Hand
2шт.
3
1990343C2
ANGLE BAR
Wear, Right Hand
2шт.
4
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
4шт.
5
477-73116
SERRATED SCREW,Truss HD, 5/16" - 18 x 1"
4шт.
6
231-5146
FLANGE NUT,3/8"-16
8шт.
7
1990345C1
PLATE
Vine Knife, Slat Bar Post, Right Hand
1шт.
8
1988970C2
PLATE
Vine Knife, Slat Bar Post, Left Hand
1шт.
9
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
8шт.
10
1990349C1
PLATE
Vine Knife, Trash Post, Left Hand and Right Hand
1шт.
11
108497A1
GRATE
Trash
1шт.
12
411-512
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
6шт.
13
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
6шт.
14
276-1478
SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"
2шт.
15
223796C2
PLUG
13/32 ID
2шт.
16
205-78
HOLE PLUG BUTTON,9/32"
4шт.
17
205-80
HOLE PLUG BUTTON,11/32"
2шт.
18
86976972
GROMMET
2шт.
431246A1
PACKAGE
Completing Parts, Drum #1, All 4 Row Wide; Drums #1, 4, All 5 Row Narrow; Inc. 13 (2), 15A (2), 15B (4), 15C (2), Plus (2) of 515-23381, (1) of 1288934C1 Decal
1шт.
431492A1
PACKAGE
Completing Parts, Drum #2, All 4 Row Wide; Inc. 13 (5), 15A (2), 17 (2), Plus (2) of 515-23381, 409-7612, (5) of 409-7512, (1) of 1288935C1 Decal
1шт.
431519A1
PACKAGE
Completing Parts, Drum #3, All 4 Row Wide; Inc. 15 (5), 15A (2), 15B, 15C, Plus (2) of 409-77612, 515-23381, (5) of 409-7512, (1) of 1288936C1 Decal
1шт.
431476A1
PACKAGE
Completing Parts, Drum #4, All 4 Row Wide; Inc. 15 (1) 15A (2), 15B, 15C, Plus (1) of 409-7512, 515-23381, (1) of 1288937C1 Decal
1шт.
431769A1
PACKAGE
Completing Parts, Drum #2, All 5 Row Narrow, Inc. 15A (2), Plus See Figure 09C-03, Ref 37 - 40
1шт.
87454855
PACKAGE
Completing Parts, Drum #3, All 5 Row Narrow
1шт.
431833A1
PACKAGE
Completing Parts, Drum #5, All 5 Row Narrow
1шт.
