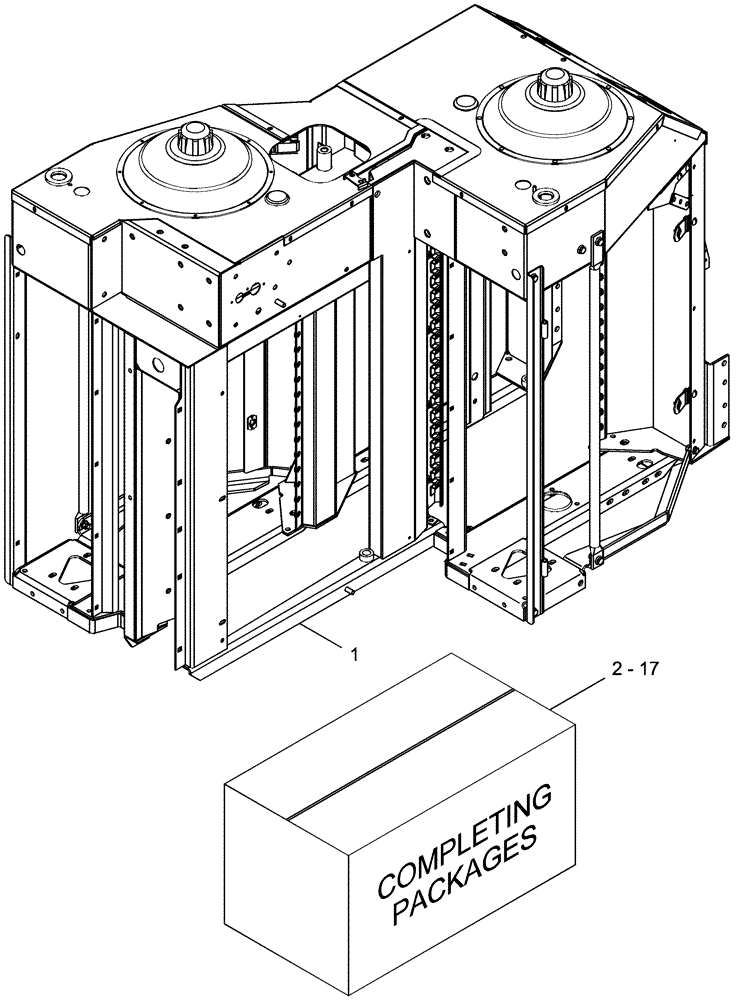

Запчасти Case IH 420 (09A-38) - DRUM SERVICE ASSEMBLIES / COMPLETING PACKAGES (13) - PICKING SYSTEM

1

87452669

DRUM

Basic Serviceable Assy., Drums #1, 3, 4, 4 Row Wide; Drums #1, 3, 4, 5, 5 Row Narrow

1шт.

1

87452671

DRUM

Basic Serviceable Assy., Drum #2, 4 Row Wide; Drum #2, 5 Row Narrow

1шт.

1

87452670

DRUM

Basic Serviceable Assy., Drums #1, 3, 4, 4 Row Wide High Yield; Drums #1, 3, 4, 5, 5 Row Narrow High Yield

1шт.

1

87452672

DRUM

Basic Serviceable Assy., Drum #2, 4 Row Wide High Yield; #2, 5 Row Narrow High Yield

1шт.

2

87454849

PACKAGE

Rotor Doors, All 4 Row Wide Drums; Drums #1, 2, 4, 5, 5 Row Narrow Drum, See Figure 09A-38

1шт.

2a

87454852

PACKAGE

Rotor Doors, Drum #3, 5 Row Narrow, See Figure 09A-38

1шт.

4

87454857

PACKAGE

Front Outlets, All 4 Row Wide Drums, Drum #5, 5 Row Narrow, See Figure 09C-02

1шт.

4a

87454859

PACKAGE

Front Outlets, Drums #1, 3, 4, 5 Row Narrow, See Figure 09C-01

1шт.

5

431245A1

PACKAGE

Front Nozzles, All 4 Row Wide Drums; Drum #1, 3, 4, 5, 5 Row Narrow, See Figure 09C-02

1шт.

6

87454858

PACKAGE

Rear Outlets, All 4 Row Wide Drums; Drums # 1, 2, 5, 5 Row Narrow, See Figure 09C-05

1шт.

6a

87454861

PACKAGE

Rear Outlets, Drum #3, 5 Row Narrow, See Figure 09C-04

1шт.

7

431491A1

PACKAGE

Rear Nozzles, Drums #2, 3, 4 Row Wide, See Figure 09C-05

1шт.

7a

431473A1

PACKAGE

Rear Nozzles, Drum #1, #4, 4 Row Wide; Drum #1, #4, #5, 5 Row Narrow, Drums #1, 5, 5 Row Narrow High Yield, See Figure 09C-05

1шт.

8

431244A1

PACKAGE

Front Transition, Drum #1, #3, 4 Row Wide, Drums #1, 4, 5 Row Narrow, See Figure 09C-01, 09C-02

1шт.

8a

431474A1

PACKAGE

Front Transition, Drum #4, 4 Row Wide; Drum #5, 5 Row Narrow, See Figure 09C-02

1шт.

9

431475A1

PACKAGE

Rear Transition, Drum #2, #4, All 4 Row Wide; Drums #2, 5, All 5 Row Narrow, See Figure 09C-05

1шт.

9a

431472A1

PACKAGE

Rear Transition,Drum #1, 4 Row Wide, Drum #1, 5 Row Narrow, See Figure 09C-06

1шт.

10

431243A1

PACKAGE

Front Extension, Drum #1, 4, 4 Row Wide, Drum #5, 5 Row Narrow, See Figure 09C-02

1шт.

10a

431480A1

PACKAGE

Front Extension, Drum #2, 4 Row Wide, See Figure 09C-02

1шт.

10b

431496A1

PACKAGE

Front Extension, Drum #3, 4 Row Wide, See Figure 09C-02

1шт.

10c

431728A1

PACKAGE

Front Extension, Drums #1, 4, 5 Row Narrow, See Figure 09C-01

1шт.

10d

431797A1

PACKAGE

Front Extension, Drum #3, 5 Row Narrow, See Figure 09C-01

1шт.

11

431471A1

PACKAGE

Rear Extension, Drum #1, 4 Row Wide; Drums #1, 2, 5, 5 Row Narrow, See Figure 09C-05

1шт.

11a

431481A1

PACKAGE

Rear Extension, Drum #2, 4 Row Wide, See Figure 09C-05

1шт.

11b

431497A1

PACKAGE

Rear Extension, Drum #3, 4 Row Wide, See Figure 09C-05

1шт.

11c

431798A1

PACKAGE

Rear Extension, Drum #3, 5 Row Narrow, See Figure 09C-04

1шт.

12

431240A1

PACKAGE

Gearbox, Drum #1, 4 Row Wide; Drum #1, 5 Row Narrow, See Figure 09A-10

1шт.

12a

431278A1

PACKAGE

Gearbox, Drum #2, 4 Row Wide, See Figure 09A-11

1шт.

12b

431279A1

PACKAGE

Gearbox, Drum #3, 4 Row Wide, See Figure 09A-13

1шт.

12c

431280A1

PACKAGE

Gearbox, Drum #4, 4 Row Wide; Drum #5, 5 Row Narrow, See Figure 09A-15

1шт.

12d

431758A1

PACKAGE

Gearbox, Drum #2, 5 Row Narrow, See Figure 09A-09

1шт.

12e

431789A1

PACKAGE

Gearbox, Drum #3, 5 Row Narrow, See Figure 09A-14

1шт.

12f

431636A1

PACKAGE

Gearbox, Drum #4, 5 Row Narrow, See Figure 09A-12

1шт.

13

433188A1

PACKAGE

Gearbox Completing, Drums #2, 3, 4 Row Wide,See Figure(s) 09A-11, 09A-13

1шт.

13a

433186A1

PACKAGE

Gearbox Completing, Drum #4, 4 Row Wide, See Figure 09A-10

1шт.

13b

433189A1

PACKAGE

Gearbox Completing, Drum #3, 5 Row Narrow, See Figure 09A-14

1шт.

13c

433187A1

PACKAGE

Gearbox Completing, Drums #2, 4, 5 Row Narrow, See Figure(s) 09A-09, 09A-12

1шт.

14

414357A1

PACKAGE

Plant Lifter W/Automatic Height Control, Drum #1, #4, All 4 Row Wide; Drums #1, 3, 4, 5, 5 Row Narrow, See Figure(s) 09A-27, 09A-28, 09A-30

1шт.

14a

414358A1

PACKAGE

Plant Lifter w/o Automatic Height Control, Drum #2, #3, All 4 Row Wide; Drum #2, 5 Row Narrow, See Figure(s) 09A-27

1шт.

15

448177A1

PACKAGE

Automatic Height Control Completing with Ladder Latch, Drum #1, All 4 Row Wide; Drum #1, 5 Row Narrow, See Figure(s) 09A-30

1шт.

15a

431241A1

PACKAGE

Automatic Height Control Completing without Ladder Latch, Drum #4, All 4 Row Wide; Drum #3, #4, #5, 5 Row Narrow, See Figure(s) 09A-30, 09A-38

1шт.

15b

431281A1

PACKAGE

Automatic Height Control Fillers, Drums #2, 3, 4 Row Wide; Drum #2, 5 Row Narrow, See Figure 09A-38

1шт.

16

431246A1

PACKAGE

Completing Parts, Drum #1, 4 Row Wide; Drum #1, #4, 5 Row Narrow, See Figure 09A-39

1шт.

16a

431492A1

PACKAGE

Completing Parts, Drum #2, 4 Row Wide, See Figure 09A-40

1шт.

16b

431519A1

PACKAGE

Completing Parts, Drum #3, 4 Row Wide, See Figure 09A-40

1шт.

16c

431476A1

PACKAGE

Completing Parts, Drum #4, 4 Row Wide, See Figure 09A-40

1шт.

16d

431769A1

PACKAGE

Completing Parts, Drum #2, 5 Row Narrow

1шт.

16e

87454855

PACKAGE

Completing Parts, Drum #3, 5 Row Narrow

1шт.

16f

431831A1

PACKAGE

Completing Parts, Drum #4, 5 Row Narrow

1шт.

16g

431833A1

PACKAGE

Completing Parts, Drum #5, 5 Row Narrow

1шт.

17

433187A1

PACKAGE

Tread Assy.

1шт.
