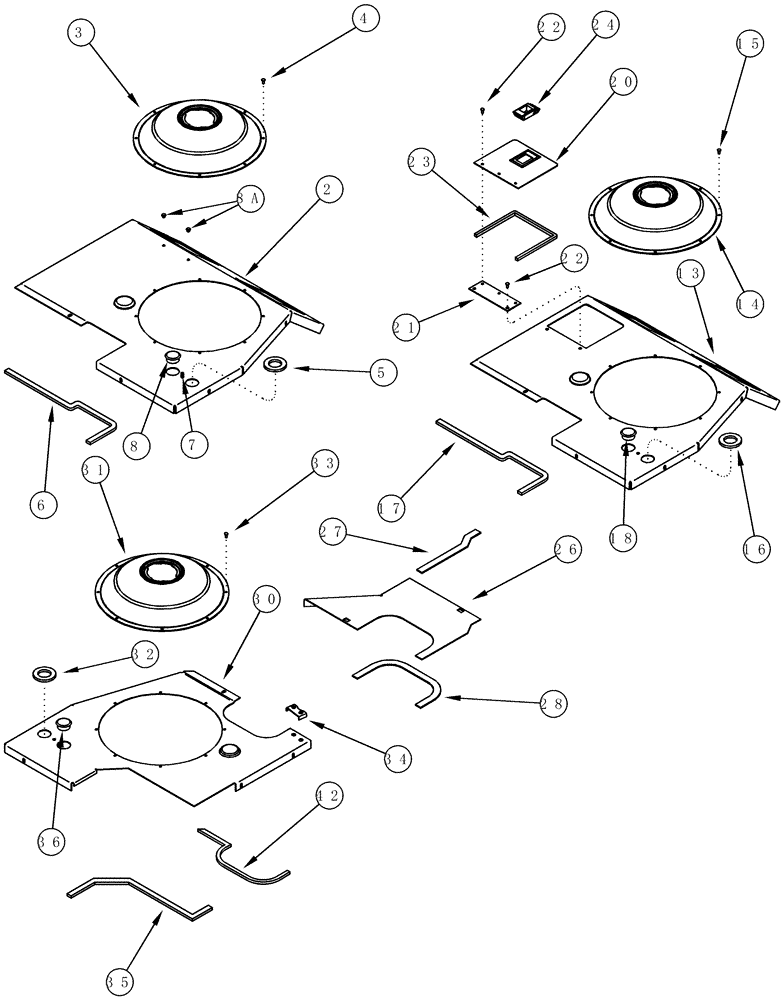

Запчасти Case IH 420 (09A-36) - DRUM COVERS (13) - PICKING SYSTEM

1

1982627C2

COVER ASSY

Front, Right Hand, Inc. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

COVER, Top Front

1шт.

3

1982649C1

COVER

Drum Rotor

1шт.

4

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

5

1990287C1

GASKET

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, 540 mm (21-1/4"), Cut From 195917C1

1шт.

7

51-12510

STUD

1шт.

8

353-414

PLUG,Dome, 1.375" Hole, Nylon

Top cover

2шт.

8a

353-403

PLUG,Dome, .437" hole, Nylon

2шт.

9

673689R1

NUT

1/4 (Not Shown)

4шт.

10

104329C1

NUT

1/4

5шт.

11

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

10шт.

433283A1

PACKAGE

Drum Covers, Operator Presence, Inc. 12, 19, 24, Also Inc. 14 - 16, 23 - 25 on Figure 09A-36

1шт.

12

1982724C1

COVER ASSY

Front, Right Hand, Drum Number 2, With Opening For Operator Presence System, Inc. 13 - 23

1шт.

13

NSS

NOT SOLD SEPARAT

COVER, Top Front

1шт.

14

1982649C1

COVER

Drum Rotor

1шт.

15

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

16

1990287C1

GASKET

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL, 540 mm (21-1/4"), 195917C1

1шт.

18

353-414

PLUG,Dome, 1.375" Hole, Nylon

Top cover

2шт.

19

1982665C2

COVER ASSY

Access, Large, All 4 and 5 Row, Inc. 20 - 23

2-3шт.

20

1982666C2

COVER

Access

1шт.

21

1982668C1

HINGE

Access Cover

1шт.

22

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

3шт.

23

1994969C1

SEALING STRIP

450 mm (17-3/4"), Cut From 1994968C1

1шт.

24

1982673C1

LATCH

Cover

1шт.

25

1990261C2

COVER ASSY

Top, Center, Inc. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

COVER, Top, Center

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL, 262 mm (10-5/16"), Cut From 195917C1

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL, 390 mm (15-3/8"), Cut From 195917C1

1шт.

29

1982764C2

COVER ASSY

Top, Rear, Inc. 30 - 35

1шт.

30

NSS

NOT SOLD SEPARAT

COVER, Top Rear

1шт.

31

1982649C1

COVER

Drum Rotor

1шт.

32

1990287C1

GASKET

1шт.

33

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

34

NSS

NOT SOLD SEPARAT

SEALl, 80 mm (3-3/16"), Cut From 187874C2

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL, 600 mm (23-5/8"), Cut From 195917C2

2шт.

36

353-414

PLUG,Dome, 1.375" Hole, Nylon

Top cover

1шт.

37

280444A1

CATCH PLATE

Access Cover Latch, Turkey Only, (Not Shown)

1шт.

38

121-138

BOLT,Hex Flg, #10-24 x 1/2", Serr

Access Cover Latch, Turkey Only, (Not Shown)

1шт.

39

231-51409

SERRATED NUT,Flg, USR, #10-24

Access Cover Latch, Turkey Only (Not Shown)

1шт.
