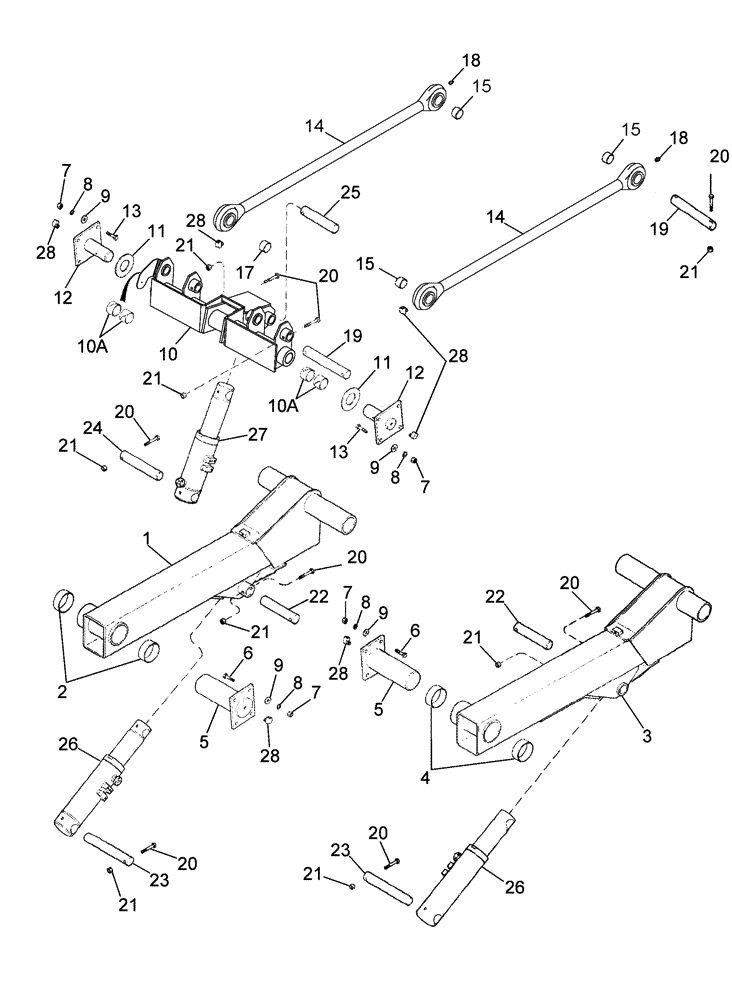

Запчасти Case IH 420 (09A-30) - DRUM LIFT ARMS - 5 ROW NARROW AND 4 ROW NARROW (13) - PICKING SYSTEM

1

84160576

LOWER LINK

Left Hand, Inc. 2

1шт.

2

84160502

BUSHING,101.7mm ID x 108.39mm OD x 52.32mm L

2шт.

3

84160565

ARM ASSY.

Right Hand, Inc. 4

1шт.

4

84160502

BUSHING,101.7mm ID x 108.39mm OD x 52.32mm L

2шт.

5

1983050C2

PIN

2шт.

6

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

8шт.

7

429-108

NUT,1/2"-13, G8

16шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

9

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

16шт.

10

84164267

PIVOT ASSY.

Kickback, Inc. 10A

1шт.

10a

669644R1

BUSHING

4шт.

11

495-31238

WASHER,2.38" ID x 4.75" OD x 0.22" Thk

2шт.

12

1983044C1

PIN

Kickback Pivot

2шт.

13

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

8шт.

14

297464A1

LINK ASSY.

2шт.

15

320425A1

SPACER

4шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

19

1982990C2

PIN

4шт.

20

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

14шт.

21

231-4138

LOCK NUT,1/2"-13, GB

14шт.

22

1983053C2

PIN

Lift Cylinder, Upper

2шт.

23

1983054C2

PIN,44.21mm OD x 301mm L

Lift Cylinder, Lower

2шт.

24

1982991C1

PIN

Kickback Cylinder, Lower

1шт.

25

1983053C1

PIN

Kickback Cylinder, Upper

1шт.

26

87272663

HYDRAULIC CYLINDER,88.9mm Rod, 271.5mm Stroke

Drum Lift

2шт.

See Figure 08-23

1шт.

27

87272664

CYLINDER ASSY.,88.9mm Rod, 184.6mm Stroke

Drum Tilt

1шт.

See Figure 08-38

1шт.

28

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

6шт.

29

295528A1

SWITCH

Proximity, Drum Lift, Drum Tilt (Not Shown)

3шт.

See Figure 04-08

1шт.

30

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

(Not Shown)

1шт.

31

461-32516

HEX SOC SCREW,1/4"-20 x 1"

(Not Shown)

4шт.
