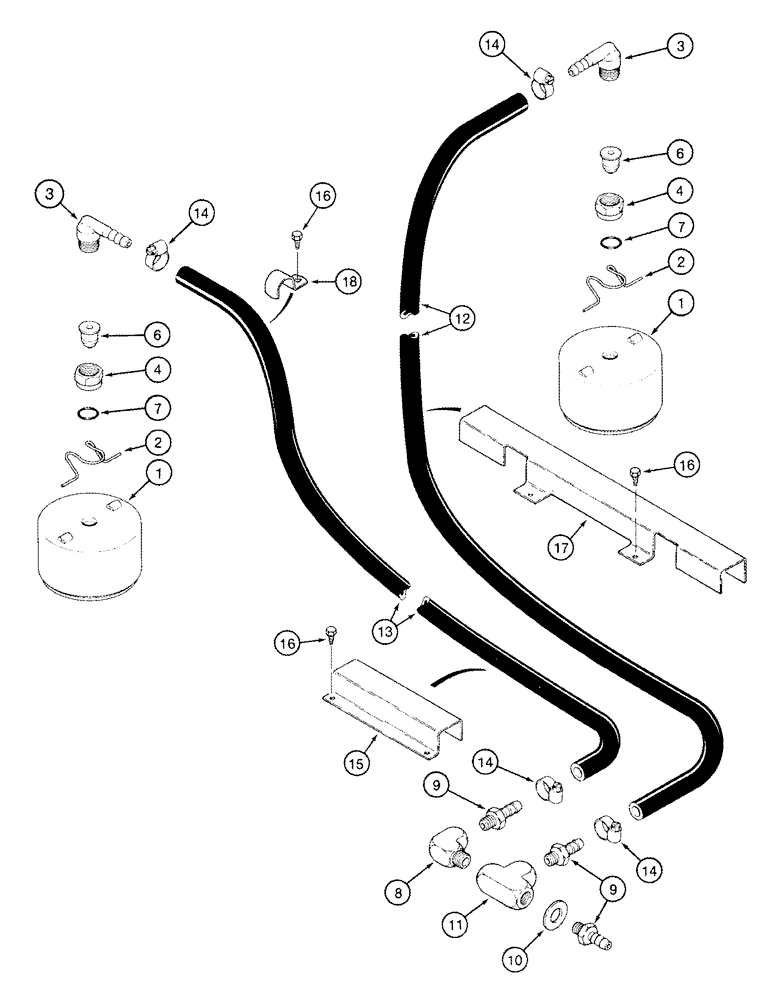

Запчасти Case IH 420 (09A-25) - WATER SYSTEM IN DRUM (13) - PICKING SYSTEM

1

1338549C1

COVER

Water Distribution

2шт.

2

1338960C2

SPRING CLIP

Retaining

2шт.

3

144390A1

ELBOW

Barbed

2шт.

4

1339129C1

NUT

Nozzle

2шт.

6

1984326C2

NOZZLE

No. 6 Flow Rate, Front

1шт.

6

1984327C2

NOZZLE

No. 3 Flow Rate, Rear

1шт.

6

1990346C1

NOZZLE

No. 8 Flow Rate, Service Only

1шт.

6

1990347C1

NOZZLE

No. 4 Flow Rate, Service Only

1шт.

6

1990348C1

NOZZLE

No. 2 Flow Rate, Service Only

1шт.

7

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

8

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

9

217-114

FITTING,3/8" Hose x 1/8" NPTF, Barbed

Straight

3шт.

10

495-81009

WASHER,.469" x 1" x .120"

1шт.

11

217-10

TEE,1/8" - 27 NPTF Fem

Pipe

1шт.

12

1338767C2

HOSE,6.4 mm ID x 1143.00 mm, SAE 30R6 OR 30R7

1143 mm (45"), Front, Cut From 1338159CX

1шт.

13

1338768C2

HOSE

508 mm (20"), Rear, Cut From 1338159CX

1шт.

14

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable

16шт.

15

1990402C1

GUARD

Short

1шт.

16

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

5шт.

17

1990401C1

GUARD

Long

1шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.
