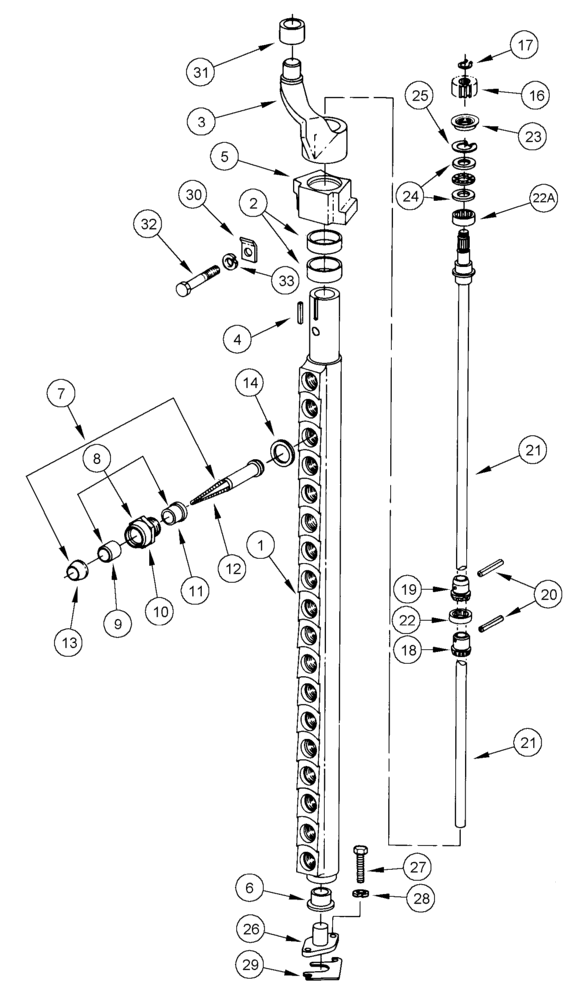

Запчасти Case IH 420 (09A-22) - PICKER BARS AND SPINDLES (13) - PICKING SYSTEM

362085A1

BAR ASSY.

Right Hand, 0.090 mm, Inc. 1 - 25

12шт.

371194A1S

BAR ASSY.

Right Hand, 0.050 mm, If Equipped

12шт.

362085A1R

BAR ASSY.

Remanufactured

1шт.

362085A1C

BAR ASSY.

1шт.

362084A1

BAR ASSY.

Left Hand, 0.090mm, Inc. 1 - 25 (Not Shown)

12шт.

371193A1

BAR ASSY.

Left Hand, 0.050 mm, If Equipped (Not Shown)

12шт.

362084A1R

BAR ASSY.

Remanufactured

1шт.

362084A1C

BAR ASSY.

1шт.

1

1982393C1

BAR

Right Hand

1шт.

1a

1982392C1

BAR

Left Hand (Not Shown)

1шт.

2

223634C1

SLEEVE,41.93mm ID x 43.98mm OD x 21.5mm L

2шт.

3

216505C3

ARM

Right Hand

1шт.

3a

216504C3

ARM

Left Hand (Not Shown)

1шт.

4

Q5024

KEY,3/16" Sq x 1", Par

1шт.

5

1982394C2

BEARING,48.97 mm ID x 39 mm

1шт.

238-6132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 6, 90 Duro

2шт.

6

669815R3

BUSHING,19.16mm ID x 28.78mm OD x 20.62mm L

1шт.

7

364348A1B

SPINDLE

Complete Assembly

18шт.

7

364348A1

MANDREL

0.090 Chrome, Right Hand, Inc. 8 - 13

18шт.

Subbed To Components

1шт.

364348A1R

SPINDLE

Remanufactured

1шт.

364348A1C

SPINDLE

1шт.

7

364883A1

SPINDLE

0.050 Chrome, Right Hand, Inc. 8 - 13

18шт.

364883A1R

SPINDLE

Remanufactured

1шт.

364883A1C

SPINDLE

1шт.

7a

364347A1

SPINDLE

0.090 Chrome, Left Hand, Inc. 8 - 13

18шт.

364347A1R

SPINDLE

Remanufactured

1шт.

364347A1C

SPINDLE

1шт.

7a

364882A1

SPINDLE

0.050 Chrome, Left Hand, Inc. 8 - 13

18шт.

364882A1R

SPINDLE

Remanufactured

1шт.

364882A1C

SPINDLE

1шт.

8

364768A1

HOLDER

Right Hand, Inc. 9 - 11

1шт.

8a

364767A1

HYD CONNECTOR

Left Hand, Inc. 9 - 11

1шт.

9

1994863C1

BUSHING,12.72mm ID x 15.27mm OD x 19mm L

1шт.

10

NSS

NOT SOLD SEPARAT

HOLDER, Right Hand

1шт.

10a

NSS

NOT SOLD SEPARAT

HOLDER, Left Hand

1шт.

11

1994864C1

BUSHING,12.72mm ID x 21mm OD x 15mm L

1шт.

12

346042A1

SPINDLE

0.090 Chrome, Right Hand

1шт.

12

346040A1

SPINDLE

0.050 Chrome, Right Hand

1шт.

12a

346041A1

SPINDLE

0.090 Chrome, Left Hand

1шт.

12a

346039A1

SPINDLE

0.050 Chrome, Left Hand

1шт.

13

364607A1

SHIELD

1шт.

14

674980R2

SHIM,25.77mm ID x 31.75mm OD x 0.31mm Thk

(0.012")

1шт.

14

11264R

SHIM,25.77mm ID x 31.75mm OD x 0.2mm Thk

(0.008")

1шт.

14

1994989C1

SPACER

0.15 mm (0.006")

1шт.

14

202099C1

SPACER

0.10 mm (0.004")

1шт.

15

372070R91

BEARING ASSY,15.93mm ID x 28.32mm OD x 1.98mm W

1шт.

16

216584C3

GEAR

Spindle Drive Shaft

1шт.

17

100-1150

SNAP RING,#50, Ext

1шт.

371972A1

DRIVE SHAFT

Spindle Drive, Inc. 371982A1, 371981A1, 18 - 22

1шт.

371982A1

GEAR

Spindle Drive with Bearing and Pin, Inc. 18, 20, 21

5шт.

371981A1

KIT

Spindle Drive with Roll Pin. Inc. 19, 20

13шт.

18

10053RA

GEAR

Long

1шт.

19

10054RA

GEAR

Short

1шт.

20

38-1916

LOCK PIN,3.56mm OD x 25.4mm L, Coiled

1шт.

21

216578C3

SHAFT

1шт.

22

3139062R91

BEARING, NEEDLE,Needle, 22.21mm ID x 31.88mm OD x 9.53mm W

5шт.

22a

3139062R91

BEARING, NEEDLE,Needle, 22.21mm ID x 31.88mm OD x 9.53mm W

1шт.

23

1982364C1

SEAL,28.73mm ID x 36mm OD x 4.78mm Thk

1шт.

24

216581C1

THRUST WASHER,15.93mm ID x 28.32mm OD x 2.41mm Thk

2шт.

25

100-21112

SNAP RING,1.125", Int, #112

1шт.

26

214910C2

PIVOT

24шт.

27

20677

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

48шт.

28

92-11031

LOCK WASHER,5/16"

48шт.

29

1338189C1

SHIM,0.05mm Thk

0.05 mm (0.002")

1шт.

29

669817R1

SHIM,0.08mm Thk

0.08 mm (0.003")

1шт.

29

669818R1

SHIM,0.18mm Thk

0.13 mm (0.005")

1шт.

29

669819R1

SHIM,0.18mm Thk

0.18 mm (0.007")

1шт.

29

669820R1

SHIM,0.25mm Thk

0.25 mm (0.010")

1шт.

30

417515A2

RETAINER

Journal Bearing

24шт.

31

86948C1

ROLLER,34.93mm OD x 20mm L

24шт.

32

86900193

BOLT

3/8 x 2-3/4; 8

24шт.

33

492-11038

LOCK WASHER,3/8"

24шт.
