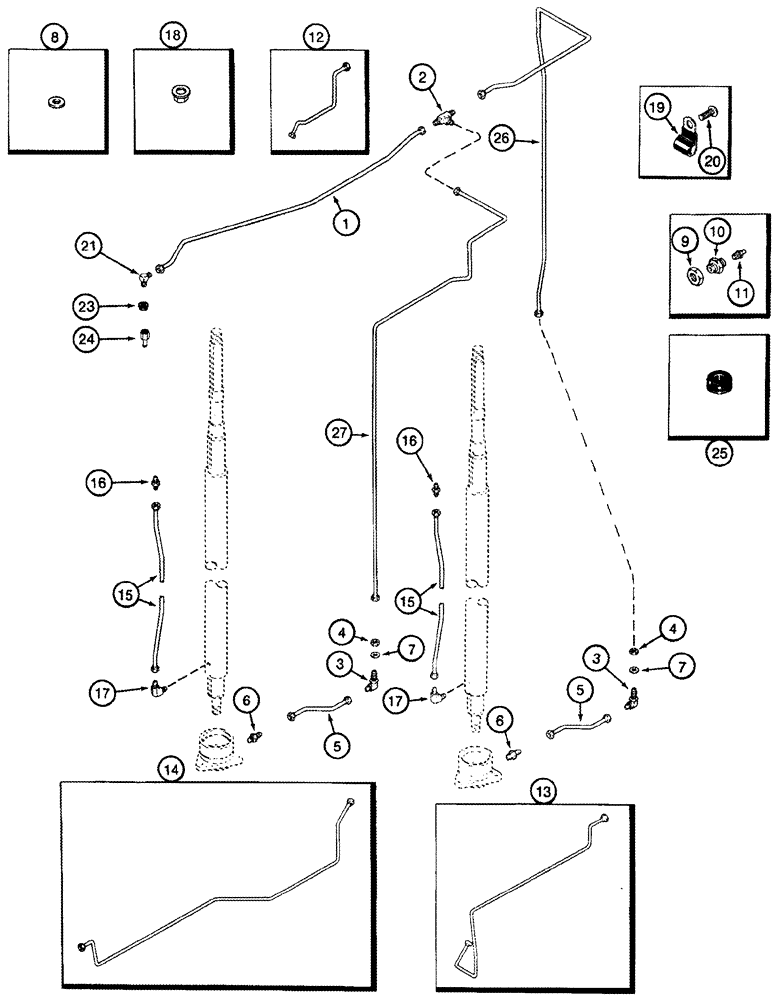

Запчасти Case IH 420 (09A-21) - DRUM GREASE SYSTEM (13) - PICKING SYSTEM

1

1984333C1

HYD TUBE

Rotor Grease Supply, Right Hand

1шт.

2

218-593

TEE,9/16"-18, 37 Degree

1шт.

3

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

4

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

5

1546332C2

TUBE,0.375" OD, 176.08 mm Length

Grease, Lower Rear

2шт.

6

122595A1

ADAPTER

3.81 mm orifice, Special

2шт.

7

495-81170

WASHER,0.59" ID x 0.94" OD x 0.02" Thk

2шт.

8

495-11059

WASHER,9/16"

1шт.

9

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

3шт.

10

1990056C1

FITTING

7/16 x 1/8 PT, Straight

3шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

12

1988702C1

HYD TUBE

Gear, Upper Front, Right Hand

1шт.

13

1988704C1

HYD TUBE

Gear, Lower Front, Right Hand

1шт.

14

1988706C2

HYD TUBE

Gear, Upper Rear, Right Hand

1шт.

15

1984408C1

HYD TUBE,0.375" OD

Rotor Grease

2шт.

16

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

2шт.

17

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

2шт.

18

218-1254

LOCK NUT,Blkhd, 9/16"-18

Grease Inlet

1шт.

19

515-2148

CLAMP,3/16", Insul, 1/4" Bolt

2шт.

20

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

2шт.

21

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

1шт.

23

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

24

217-180

FITTING,3/8" Hose Barb x 1/4" Female NPTF

Straight

1шт.

25

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

3/8 ID, Rubber

2шт.

26

113687A1

HYD TUBE

Rotor, Right Hand Front Lubrication Supply

1шт.

27

113682A1

HYD TUBE,0.375" OD, 927, 352 mm Length

Rotor, Right Hand Rear Lubrication Supply

1шт.
