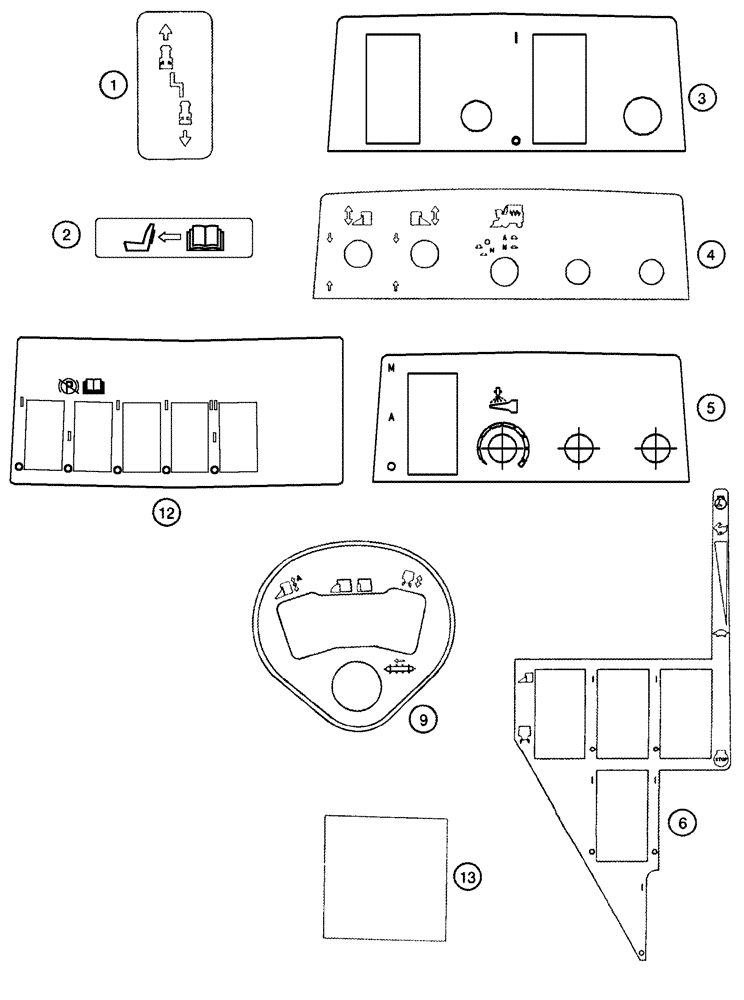

Запчасти Case IH 420 (09F-23) - DECALS - CAB (12) - CHASSIS

235156A1

DECAL

Inc. 1 - 6, Control Console, Right Hand, Serial Range: -Y8T013001

1шт.

87730728

PLASTIC

Inc. 1 - 6, Control Console, Right Hand, Start Serial: Y8T013001

1шт.

1

NSS

NOT SOLD SEPARAT

DECAL, Console Propulsion

1шт.

2

NSS

NOT SOLD SEPARAT

DECAL, Console Operators Manual

1шт.

3

NSS

NOT SOLD SEPARAT

DECAL, Console Drum Service

1шт.

4

NSS

NOT SOLD SEPARAT

DECAL, Console Drum

1шт.

5

NSS

NOT SOLD SEPARAT

DECAL, Console Moistener

1шт.

6

NSS

NOT SOLD SEPARAT

DECAL, Console Drum Lube

1шт.

6a

144382A1

WARNING DECAL

Operators manual, console, European Models (Not Shown)

1шт.

7

238211A1

DECAL

Gauge And Warning, Instrument Panel (Not Shown)

1шт.

See Figure 09F-20, REF 8

1шт.

8

123720A1

DECAL

Keypad (Not Shown)

1шт.

See Figure 09F-20, REF 9

1шт.

9

144113A2

DECAL

Propulsion Control Lever Cover Plate

1шт.

10

120332A1

DECAL

Directional Arrows (Not Shown)

1шт.

See Figure 9F-19, REF 16

1шт.

12

87404881

DECAL

Overhead Switch

1шт.

13

224636A1

DECAL

Connector Cover, Cab Exterior

1шт.
