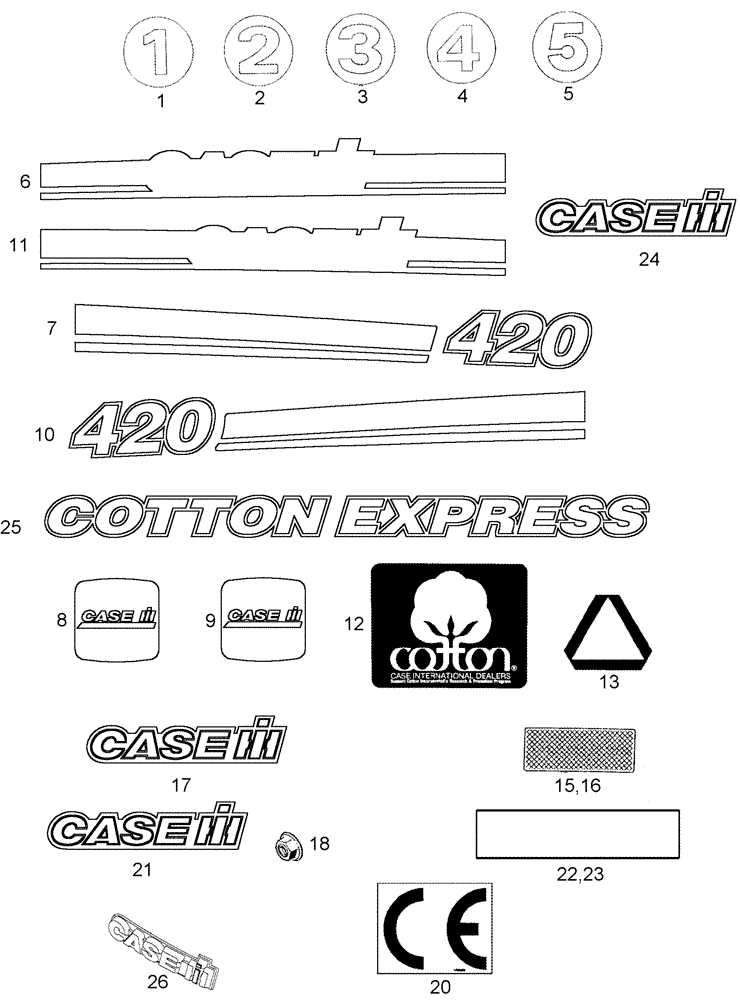

Запчасти Case IH 420 (09F-18) - DECALS (12) - CHASSIS

1

1288934C1

DECAL

Number '1' Drum

1шт.

2

1288935C1

DECAL

Number '2' Drum

1шт.

3

1288936C1

DECAL

Number '3' Drum

1шт.

4

1288937C1

DECAL

Number '4' Drum

1шт.

5

1545960C1

DECAL

Number '5' Drum

1шт.

6

87563609

DECAL

Stripe, Basket Door, Rear

1шт.

7

87563610

DECAL

Stripe, Right Hand Basket Wall, Front

1шт.

8

87679098

DECAL,37mm x 70mm

Case IH

4шт.

9

87679108

DECAL

Case IH Engine Badge

1шт.

10

87563608

DECAL

420, Basket Door, Front

1шт.

11

87563611

DECAL

420, Right Hand Basket Wall, Rear

1шт.

12

87142C2

DECAL

Cotton Logo

2шт.

13

311858A1

DECAL

SMV Emblem

1шт.

15

1284365C2

REFLECTOR

Amber

1шт.

16

1284374C1

REFLECTOR,Reflector Red

Red

1-2шт.

17

87557439

DECAL,56mm x 233mm

Case IH, Outside Drums, 233 x 56 mm

2шт.

18

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

20

176262A1

DECAL

60 mm, CE Symbol, Spanish Language, European Models

1шт.

313050A5

PACKAGE

Spanish Language, European Models, 4 Row and 5 Row - All, Order Components

1шт.

See Figure(s) 09F-19 - 09F-22

1шт.

21

87557438

DECAL,118mm x 500mm

Case IH, Rear Basket Wall, 500 x 118 mm

1шт.

22

311863A1

REFLECTOR

Red, 50 x 230 mm

1шт.

23

311865A1

REFLECTOR

Orange, 50 x 230 mm

1шт.

24

87556588

DECAL

Case IH Logo, 1012 x 211 mm

2шт.

25

87563618

DECAL

Cotton Express

2шт.

26

87557775

EMBLEM

Medallion, Case IH, Above Cab Windshield

1шт.
