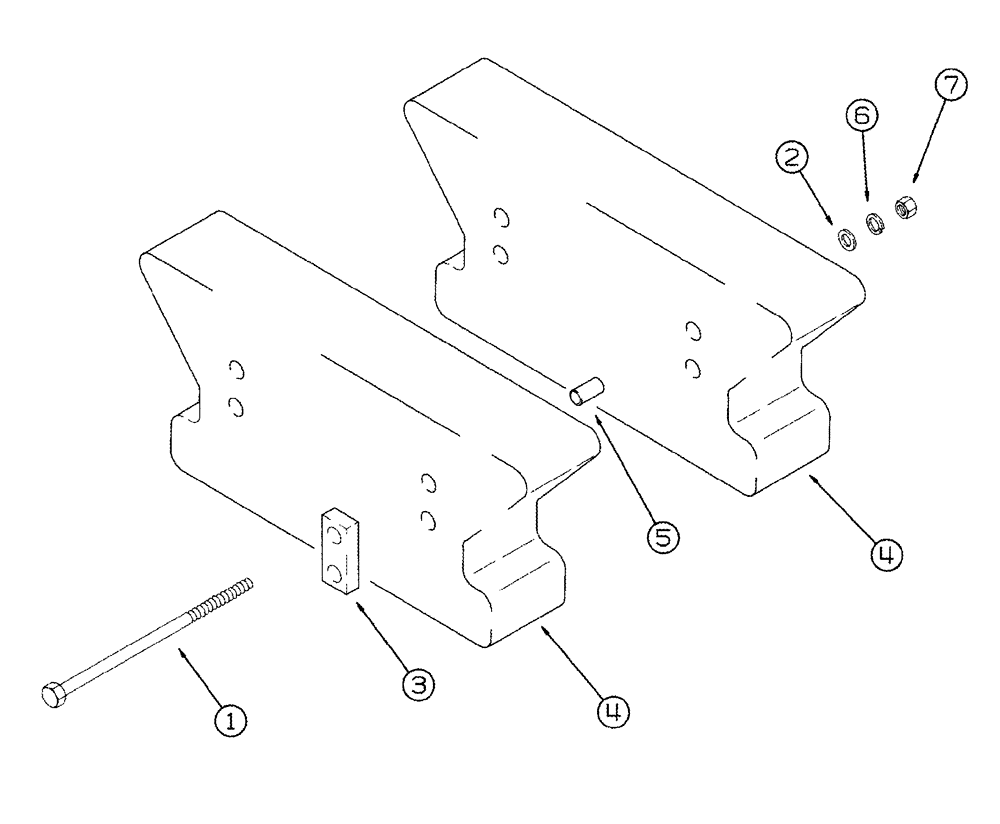

Запчасти Case IH 420 (09F-17) - WEIGHTS AND BRACKETS (12) - CHASSIS

1

143287A1

BOLT,Hex, 1" - 8 x 440mm

If Used

4шт.

5 Row Narrow

1шт.

1

426-16192

BOLT,Hex, 1" - 8 x 12", Gr 8

4шт.

4 Row Wide

1шт.

2

496-21106

WASHER,1 1/16" x 2" x .209", HDN

4шт.

3

124621A1

LARGE PLATE

PLATE, LARGE Weight Support

2шт.

4

124620A1

WEIGHT

Rear Frame

1-2шт.

5

607783R1

SPACER,1" Pipe x 1850"

4шт.

6

492-11100

LOCK WASHER,1"

4шт.

7

329-1016

NUT,1"-8, G8

4шт.
