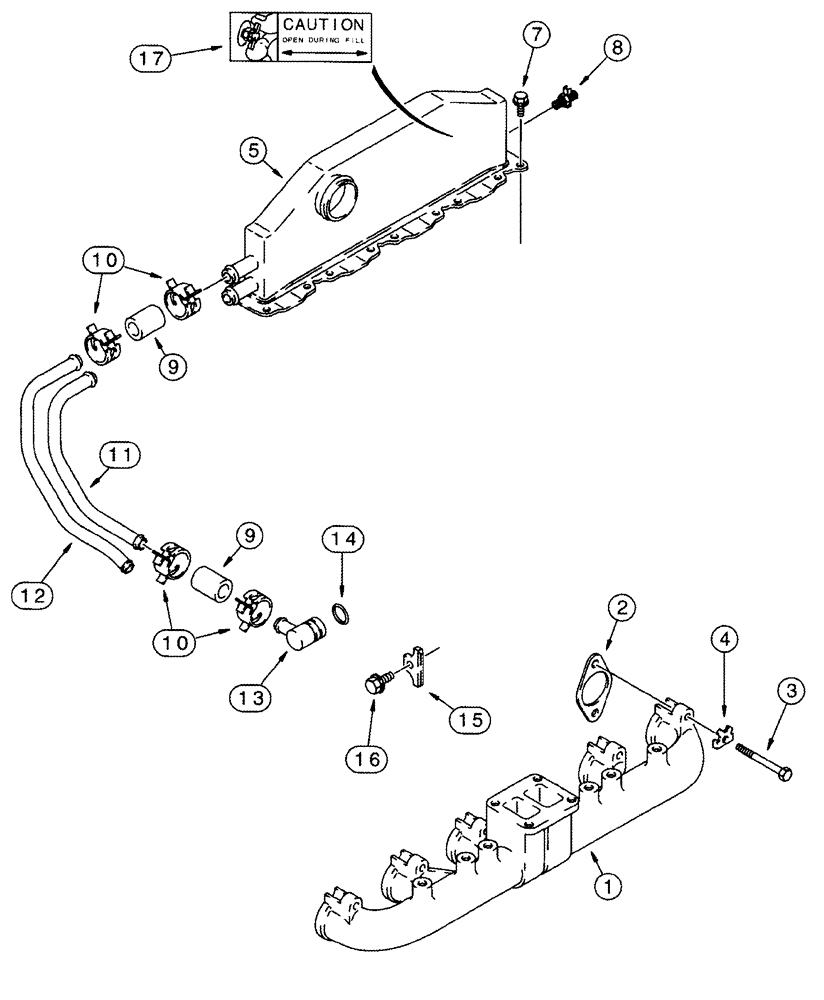

Запчасти Case IH 420 (02-06) - MANIFOLDS (01) - ENGINE

1

J932180

MANIFOLD

Exhaust

1шт.

2

J932063

MANIFOLD GASKET,1.78mm Thk

6шт.

3

J929537

BOLT

12шт.

4

J914708

LOCKING PLATE

Intake

12шт.

5

J924731

AFTERCOOLER

1шт.

6

J823494

SEALANT

3 oz (Not Shown)

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

18шт.

8

J909394

COCK, DRAIN

1шт.

9

J918611

HOSE,18.50 mm ID x 63.00 mm

4шт.

10

J937613

HOSE CLAMP

8шт.

11

J906436

TUBE,19.05 mm OD x 385.3 mm L

Inlet, Aftercooler

1шт.

12

J908402

TUBE,19.05 mm OD

Outlet, Aftercooler

1шт.

13

J917394

ELBOW

2шт.

14

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

15

J906439

PLATE

1шт.

16

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

17

J910778

DECAL

1шт.
